TINYSINE TSA2600, 2 x 160W Bluetooth 5.0 Multipoint Audio Am

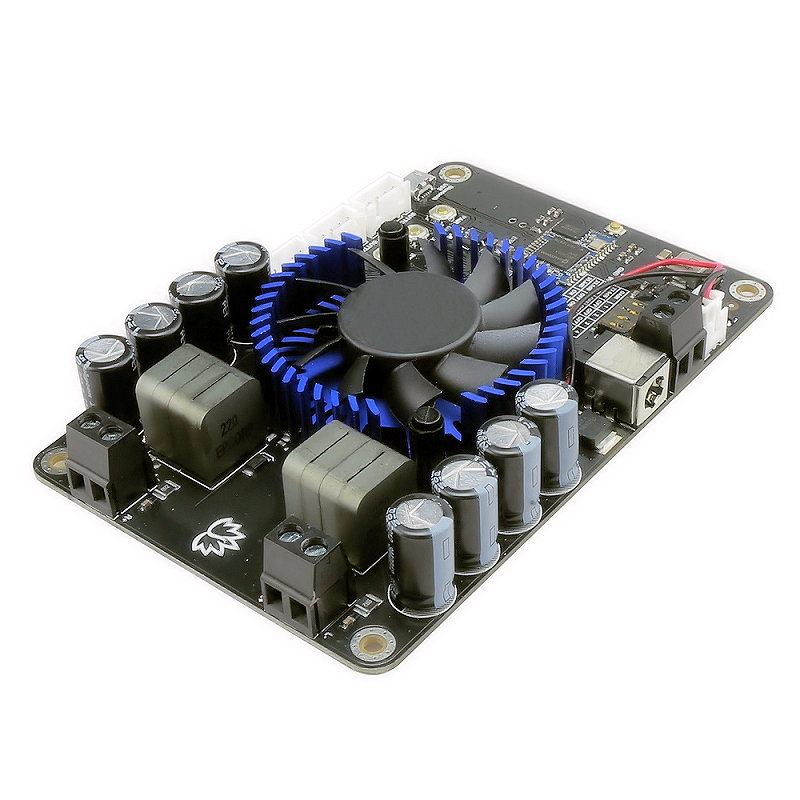

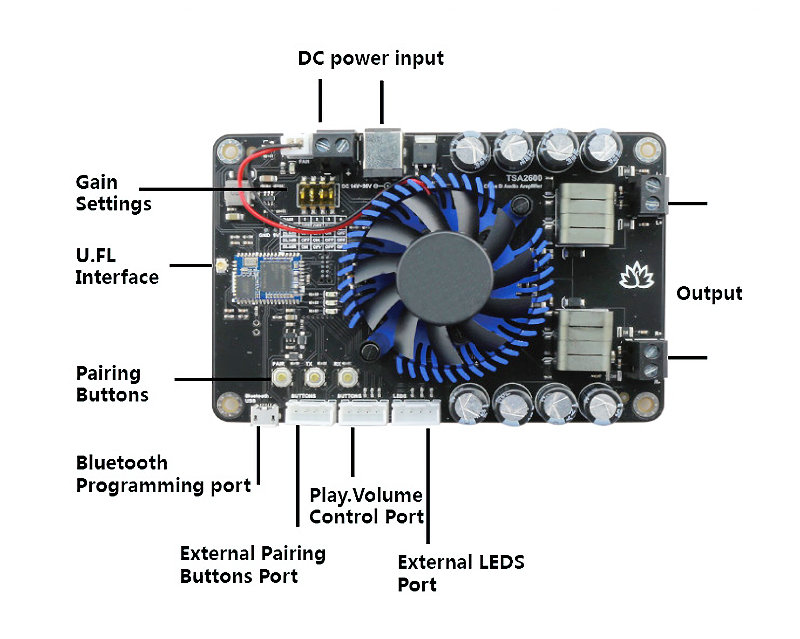

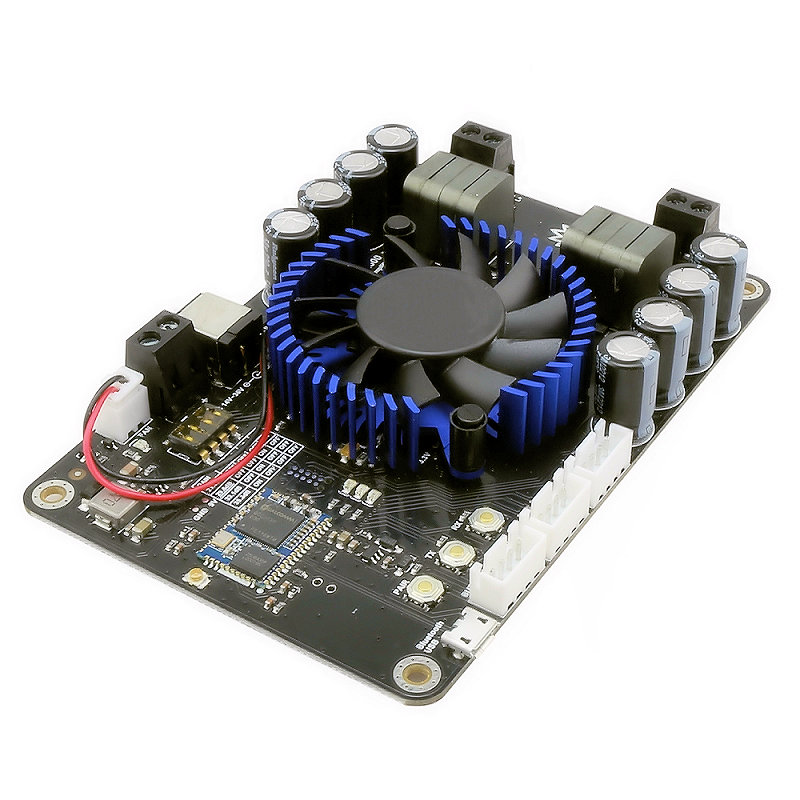

TSA2600 is a 2x160W Stereo Bluetooth 5 multipoint audio amplifier board. It has perfect class-D architecture (based on TDA7498E) and each channel has maximum 160W power output. Both of the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC14V-36V power supply. it can be used to drive any 4Ω or 8Ω passive speakers. The highlight point is BT 5 integrated. You can have many TSA2600 boards paired and work together. TSA2600 can remember the pairing info. You don't need to pair them each time after you turn the amplifier board on. This makes it possible to build a wireless surround sound system by using the TSA2600. If you only use one TSA2600, it can work as a common Bluetooth amplifier board. Power the amplifier board. Double click PAIR button to set the board into Pairing mode. Use your phone or PC, etc. to search for a new Bluetooth device. The module will appears as "TSA2600". You don't need a PIN, pair it and then you can play music.
