ELTIM RC-2 On/off control / inrush current limiter Modul

Wird mit eine einfache 230Vac Schalter aktiviert. 75x48x20mm

In entwicklung

Hersteller: ELTIM
Artikelcode: RC2

0 Sterne in 0 Bewertungen Schreiben Sie eine Rezension

Wir müssen es bestellen!

Menge

P R E L I M I N A R Y

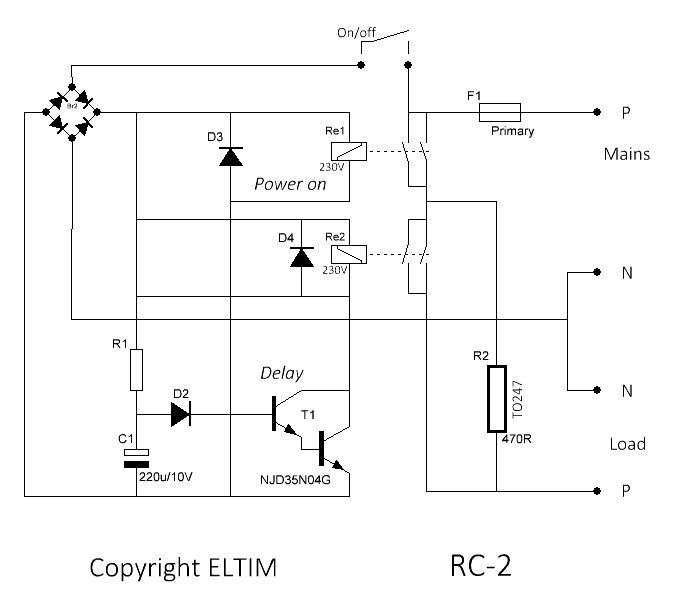

This module has two functions in one:

It is a on/off control unit, activated by any 230Vac suitable switch..
It is an inrush current limiter, preventing large inrush currents caused by large toriodal transformers

and high valued (uF) power supply capacitors.

Several parts will have a way longer life due to preventing of these high currents.

Immediatelly a first relay comes up and via a 470R/100W TO247 resistor feeding the large power supply.

This resistor prevents overload of regular on/off switches, rectifiers (charging large elco's), etc.

After about one second the other relay comes in, shortcutting this series resistor.

There is a primary fuse on board. The value can be much lower compared to circuits which have

to cope with inrush currents >3-5 higher than regular. Lower fuse value is much safer !

Since only the relays currents are flowing through the on/off switch, it can be a simle 230Vac version..
