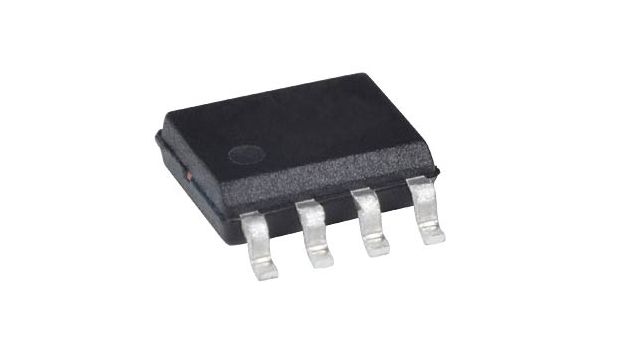

THAT 1240S08, balanzierter Linien Empfänger, 0dB, SO8

€ 4,69 *Preise inkl. MwSt. € 3,88 ohne MwSt. €

Hersteller: THAT
Artikelcode: THAT1240S08

0 Sterne in 0 Bewertungen Schreiben Sie eine Rezension

Wir müssen es bestellen!

Menge

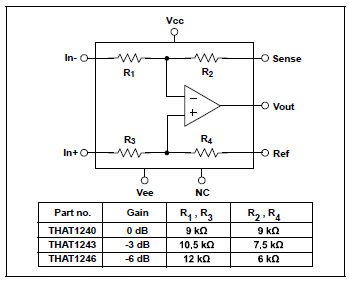

The THAT 1240-series of precision differential amplifiers was designed primarily for use as balanced line receivers for audio applications.

Gains of 0 dB (1240), ±3 dB (1243), and ±6 dB (1246) are available to suit various applications requirements.

These devices are laser trimmed in wafer form to obtain the precision resistor matching needed for high CMR performance and precise gain.

Manufactured in THAT Corporation’s proprietary complementary dielectric isolation (DI) process, the THAT 1240-series provides the sonic benefits of discrete designs with the simplicity, reliability, matching, and small size of a fully integrated solution.

All three versions of the part typically exhibit 90 dB of common-mode rejection.

With 12 V/μs slew rate, >8.6 MHz bandwidth, and 0.0006 % THD, these devices are sonically transparent.

Current consumption is typically a low 2 mA.

Both surface-mount SO8 and DIP8 packages are available.

The THAT 1246 is pin-compatible with the TI INA137 and Analog Devices SSM2143, while the THAT 1240 is pin-compatible

Eigenschaften
