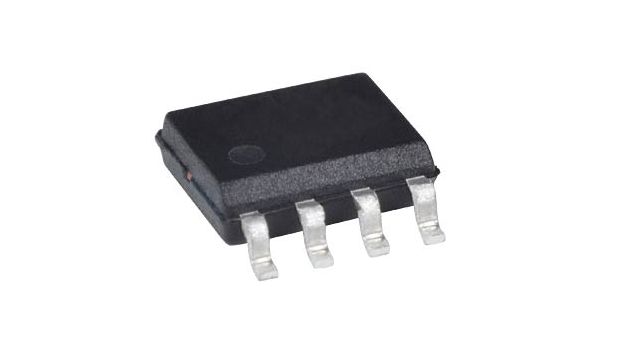

THAT 2181CS08, BLACKMER. VCA, -90/+30dB (0.02% THD), SO8

€ 15,75 *Preise inkl. MwSt. € 13,02 ohne MwSt. €

Hersteller: THAT
Artikelcode: THAT2181CS08

0 Sterne in 0 Bewertungen Schreiben Sie eine Rezension

Wir müssen es bestellen!

Menge

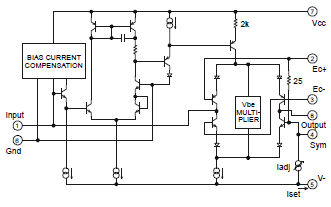

THAT 2181 Series integrated-circuit voltage controlled amplifiers (VCAs) are very highperformance current-in/current-out devices with two opposing-polarity, voltage-sensitive control ports.

They offer wide-range exponential control of gain and attenuation with very low signal distortion.

The parts are selected after packaging based primarily on after-trim THD and control-voltage feedthrough performance.

The VCA design takes advantage of a fully complementary dielectric isolation process which offers closely matched NPN/PNP pairs. This delivers performance unobtainable through any conventional process, integrated or discrete.

The parts are available in three grades, allowing the user to optimize cost vs. performance.

2181 series is pin compatible with 2150/2180 series.

Both 8-pin single-in-line (SIP) and surface mount (SO) packages are available.
