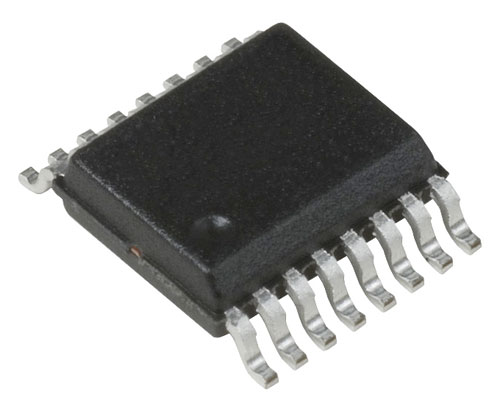

THAT 4315Q16, Analog Engine, dynamische Processor, QSOP16

€ 5,59 *Preise inkl. MwSt. € 4,62 ohne MwSt. €

Hersteller: THAT
Artikelcode: THAT4315Q16

0 Sterne in 0 Bewertungen Schreiben Sie eine Rezension

Wir müssen es bestellen!

Menge

The THAT4315 is a single-chip Analog Engine® optimized for low-voltage, low-power operation.

Incorporating a high-performance voltage-controlled amplifier (VCA) and RMS-level sensor, the surface mount part is aimed at battery-operated audio applications such as wireless microphones, wireless instruments and in-ear monitors.

The 4315 operates from a single supply voltage down to +4.5Vdc, drawing only 1.6mA. This IC also works at supply voltages up to 16Vdc, making it useful in line-operated products as well.

The VCA is pre-trimmed at wafer stage to deliver low distortion without further adjustment.

The part was developed specifically for use as a companding noise reduction system, drawing from THAT’s long history and experience with dbx® technology for noise reduction. However, with 11 active pins, the part is extremely flexible and can be configured for a wide range of applications including single and multi-band companders, compressors, limiters, AGCs, de-essers, etc.

What really sets the 4315 apart is the transparent sound of its Blackmer® VCA coupled with its accurate true-RMS level detector.

The IC is useful in battery-powered mixers, compressor/limiters, ENG devices and other portable audio products.
