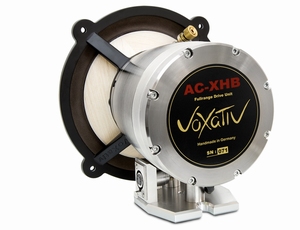

VOXATIV AC-Xhb, 8" Breitband Chassis. Preis/Sel. Paar

AC-XHB hat ein Feldspul, OFC Kupfer driver mit extra Neodymium Magnet. Leder surround

€ 86.200,00 MwSt% ist Länder abhängig! € 71.239,67 ohne MwSt. €

Hersteller: VOXATIV
Artikelcode: ACXhb

0 Sterne in 0 Bewertungen Schreiben Sie eine Rezension

Wir müssen es bestellen!

Menge

Description

The AC-XHB is a fieldcoil driver with added Neodymium magnet, a hybrid system. Additionally the coil housing is manufactured from a cobalt iron alloy (Permadur) that has special magnetic characteristics. With a value of max. 2.4T cobalt iron alloys have the highest saturation polarization of all the known soft magnetic alloys. Combined with a Neodymium ring magnet this unit delivers 24.000 Gauss in a 10mm magnet gap - the strongest magnet motor ever built.

The suspension of the AC-XHB is made from goat leather that will stand for a minimum of 20 years. Actually a stroke of 10mm is possible. This is combined with a cone made of real wood.

The audio impression is wonderful: All frequencies are reproduced naturally in balance, basses are stable and tight, mids are clear and differentiated and highs always remain transparent and soft.

As a power supply our battery based system is recommended.

Technical Data:

Frequency response 20 - 20.000 Hz

Efficiency max 110 dB in recommended housings

Capacity 50 W nom

Impedance [R] 10,7 Ohm

Complex impedance [Z] 16,0 Ohm

Resonance frequency 29,12 Hz

Mech. Q-factor [Qms] 3,1 / 9V

Electr. Q-factor [Qes] 0,4 / 9V

Q-factor [Qts] 0,354 / 9V

Equivalent volume [VAS] 148,0 Ltr.

Xmss 10 mm

Depth 166 mm

Install diameter 7,5" / 190 mm

Weight 14 kg

* A fullrange driver’s efficiency depends on the frequency response and does not follow a

standard calculation in the context of Thiele / Small parameters.
