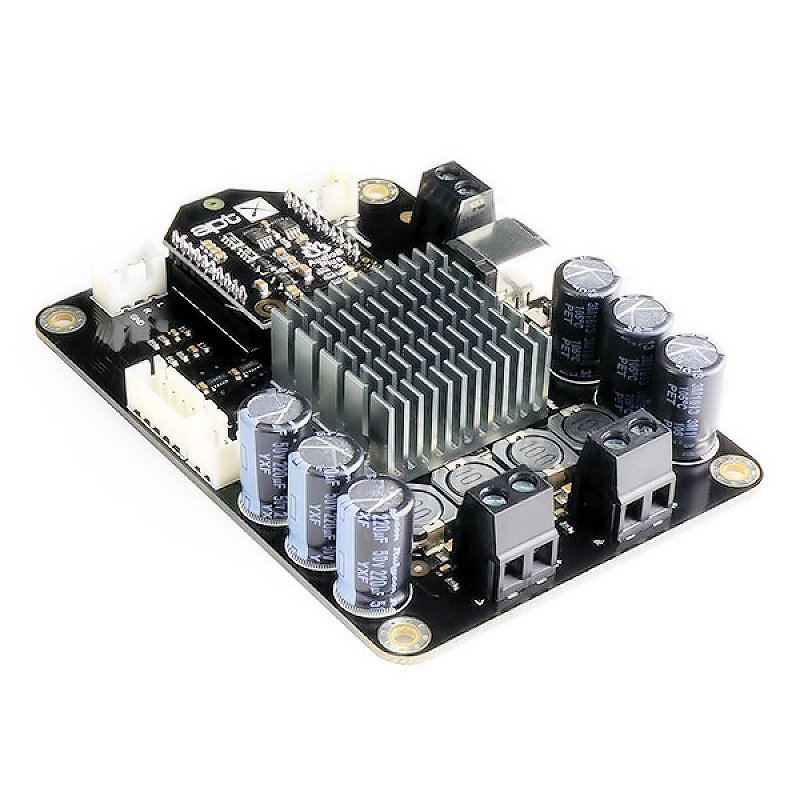

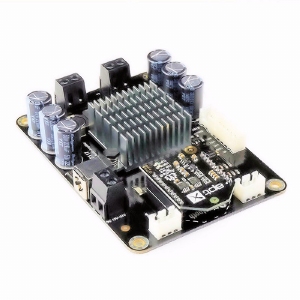

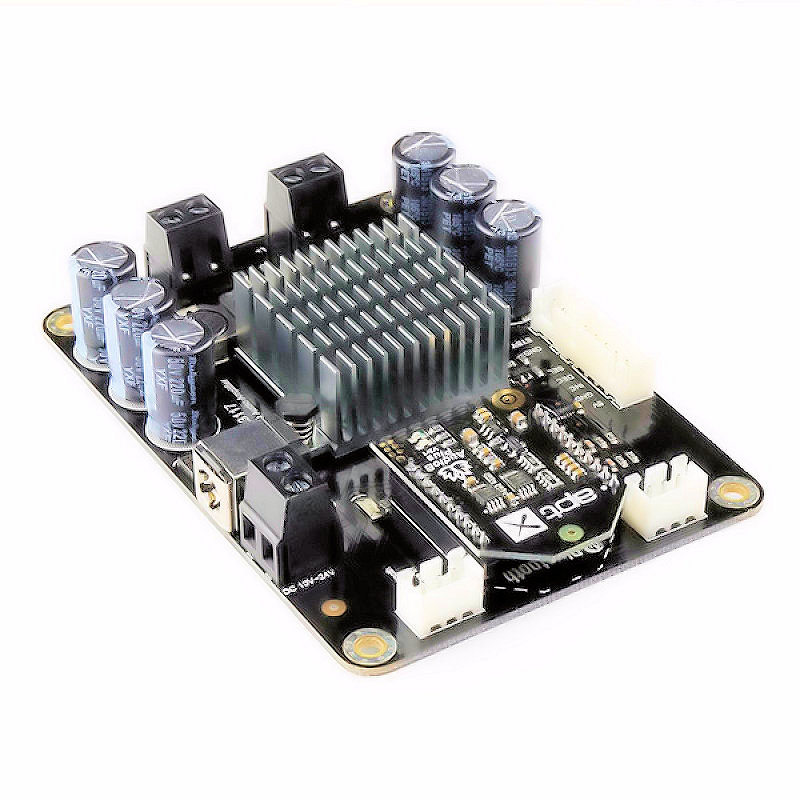

TINYSINE TSA3117B, 2 x 50W Class D Bluetooth Audio Amplifier

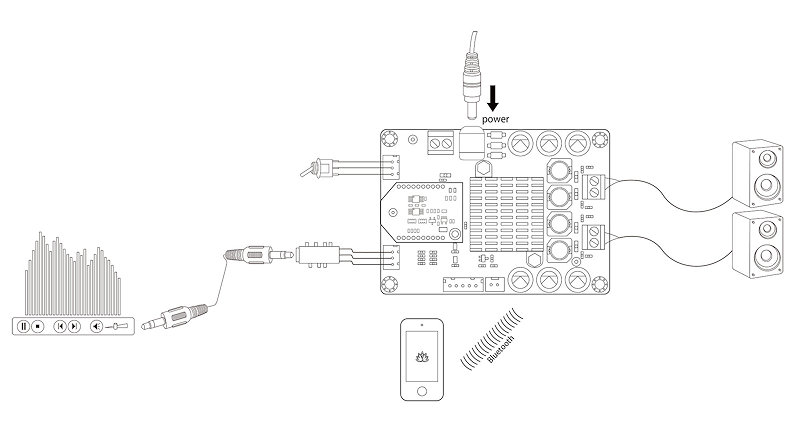

TSA3117B are designed for factory or DIY user. Bluetooth/LINE IN select switch and audio input port are designed as JST connectors. So, user can install this amplifier board in a box and connect an external switch and RCA/Mono plug to make their own audio amplifier. TSA3117B can also connect with our TSA1000 external audio volume control board. People can adjust the audio volume by rotating a real knob. TSA3117B is a 2x50W audio amplifier board with a new AudioB plus Bluetooth module that supports Apt-X. It has perfect class-D architecture (Texas Instruments TPA3116D2) and every channel has 50W power output. Both of the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC10V-24V power supply, it can be used to drive any 4Ω or 8Ω passive speakers. It's perfect for your Hi-Fi application. You may wish to pair with a mobile phone or a computer, etc.. Power the amplifier board. Use your phone or PC, etc. to search for a new Bluetooth device. The module will appear as "BT Speaker". You don't need a PIN, pair it and then you can play music. *BVC Port: BVC port can connect with our Audio volume controller to control the Bluetooth audio volume.
