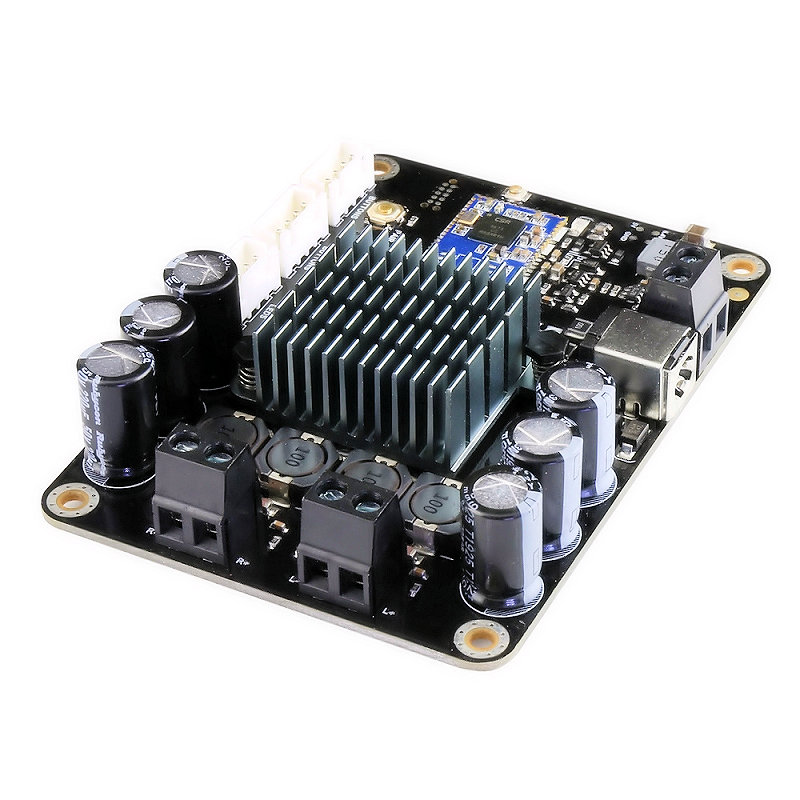

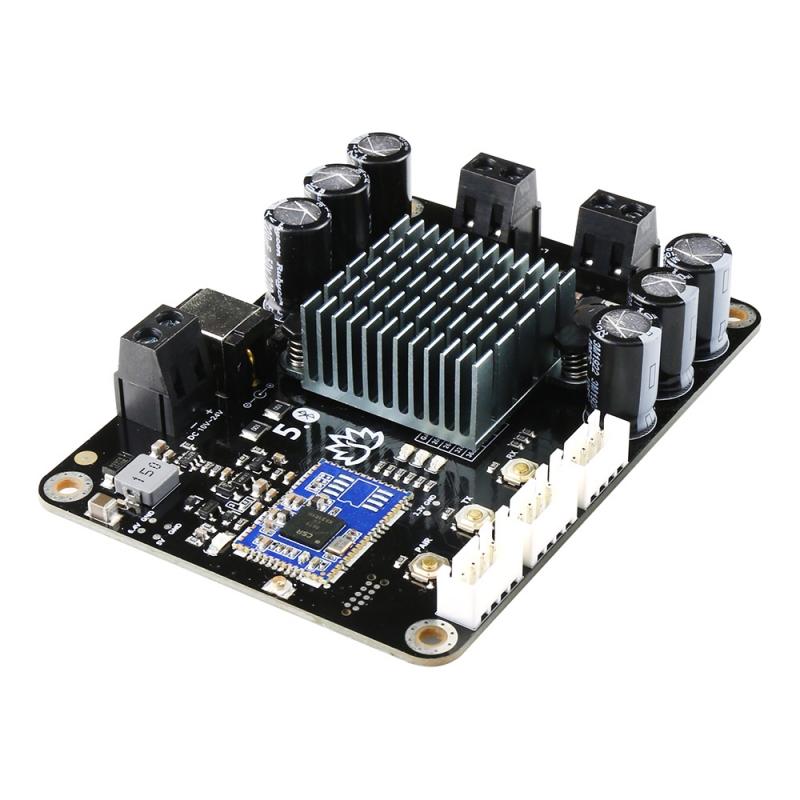

TINYSINE TSA2400, 2 x 50W Bluetooth 5.0 Multipoint Audio Amp

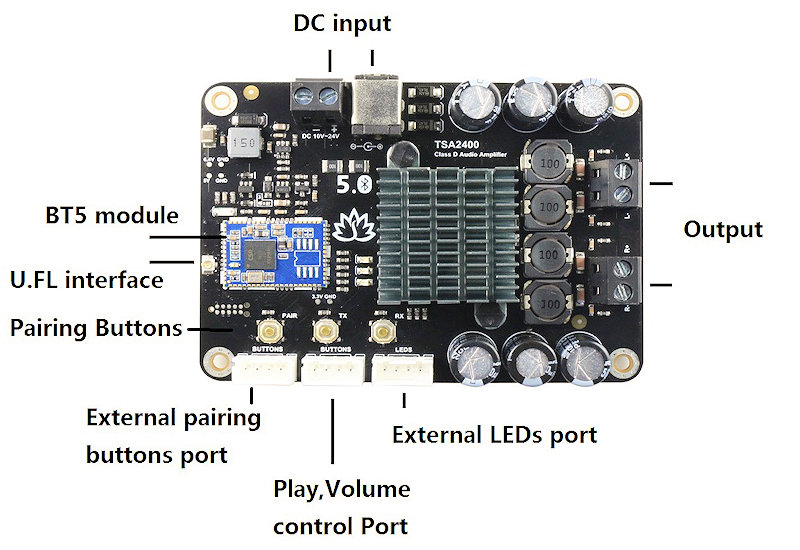

TSA2400 is a 2x50W Stereo Bluetooth 5 multipoint audio amplifier board. It has perfect class-D architecture (Texas Instruments TPA3116D2) and each channel has maximum 50W power output. Both of the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC10V-24V power supply. it can be used to drive any 4Ω or 8Ω passive speakers. The highlight point is BT 5 integrated. You can have many TSA2400 boards paired and work together. TSA2400 can remember the pairing info. You don't need to pair them each time you turn the amplifier board on. This makes it possible to build a wireless surround sound system by using the TSA2400. If you only use one TSA2400. It can work as a common Bluetooth amplifier board. Power the amplifier board. Double click PAIR button to set the board into Pairing mode. Use your phone or PC, etc. to search for a new Bluetooth device. The module will appears as "TSA2400". You don't need a PIN, pair it and then you can play music.
