TINYSINE TSA7551B, 1 x 200W Bluetooth+DSP Mono Audio Amplifi

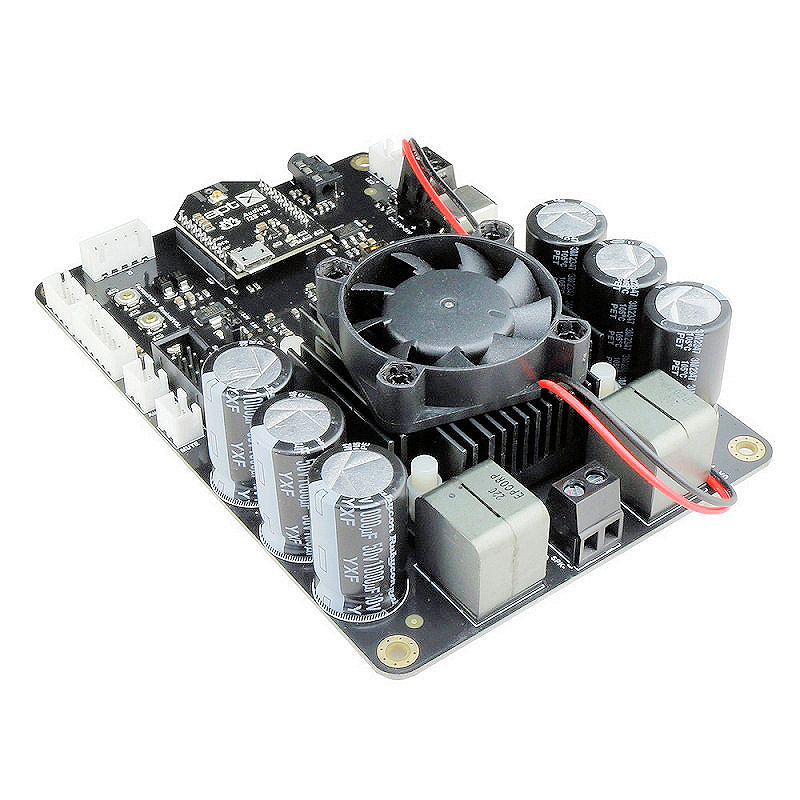

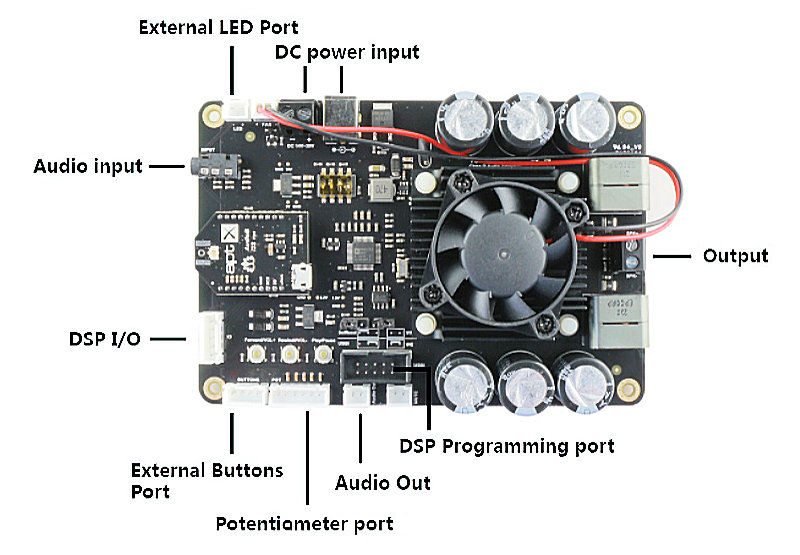

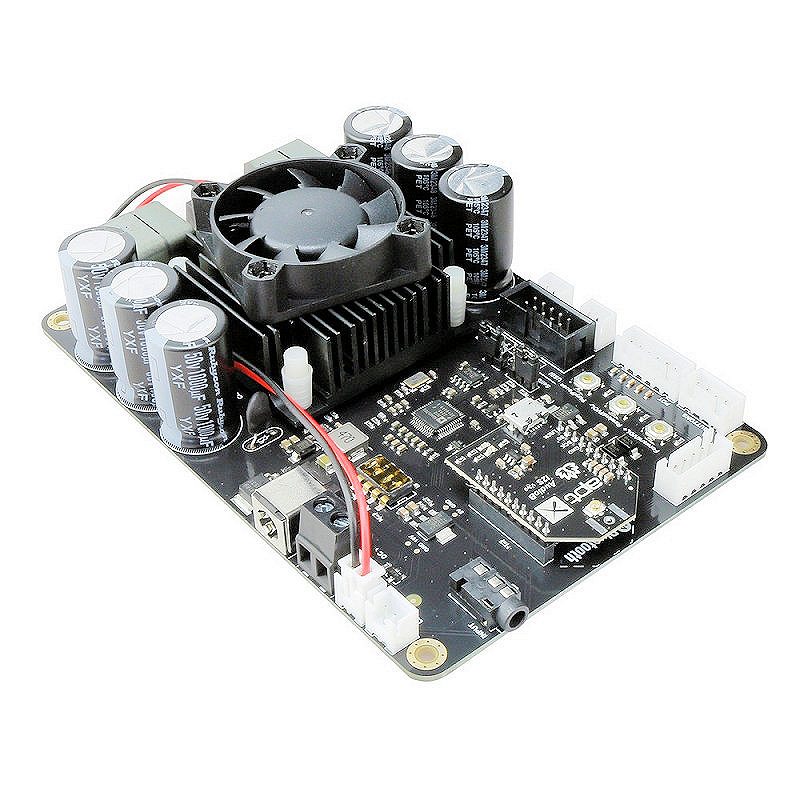

TSA7551B 200W Bluetooth+DSP mono amplifier board with an AudioB plus Bluetooth module that supports Apt-X. TSA7551B is a very flexible DSP/Amplifier combination board. It has perfect class-D architecture (based on ST TDA7498E) and the mono channel has 200W power output. This board can be powered by any DC14V-39V power supply. It can be used to drive any 3Ω,4Ω or 8Ω passive speakers. TSA7551B has a smart cooling system, the fan not working in normal case to reduce the noise. Only starts when the board overheat. TSA7551B has a Analog Devices ADAU1701 DSP chip on board. It has a default DSP program loaded. Customers can adjust the gain, bass, midrange and treble in the DSP program. It also has a debug port for Sigima Studio and user can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc... TSA7551B are Apt-X and TWS supported. Therefore, users can stream audio to 2 paired amplifier boards at the same time wirelessly.
