TINYSINE TSA8800B, 2 x 100W + 200W 2.1 Channels Bluetooth+DS

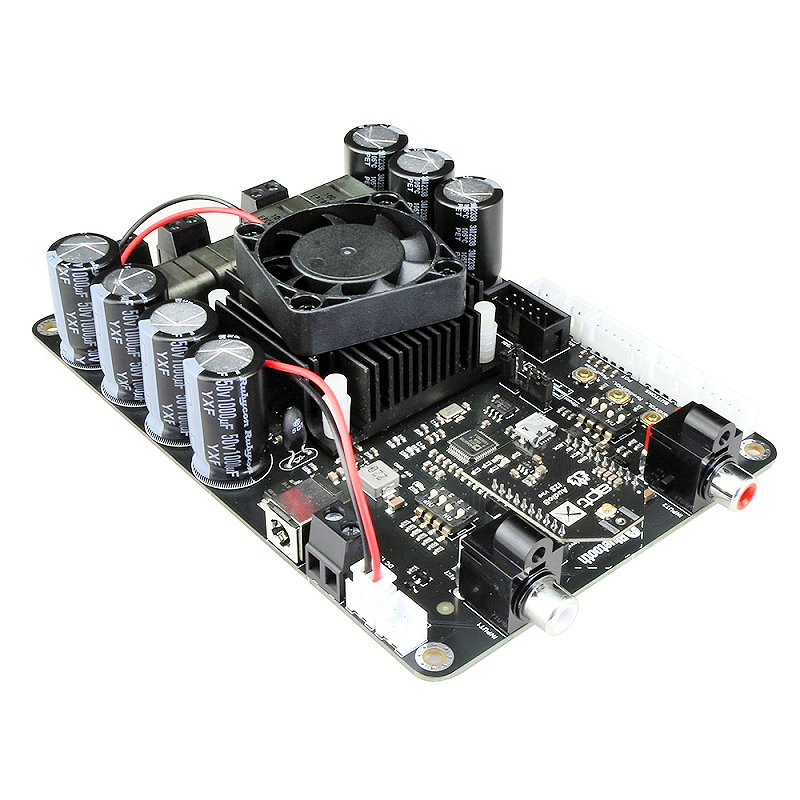

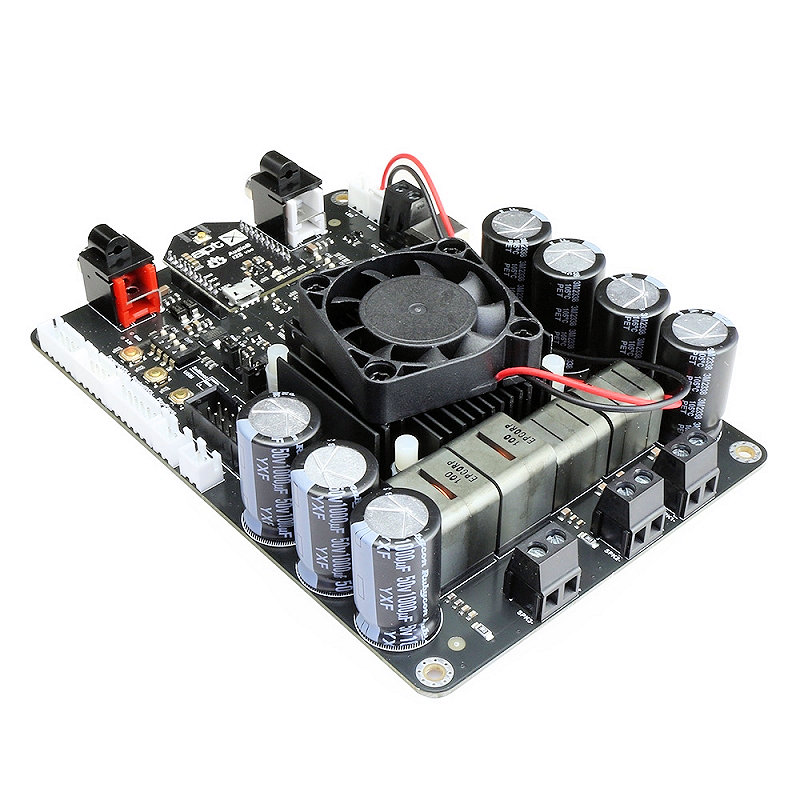

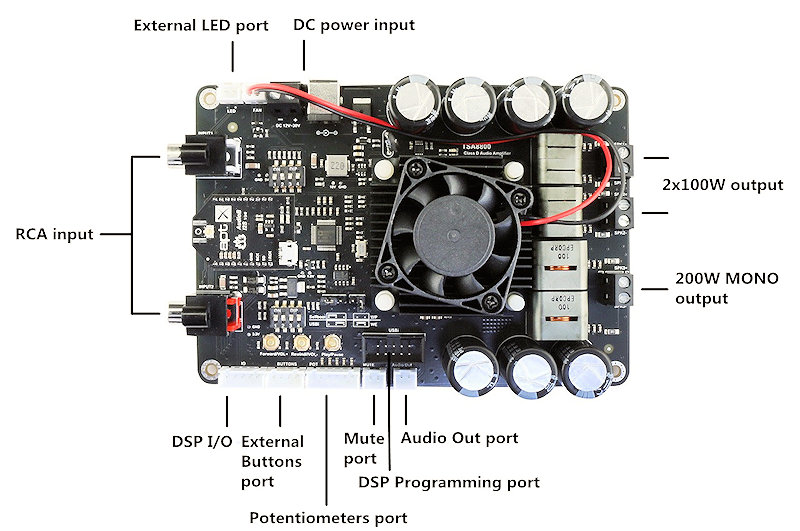

TSA8800B 2x100W + 200W 2.1 channels Bluetooth+DSP amplifier board with an AudioB I2S Bluetooth module that supports Apt-X. TSA8800B is a very flexible DSP/DAC/Amplifier combination board. It has perfect class-D architecture (based on Texas Instruments TPA3221) and 2 channels have 100W power output and another one channel has 200W power output. All the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-30V power supply. It can be used to drive any 4Ω or 8Ω passive speakers (subwoofer channel can drive 2Ω speaker). It's a 2.1 channels amplifier board. The channel for subwoofer is 200W mono output (users can change the DSP program to let it become right or left channel or mixed output). You can pair it with a mobile phone or a computer, etc.. Power the amplifier board. Use your phone or PC, etc. to search for a new Bluetooth device. The module will appear as "TSA8800B". You don't need a PIN, pair it and then you can play music. The highlight point is Analog Devices ADAU1701 DSP chip on board. User can set each channel audio tones separately. Apt-X and TWS supported. Therefore, users can stream audio to 2 paired amplifier boards at the same time wirelessly.
