TINYSINE TSA8802A, 2 x 100W 2 Channels DSP Audio Amplifier B

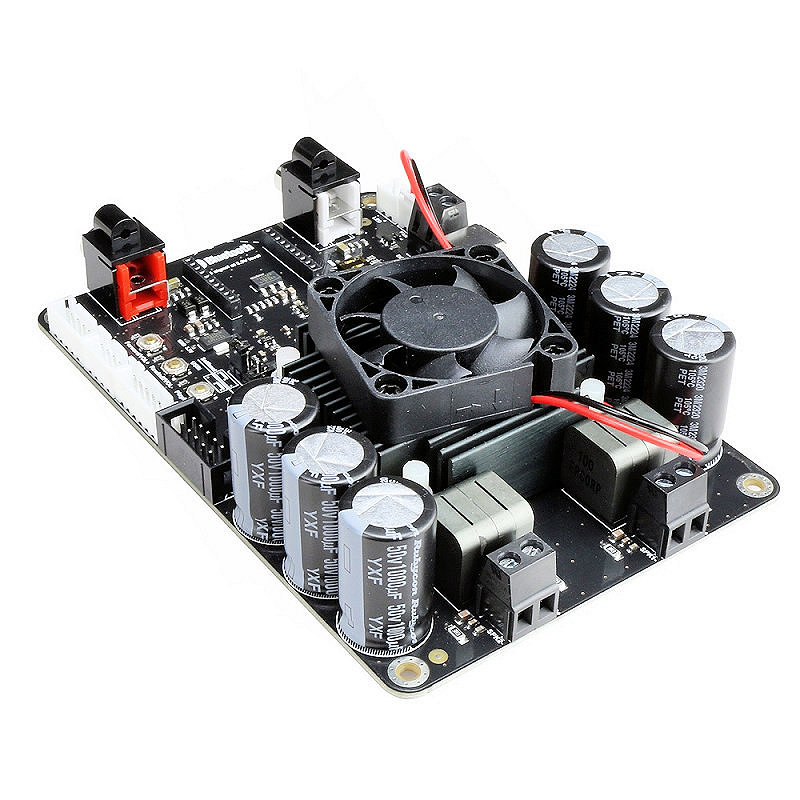

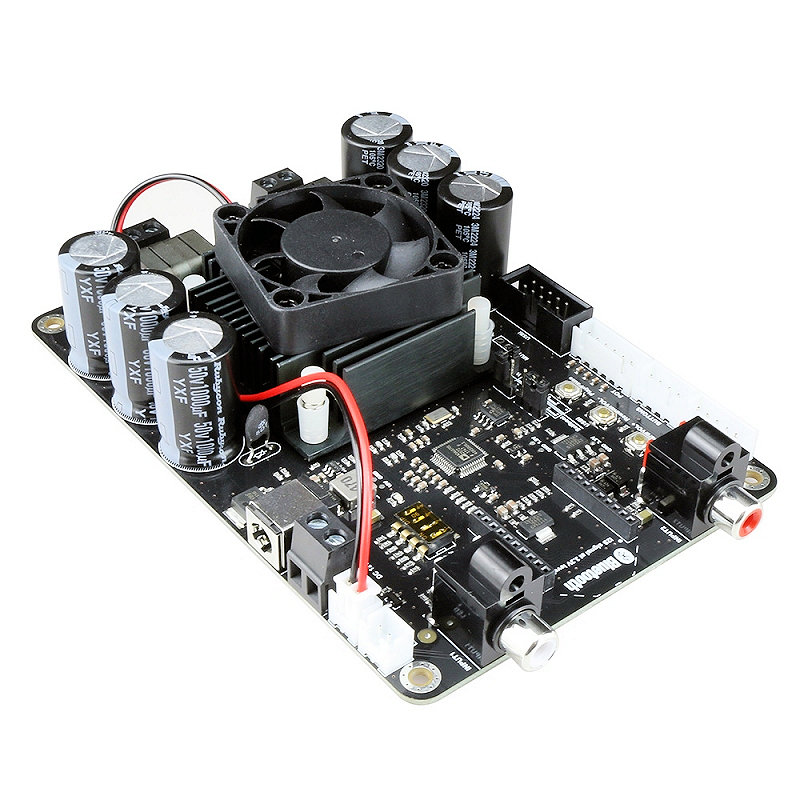

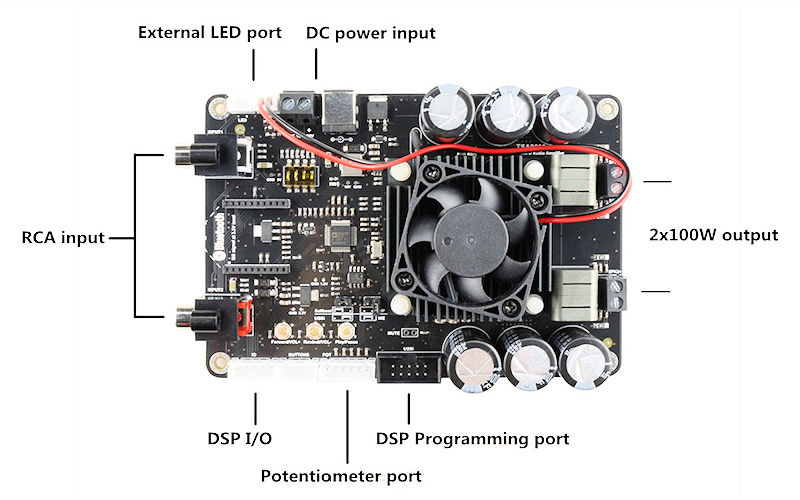

TSA8802A is a 2x100W 2 channels DSP amplifier board, it's a very flexible DSP/DAC/Amplifier combination board. It has perfect class-D architecture (based on Texas Instruments TPA3221) and 2 channels have 100W power output. All the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-30V power supply. It can be used to drive any 2Ω~8Ω passive speakers. The highlight point is Analog Devices ADAU1701 DSP chip on board. It has a default DSP program loaded. Customers can adjust the gain, bass, midrange and treble in the DSP program. It also has a debug port for Sigima Studio and users can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.

TSA8802A is the base board of TSA8802B. You can also plug a AudioB I2S module to the board, then it becomes a Bluetooth audio amplifier.
