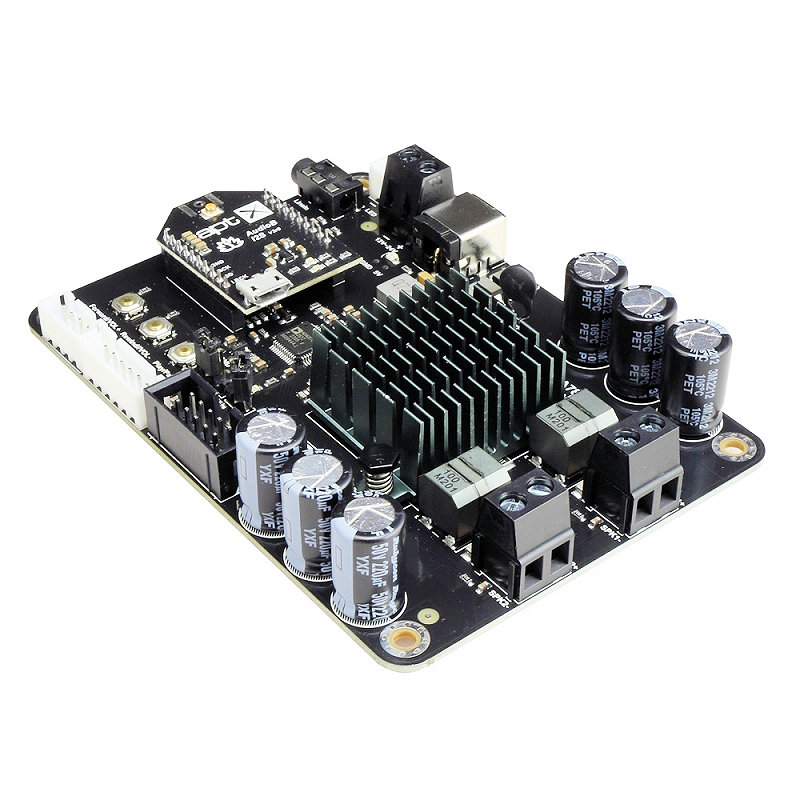

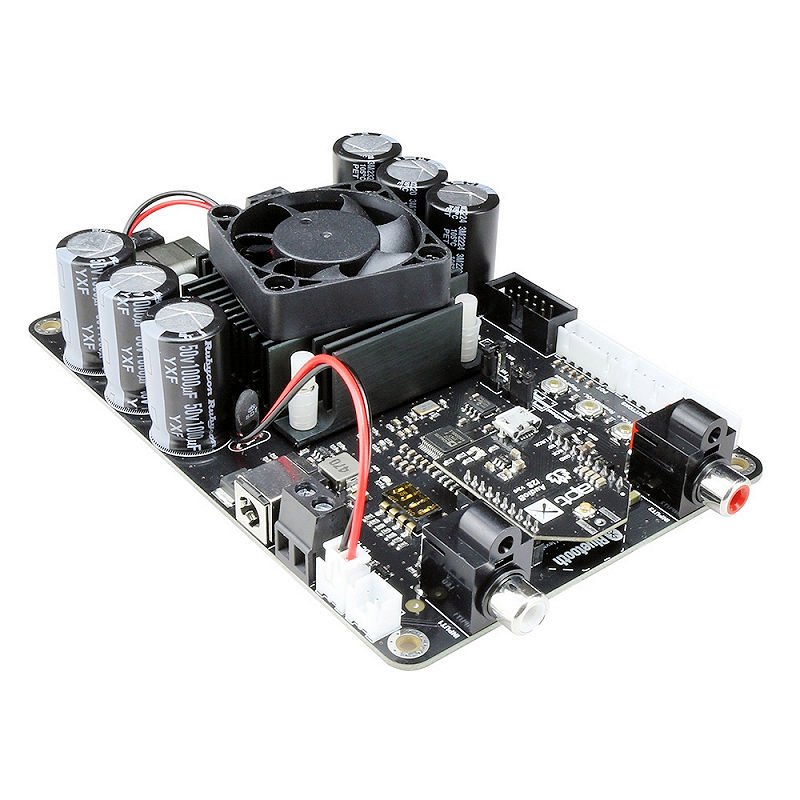

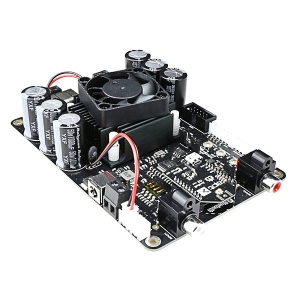

TINYSINE TSA8802B, 2 x 100W Bluetooth+DSP Audio Amplifier Bo

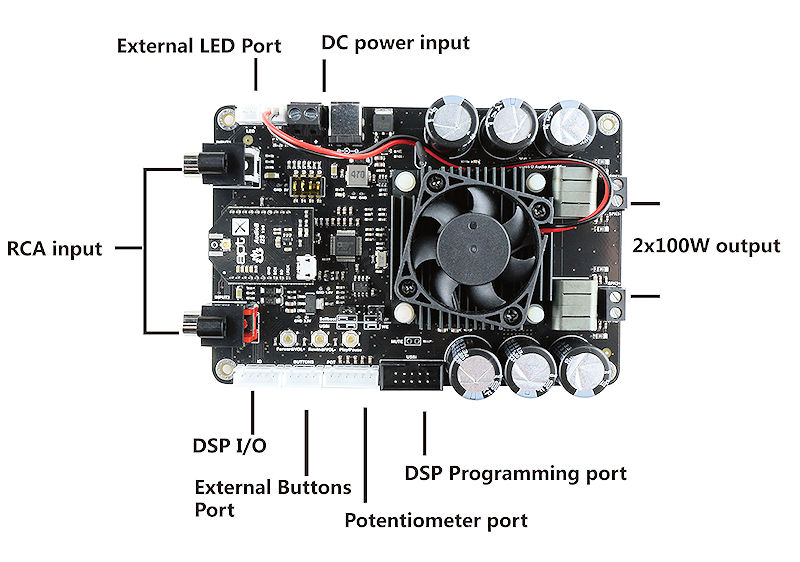

TSA8802B 2x100W 2 channels Bluetooth+DSP amplifier board with an AudioB I2S Bluetooth module that supports Apt-X. TSA8802B is a very flexible DSP/DAC/Amplifier combination board. It has perfect class-D structure (based on Texas Instruments TPA3221) and 2 channels have 100W power output. All the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-30V power supply. It can be used to drive any 2Ω~8Ω passive speakers. The highlight point is Analog Devices ADAU1701 DSP chip on board. It has a default DSP program loaded. Customers can adjust the gain, bass, midrange and treble in the DSP program. It also has a debug port for Sigima Studio and user can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.

TSA8802B has Apt-X and TWS supported. Therefore, users can stream audio to 2 paired amplifier boards at the same time wirelessly.
