VS-5 + CS-35ps kombinierte Module, gebaut nach Ihren Anforderungen.
Die Qualität Ihre Endstufe können Sie teilweise selbst bestimmen. Wählen Sie im Menü oben einer der drei Kwalitäten.
Ausser diese Bauteile brauchen sie auch noch ein geeigneter
Transformator mit zwei sekundär Wicklungen, 150% von max. Ausgangsleistung des Verstärkers.
ELTIM-35ps quality /
Parts used
|
HiFi (HiFi)
|
High-End (HE)
|
High-End + (HE+)
|
Input module
|
|
Input capacitor
|
WIMA MKP4
|
|
|
|
|
|
Output module
|
|
Power Mosfets
|
International Rectifier Hexfets
1 pair 24A/100V, TO247
|
1 pair 8A / TO247, 200V
|
1 pair 16A / TO264, 200V
|
Electrolytic capacitors
|
10.000uF/63V, 105º
|
|
|
Idle current capacitor
|
|
|
Power resistors
|
Standard MOX
2W, 5%
|
25W, 5%, low induction
|
25W, 1%, induction free
|
Other resistors
|
Any MOX type 1%
|
|
PCB
|
Eurocircuits (EU) made, FR4+, 2x35um tin plated solder isles
|
Solder
|
Any regular solder
|

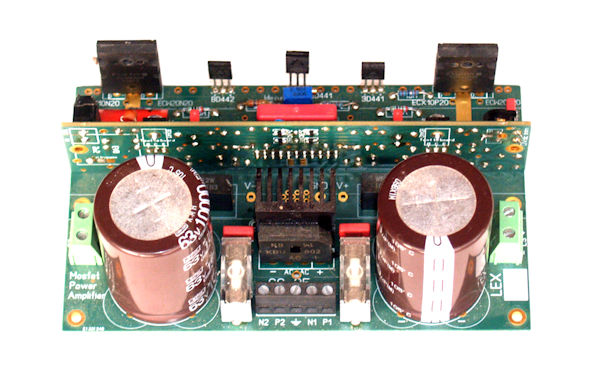

CS-35ps module with GSD orientated Mosfets. We also have them for GDS oriented Hexfets.
Our VS-5 input stage module is already mounted.
An ELTIM-35 module can be mounted on top, using the same supply.
That is a most compact active 2-way, bridged or stereo amplifier module then.
ELTIM-35ps HiFi with rugged, 24A/100V Hexfets is our most cost effective version
and capable to deliver up to150Wrms. It can handle "difficult" low ohmic speakers as well.
ELTIM-35ps HE with ultralinear EXICON 8A/200V lateral Mosfets. This is our fastest possible amp due to
ultra low gate capacitance and shortest possible PCB tracks. Snare drum, cymbals, etc. are amazing....
Works perfect as full range up to 120Wrms, but performs at best in multichannel setups driving mid/high units.
ELTIM-35ps HE+ with ultralinear EXICON 16A/200V lateral Mosfets. This is a fast amp due to
ultra low gate capacitance and shortest possible PCB tracks. Snare drum, cymbals, etc. are amazing....
Works perfect as full range, but performs nice in multichannel setups by driving (sub)bass units as well.

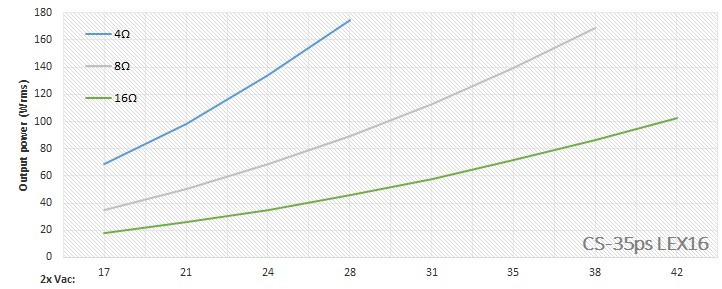

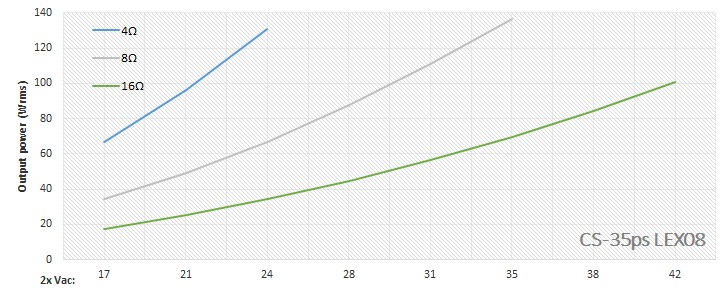

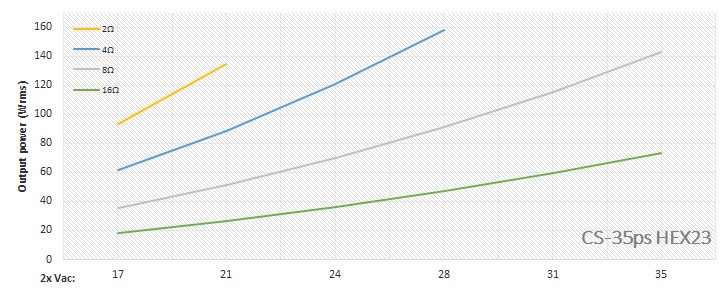

Note that in all three graphs the transformer voltages are listed in the horizontal bars!
40Vac (eff) is about 55Vdc (top) after rectification. Elco's are 63V types.

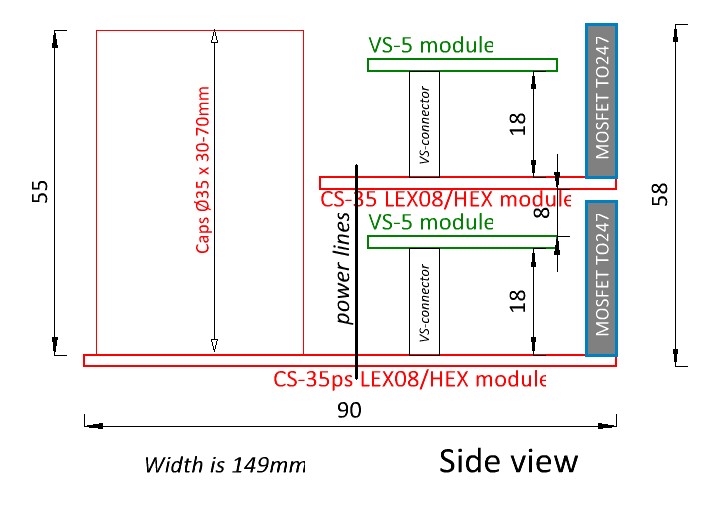

On top of it, a ELTIM-35 fits, making it a most compact 2-way amplifier
pack for f.e. active speakers, bridged mode, bi-amping or very compact stereo setups.
The power supply part on the ELTIM-35ps is feeding them all then, just connect a transformer
with sufficient power and double secondary windings to it.
For stereo applications use ELTIM-35 + ELTIM-35ps in the same quality.
For active 2-way applications best use an ELTIM-35 for mid/high and an ELTIM-35ps for bass.
Both share the power supply of the ELTIM-35ps, only one transformer required.
