TINYSINE TSA3110Av2, 2 x 8 Watt Class D Bluetooth Audio Ampl

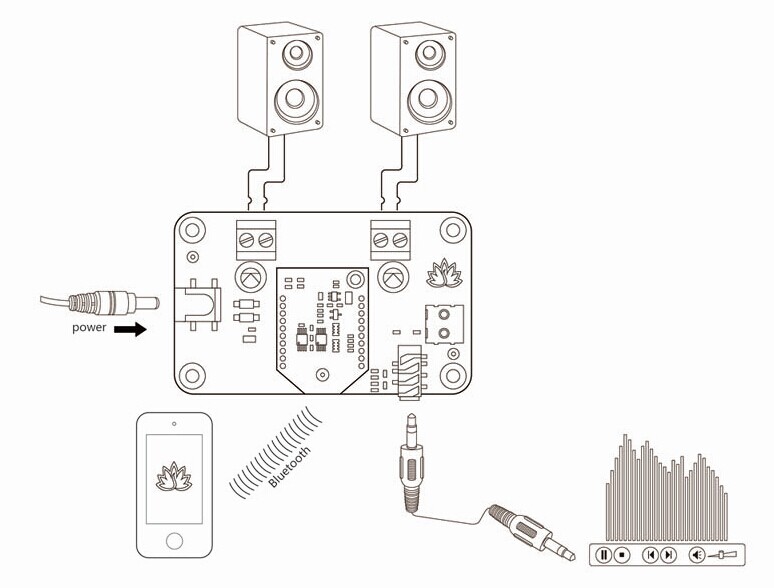

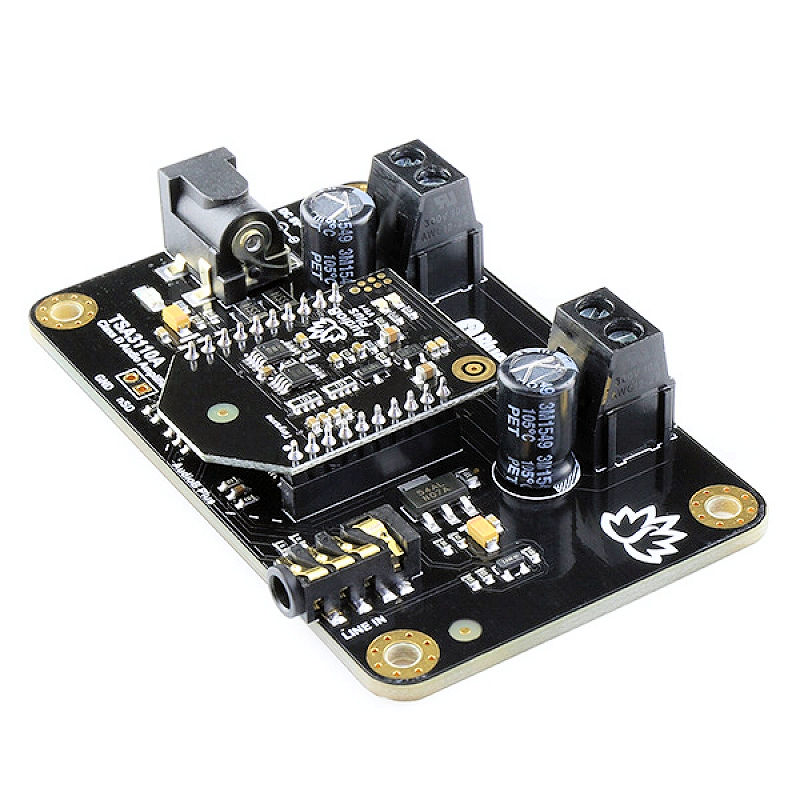

This is a 2x8W audio amplifier board with AudioB plus Bluetooth module. It has perfect class-D architecture (based on Texas Instruments TPA3110D2) and every channel has 8W power output. This board can be powered by any DC8V-16V power supply, it can be used to drive any 4Ω or 8Ω passive speakers. It's perfect for your Hi-Fi application, the audio source can be cable input (3,5mm stereo) or Bluetooth. You may wish to pair with a mobile phone or a computer, etc.. Power the amplifier board. Use your phone or PC, etc. to search for a new Bluetooth device. The module will appear as "BT Speaker". You don't need a PIN, pair it and then you can play music. TSA3110A V2 uses a micro switch to select the audio source input. It is a little more inconvenient than TSA3110A V1. But it improves the audio quality.
