THAT 1510W16, Differential Voorversterker, 0-70dB versterkin

€ 8,99 *Prijzen zijn inclusief btw € 7,43 exclusief btw €

Fabrikant: THAT
Artikelcode: THAT1510W16

0 ster(ren) met 0 review(s) Schrijf een review

Low-Noise, High Performance Audio Preamplifier

Low Noise:

1 nV/√Hz input noise (60dB gain)

Low THD+N (full audio bandwidth):

0.001% ≤ 40 dB gain

0.005% @ 60 dB gain

Low Current: 6mA typ.

Wide Bandwidth: 7MHz @ G=100

High Slew Rate: 19 V/μs

Wide Output Swing: ±13.3V on

±15V supplies

Gain adjustable from 0 to >60 dB

with one external resistor

Industry Standard Pinouts

Datasheet 1510/1512

Moet besteld worden!

Aantal

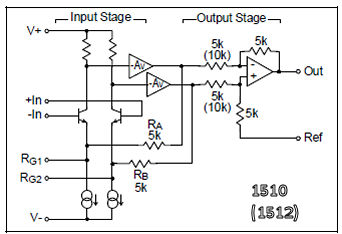

The THAT 1510 and 1512 are high performance current-feedback instrumentation amplifiers designed for low source-impedance preamp and bus summing applications.

The ICs are available in a variety of packages and pin configurations, making them pin compatible with the Analog Devices SSM2019 and SSM2017 (discontinued), and the Texas Instruments INA217 and INA163.

The parts are designed from the ground up in THAT’s complementary dielectric isolation process and include on-chip laser-trimmed Si-Chrome thin film resistor.

In microphone preamplifier applications, both the 1510 and 1512 improve on previous integrated designs by offering lower noise at low gains, wider bandwidth, higher slew rate, lower distortion, and lower supply current.

Productkenmerken

Merken	THAT
