Gebouwde en geteste CS-35ps uitgangstrap + voeding module.
U kunt deels zelf de kwaliteit van uw module bepalen. Keuze uit diverse componenten in bovenstaand menu .
Iedere CS-module dient aangevuld te worden met één van onze VS-modules (voorkeur: VS-5); alleen samen vormen ze een complete eindversterker.
Om de voeding compleet te maken hebt u ook nog een
voedingstransformator met 2 secundaire windingen nodig, ca 120% van het gevraagde uitgangsvermogen.

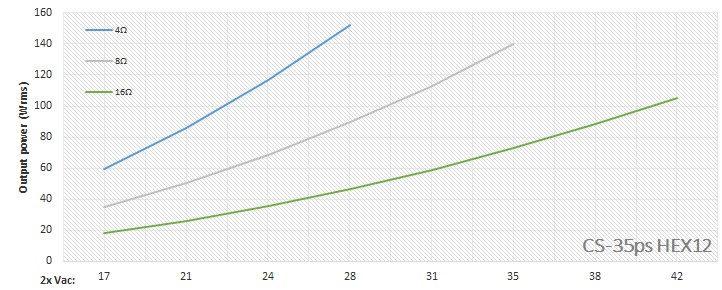

ELTIM CS-35ps HEX12 with rugged, 12A/200V Hexfets is our most cost effective version
and capable to deliver 140Wrms into 8 or 16ohms loads.
ELTIM CS-35ps HEX23 with rugged, 24A/100V Hexfets is our most cost effective version and capable
to deliver up to150Wrms. It can handle "difficult" low ohmic speakers like large bass / fulllrange units well.
Due to the voltage limits of the Hexfets used, the transformer voltage should not exceed 2x 35Vac!

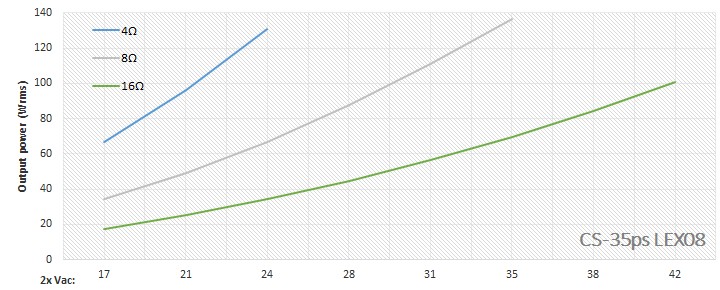

ELTIM CS-35ps LEX08 with ultralinear EXICON 8A/200V lateral Mosfets. This is our fastest possible amp due to
ultra low gate capacitance and shortest possible PCB tracks. Snare drum, cymbals, etc. are amazing....
Works perfect as full range up to 120Wrms, but performs at best in multichannel setups driving mid/high units.
ELTIM CS-35ps LEX16 with ultralinear EXICON 16A/200V lateral Mosfets. This is a fast amp due to
ultra low gate capacitance and shortest possible PCB tracks. Snare drum, cymbals, etc. are amazing....
Works perfect as full range, but also performs nice in active setups by driving (sub)bass units as well.
With this power the on board supply is demanded to about its max of around 180W.
Note that in all three graphs the transformer voltages are listed in the horizontal bars!
42Vac (eff) is about 60Vdc (top) after rectification. Elco's are 63V types.
For some "space" we prefer to use 40Vac trafo's max, resulting in around ±57Vdc.
On top of it, an ELTIM VS-5/CS-35 combination fits, making it a most compact 2-way amplifier
pack for f.e. active speakers, bridged mode, bi-amping or very compact stereo setups.
The power supply part on the ELTIM CS-35ps is feeding them all then, just connect a transformer
with sufficient power and double secondary windings to it.
