ELTIM Pre 230+, Compact Voorversterker module met MM/MC inga

1 MM/MC input, 2 lijn ingangen, 1 interne lijn uit en 1 externe lijn uit.

€ 239,00 *Prijzen zijn inclusief btw € 197,52 exclusief btw €

Fabrikant: ELTIM
Artikelcode: PRE230+

0 ster(ren) met 0 review(s) Schrijf een review

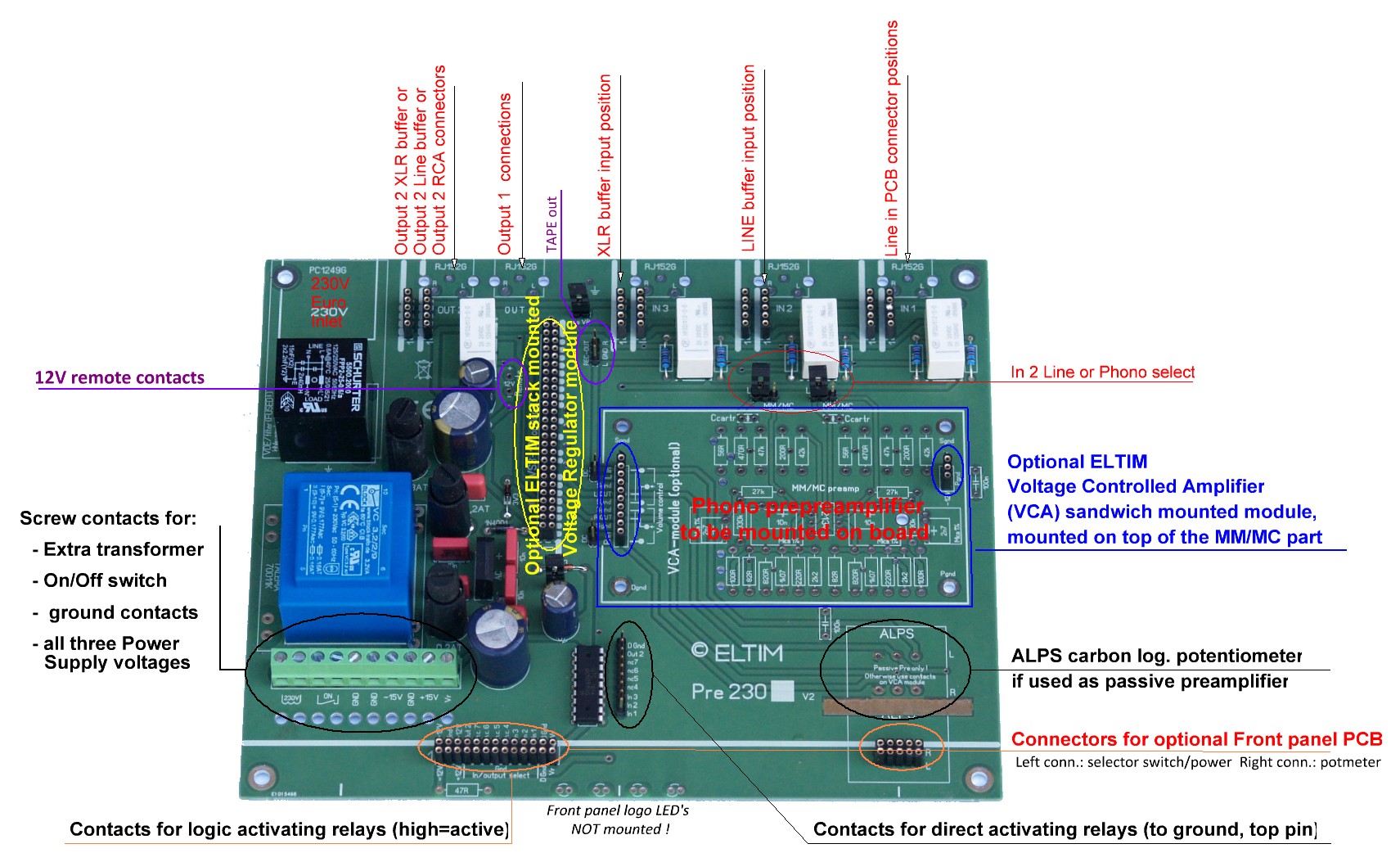

PRE-230+ V2 preamplifier module highlights:

- 2 Line inputs (1 and 3), relay switched

- 1 MM/MC phono input (2)

- Location for ALPS carbon potentiometer

- 1 RCA output

- 1 RCA output (muted by relay)

- 1 Tape output by solder pins

- 1 Remote on/off output by solder pins

- On board Power Supply toroidal 3,2VA + Netfilter

OPTIONS:

- ELTIM electronic (VCA) volume control module

- ELTIM symmetrical Voltage regulator module

- ELTIM buffered line inputs

- ELTIM buffered balanced inputs

- ELTIM buffered line output 2

- ELTIM buffered balanced output 2

- ELTIM Front Panel PCB support

- uP controlled functioning (volume and selections)

Moet besteld worden!

MM/MC RIAA condensatoren

Aantal

Pre-230 +

With this Pre-230 module we offer a 3 Inputs / 2 Output switching module with an on board Power Supply.

Standard it is a so called passive Preamplifier with electronic in/output switching function and a potentiometer volume control.

If you like, you can simply make it an active preamplifier by adding one of our VCA modules without modifications.

Instead of that you could build your own electronics, with f.e. volume/balance/tone/etc. controls.

If you want to go one step higher, add our VR3-12 Voltage Regulator module for improved sound quality.

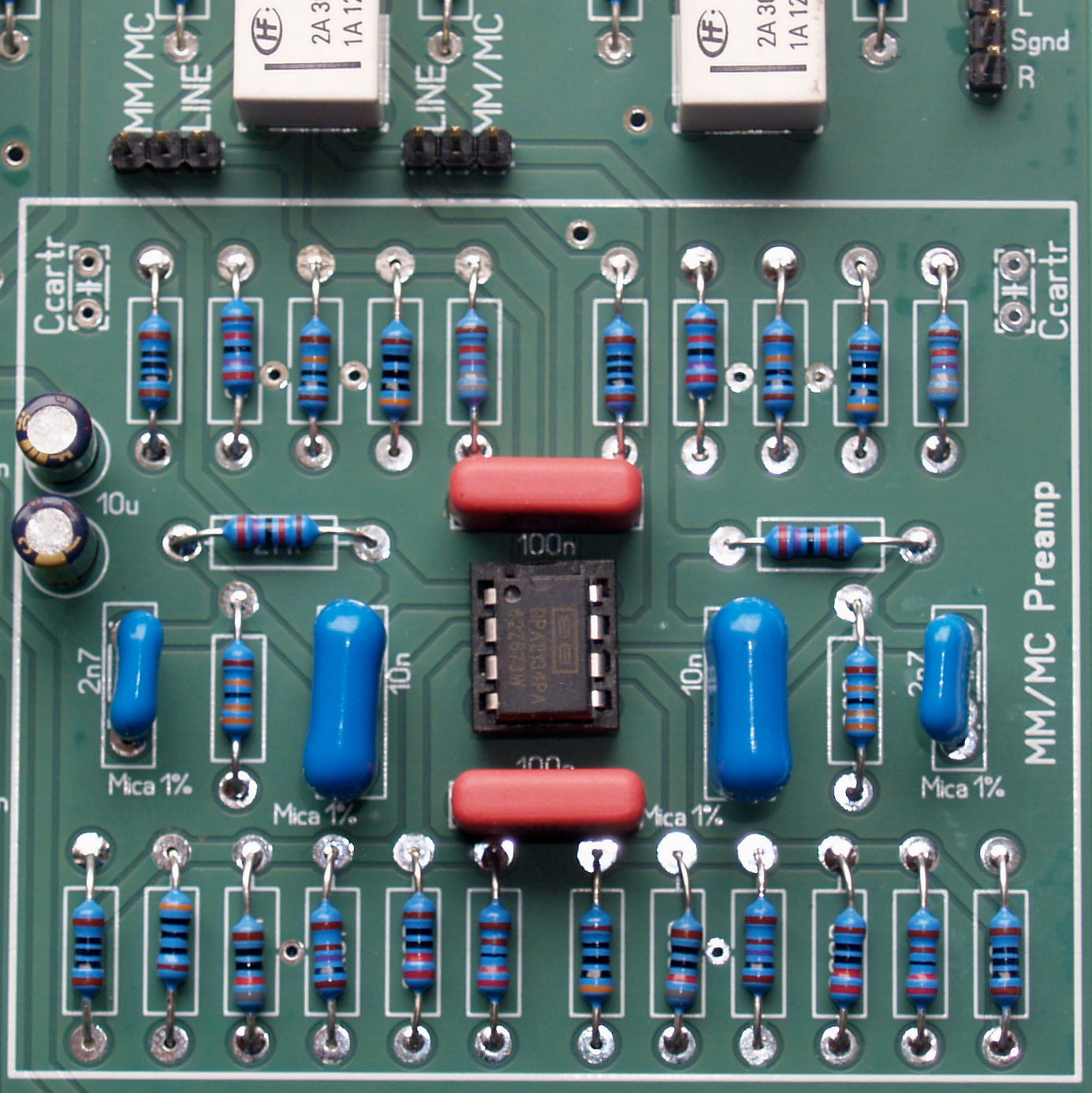

In this + version we added a nice MM/MC phono stage, connected to input 2.

It can be equipped with 16 gain and 16 input impedance selector switches at the bottom.

You could see it as a very good MM/MC preamp with two extra line inputs actually.

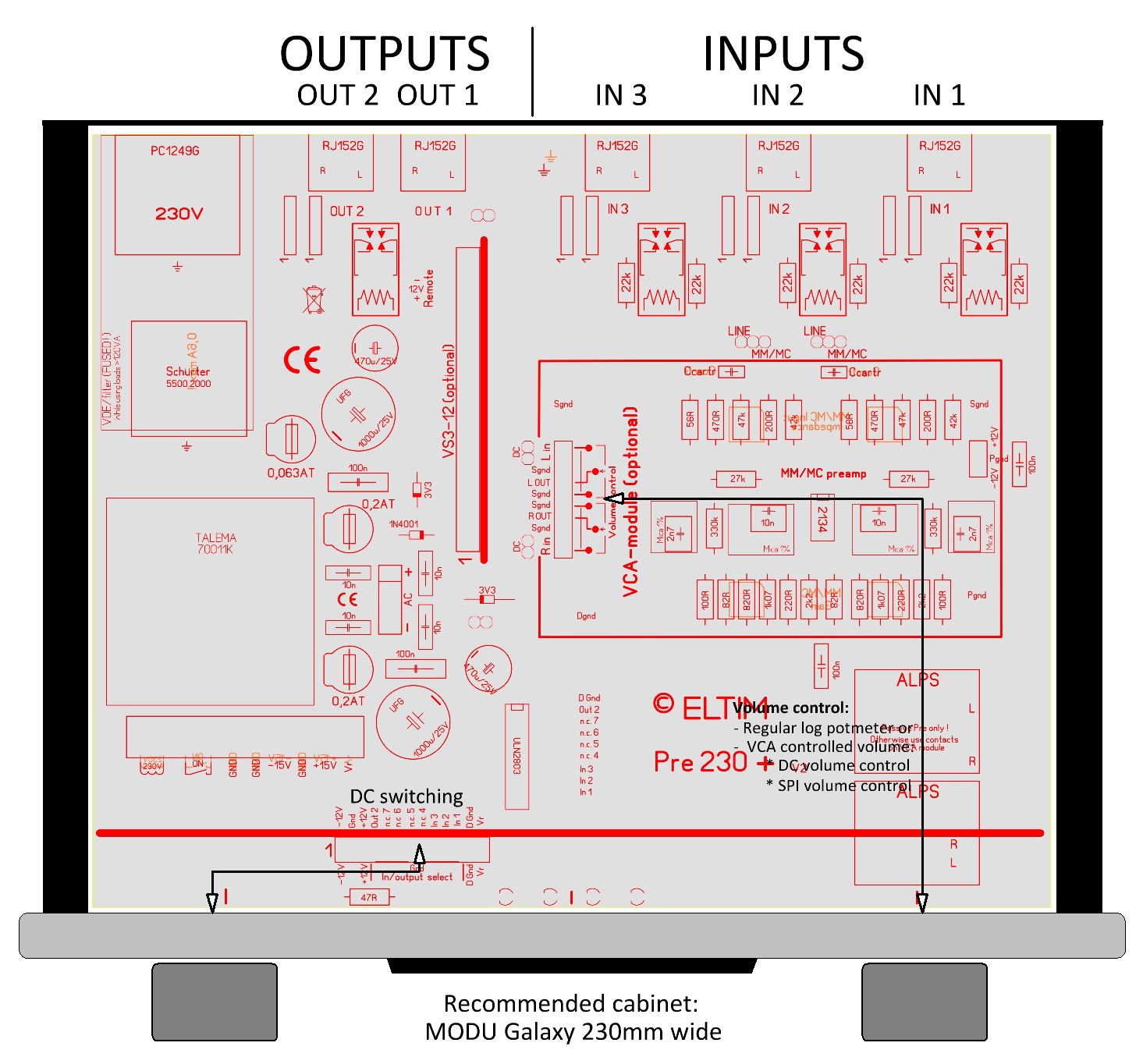

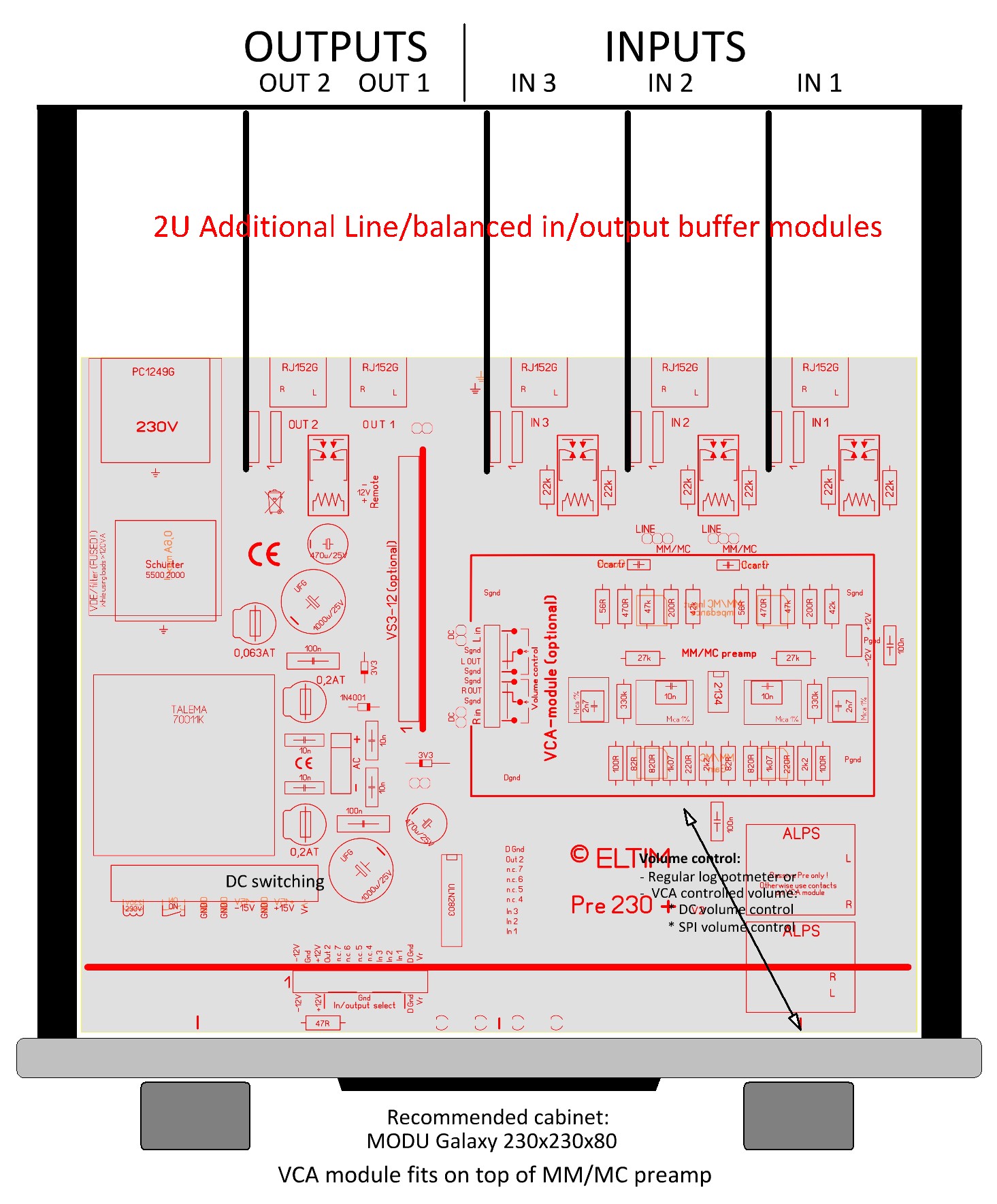

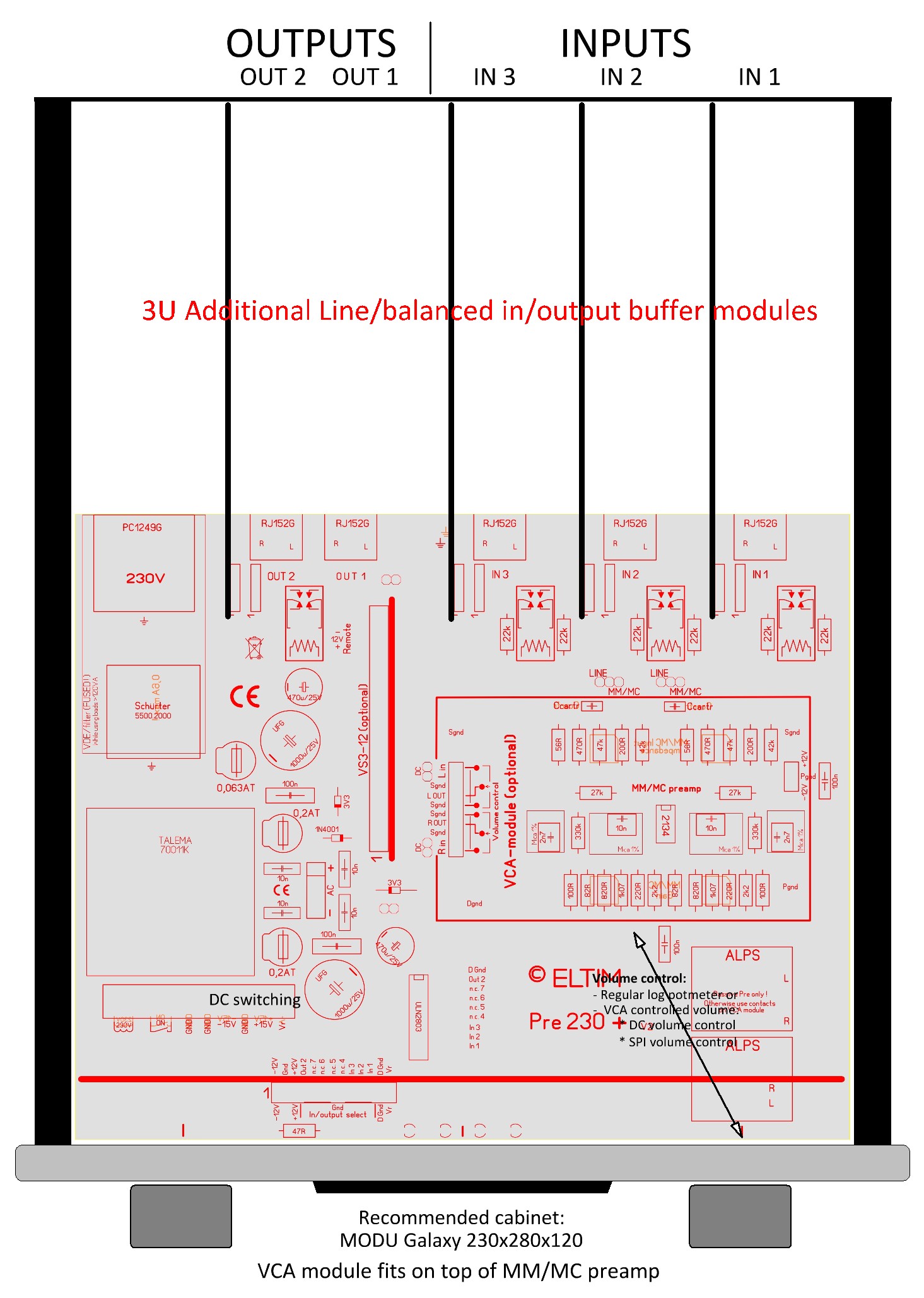

This Pre-230 module exactly fit in the nice and cost effective MODU Galaxy 230x170mm cabinets.

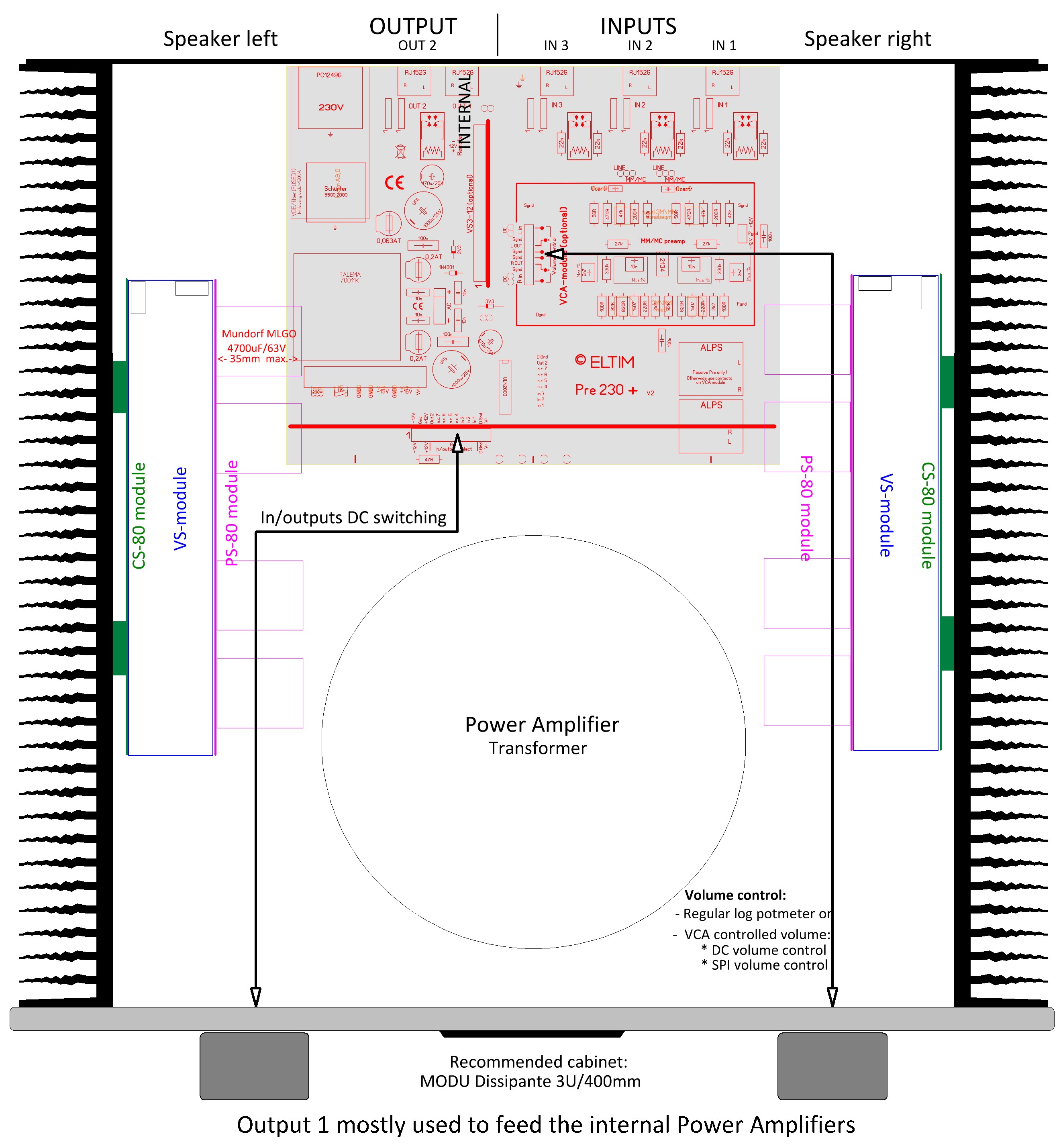

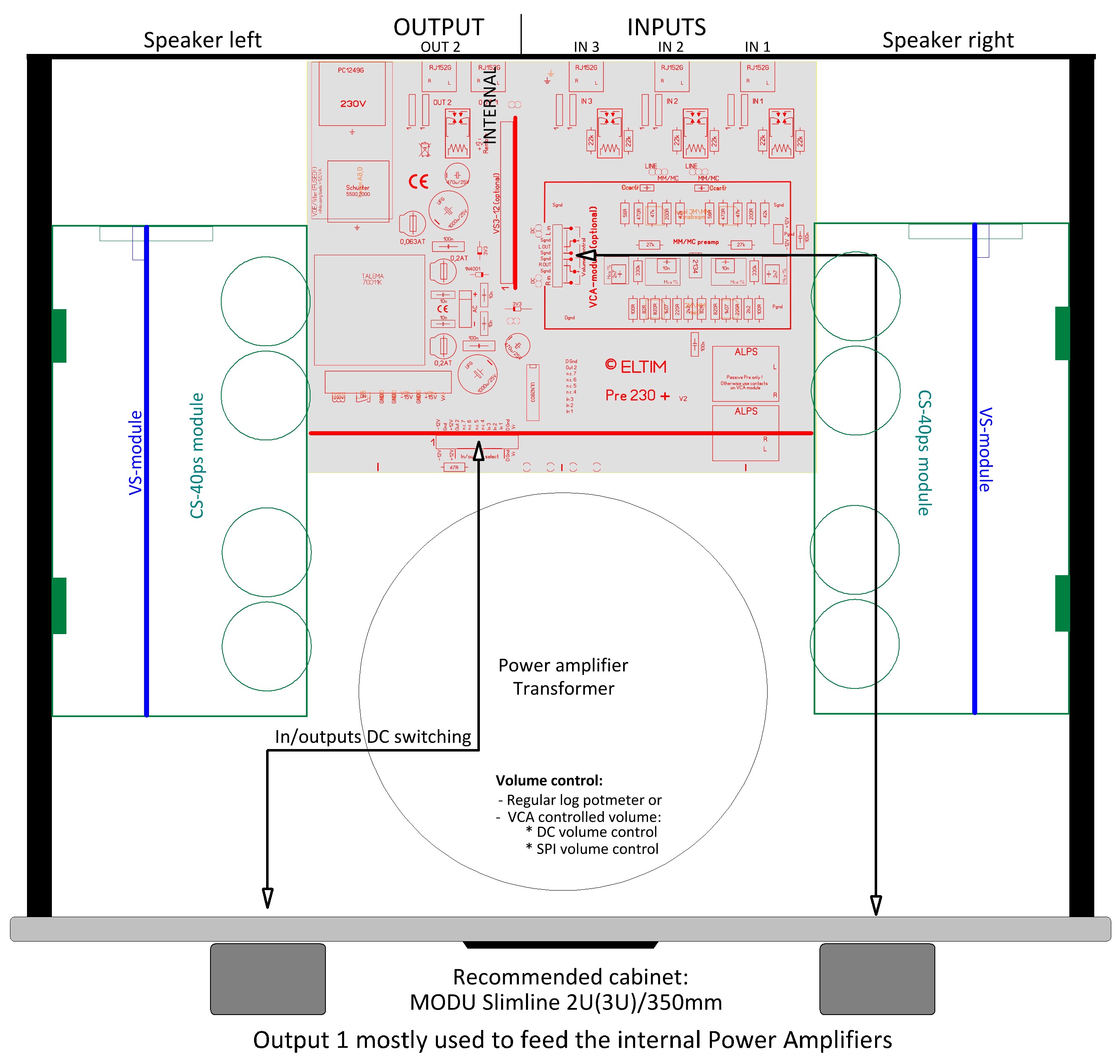

Of course, you also can mount them in any larger cabinet as well, f.e. in an integrated setup.
