CS-35 uitgangstrap zelfbouw kit, incl. de door u geselecteerde componenten, zie boven.
Deze CS-35 DIY module is de meest compacte huidige stage module die we in ons programma hebben. Het kan 30 -180 Wrms maken, afhankelijk van het vermogen Fet-types en voedingsspanningen.

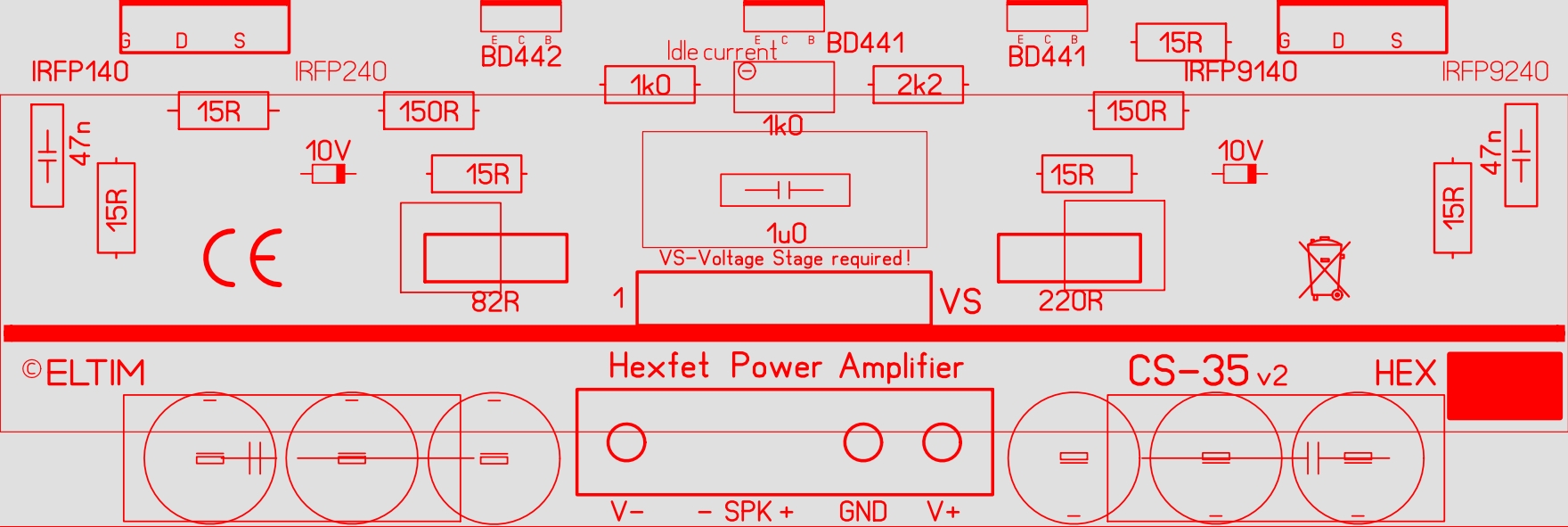

Version for GDS oriented Fet types, mostly Hexfets.

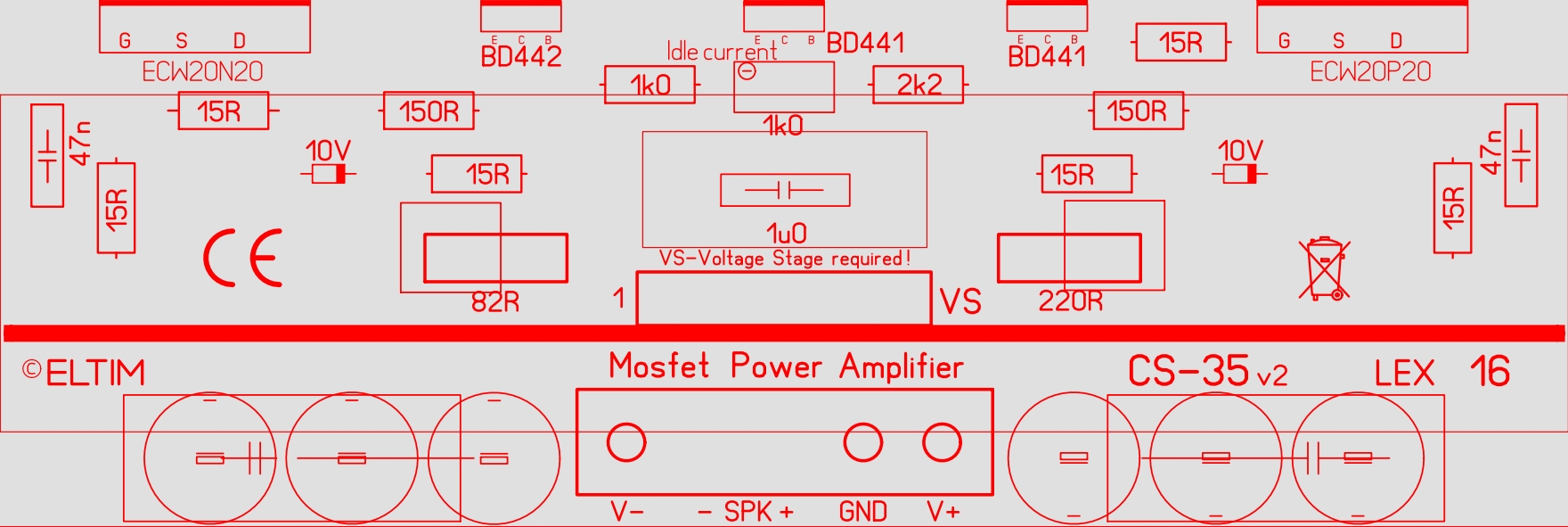

Version for GSD oriented Fet types, mostly Mosfets.
Both are exactly the same, except for the power Fet Drain and Source connections, beeing switched.

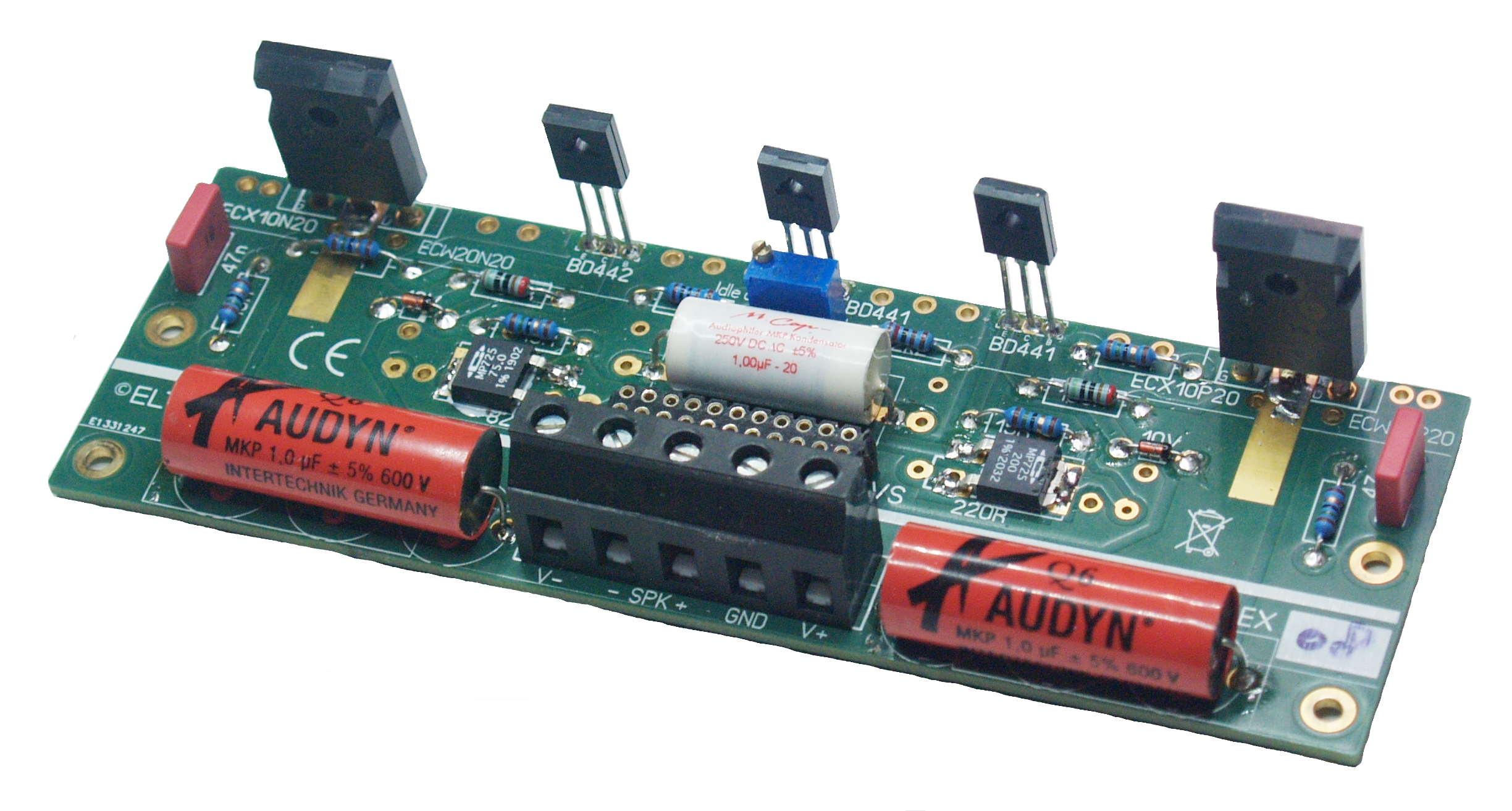

The shown Q6 MKP capacitors over the power rails are optional as some other parts are.
You can select these items in the order menu and make it as good as you can afford -)
You can choose from four types of Hexfets / Mosfets.
Hexfets perform in the High-End range, the ultralinear Mosfets in the Reference range:

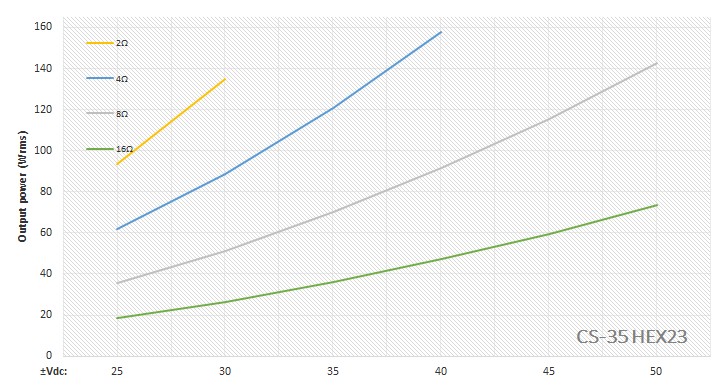

A rugged version with cost effective 23A/100V Hexfets, specialised in low ohmic / 100-150W @ 4 ohms loads.

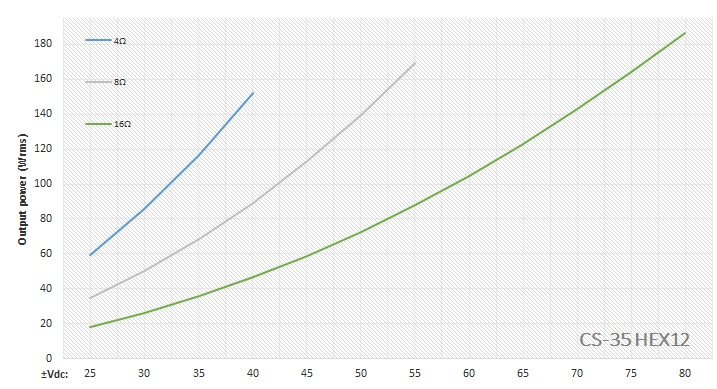

with rugged, 12A/200V Hexfets it is a most cost effective version and
due to its high supply voltage specialised in high ohmic loads up to 180W @ 16ohms loads.

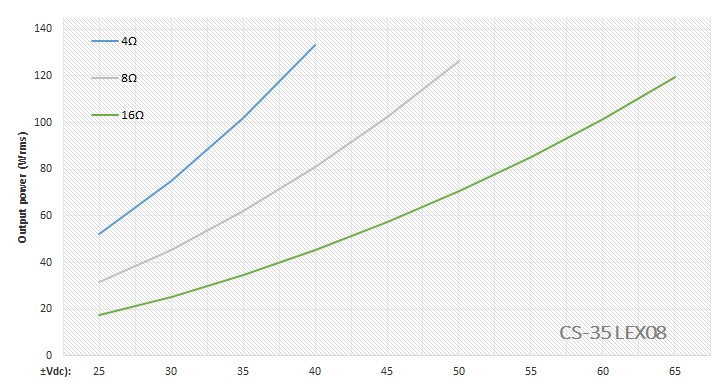

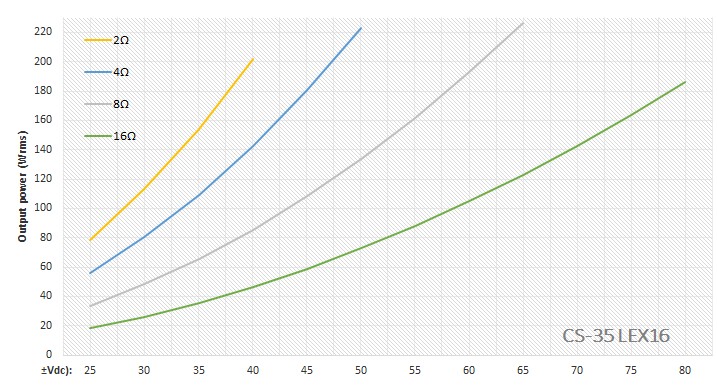

With ultralinear EXICON 8A/200V lateral Mosfets, this is our fastest possible amp due to
ultra low gate capacitance and shortest possible PCB tracks. Snare drum, cymbals, etc. are amazing....
Works perfect as full range, but performs at best in multichannel setups driving mid/high units.
With ultralinear EXICON 16A/200V lateral Mosfets, a very fast amp due to low gate capacitance.
Works perfect as full range, but performs at best in multichannel setups driving bass units.

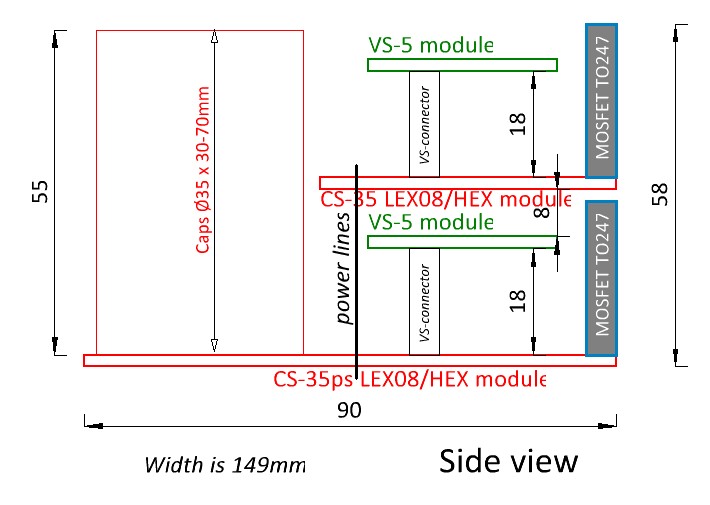

With VS-5 mounted sandwiched on top, it is perhaps the most compact
High-End amplifier pack built with high quality through hole components: 149x50x30/35mm.
You also need one of our VS-input stage modules. VS-5 exactly fits:
A pack like this also fits on top of a CS-35ps + VS-5, making it a most compact 2- or 3-way amplifier
pack for f.e. active speakers, bridged mode, bi-amping or very small stereo setups.
The power supply part on the CS-35ps is feeding them all then, just connect a transformer:
