TINYSINE TS8675, Bluetooth 5.0 APTX Audio Module

Bluetooth 5.0, 2,4GHz, Apt-X multipoint audio

€ 21,90 *Prijzen zijn inclusief btw € 18,10 exclusief btw €

Fabrikant: TINYSINE
Artikelcode: TS8675

0 ster(ren) met 0 review(s) Schrijf een review

Bluetooth Profiles

Bluetooth v5.0 specification support
Qualcomm® Bluetooth® Low Energy secure connection
A2DP v1.3.1
AVRCP v1.6
HFP v1.7
HSP v1.2
MAP v1.1
PBAP v1.1.1
DID v1.1
QTIL's proximity pairing and QTIL's proximity connection

Music Enhancements

aptX, aptX Low Latency, SBC and AAC （Point to Point connection firmware）
TrueWireless Stereo (TWS)
Configurable Signal Detection to trigger events
1 bank of up to 10-stage Speaker Parametric EQ
6 banks of up to 5-stage User Parametric EQ for music enhancement
Qualcomm® meloD™ Expansion audio processing: 3D stereo widening
Compander to compress or expand the dynamic range of the audio
Post Mastering to improve DAC fidelity
Dual I²S outputs with crossover

Additional Functionality

Support for multi-language programmable audio prompts
CSR's proximity pairing and CSR's proximity connection
Multipoint support for A2DP connection to 2 A2DP sources for music playback
Talk-time extension
Slim module with 15mm x 22mm x 2.0mm

DATASHEET

Moet besteld worden!

Aantal

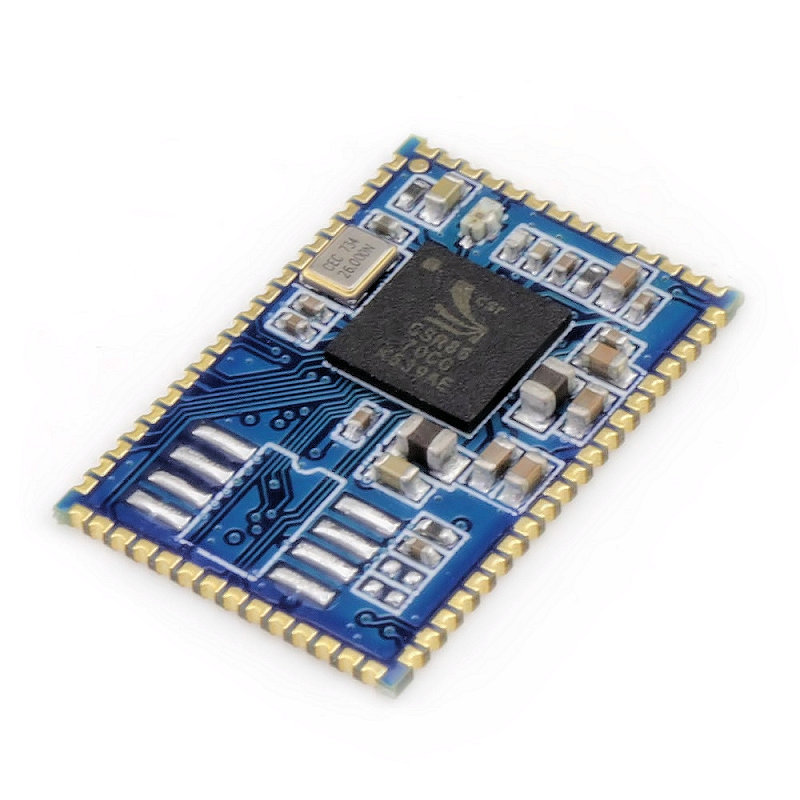

TS8675 is a cost effective, low power and compact solution Bluetooth 5.0 module with good performance. The Bluetooth module provides a complete 2.4GHz Bluetooth system based on the Qualcomm BlueCore CSR8675 chipset which is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. This module is fully compliant to Bluetooth v5.0 for audio communications. The default firmware inside is a broadcasting multipoint connection firmware.
