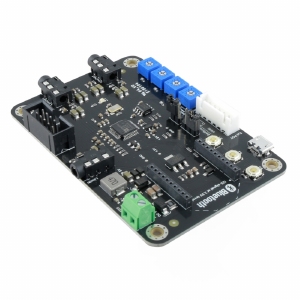

TINYSINE TSA1702A, Audio DSP Board

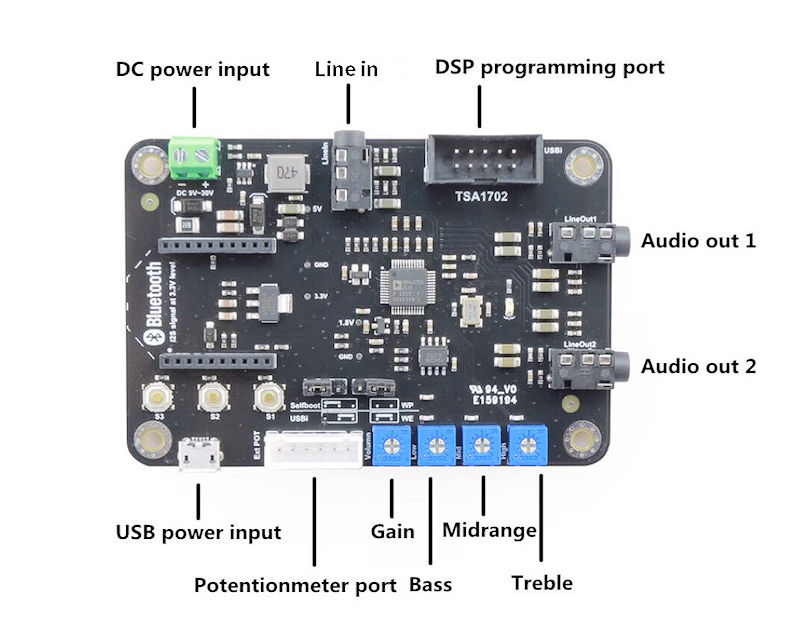

TSA1702A is a DSP audio board, it can be powered by a microUSB cable or any DC9V-30V power supply. The TSA1702A is a complete audio digital signal processing module. The main DSP chip on this module is Analog Devices ADAU1701. The application range from active loudspeaker concepts (digital 3 way 3 unit, 2 way 2 unit crossover, bass enhancement, etc.) and realize the transformation from 2.0 to 2.1. It has four potentiometers and with default program loaded. Customers can adjust the gain, bass, midrange and treble. It also has a debug port for Sigima Studio, and users can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.
