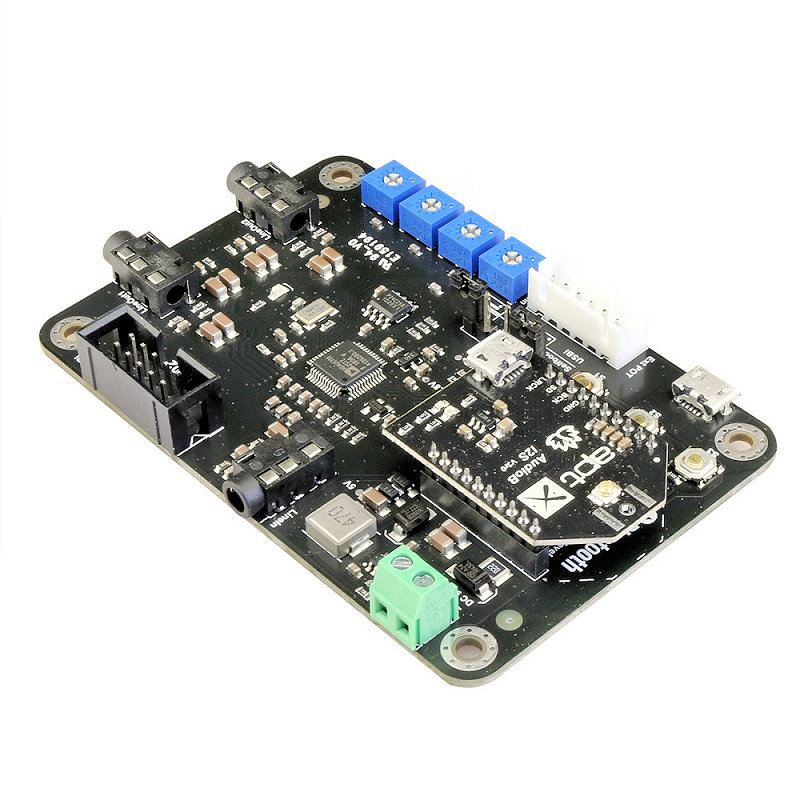

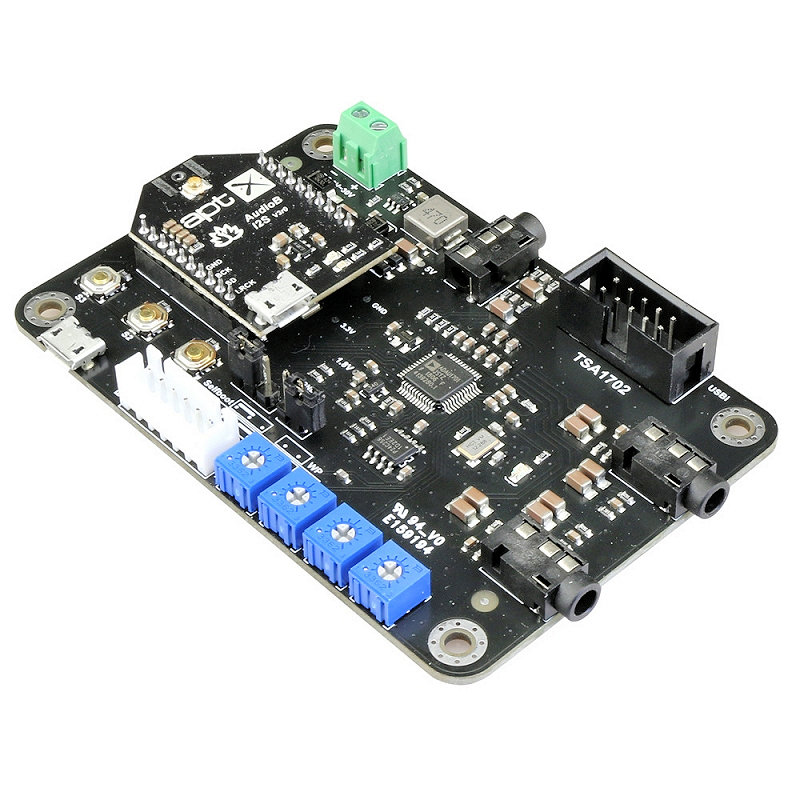

TINYSINE TSA1702B, Bluetooth + DSP Audio Receiver Board

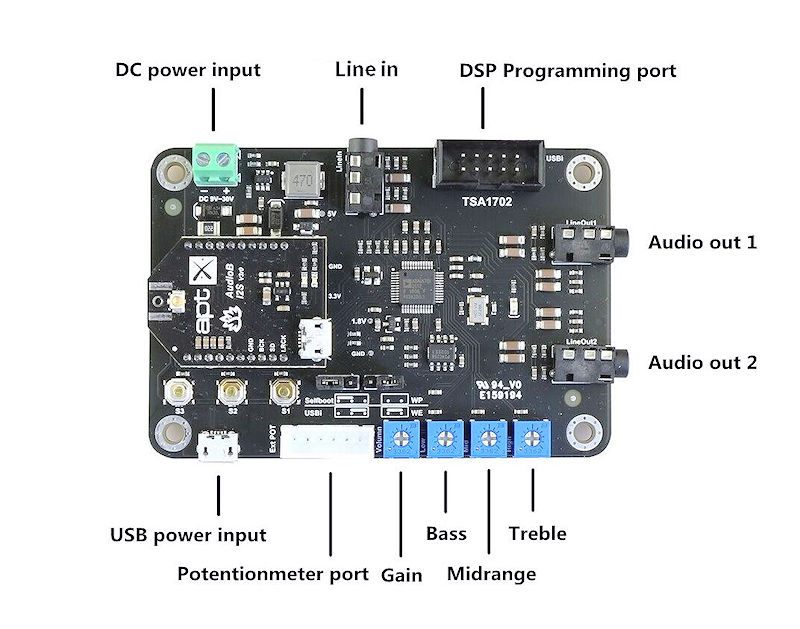

TSA1702B is a Bluetooth + DSP board with an AudioB I2S v3 module that supports Apt-X. It can be powered by a microUSB cable or any DC9V-30V power supply. You can pair it with a mobile phone or a computer, etc.. Power the board, use your phone or PC, etc. to search for a new Bluetooth device. The module will appear as "TSA1702B". You don't need a PIN, pair it and then you can play music. It is just like a TSA1701 + Bluetooth. The TSA1702B is a complete audio digital signal processing module. The main DSP chip on this module is Analog Devices ADAU1701. The application range from active loudspeaker concepts (digital 3 way 3 unit, 2 way 2 unit crossover, bass enhancement, etc.) and realize the transformation from 2.0 to 2.1. It has four potentiometers and with default program loaded. Customers can adjust the gain, bass, midrange and treble. It also has a debug port for Sigima Studio, and users can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.
