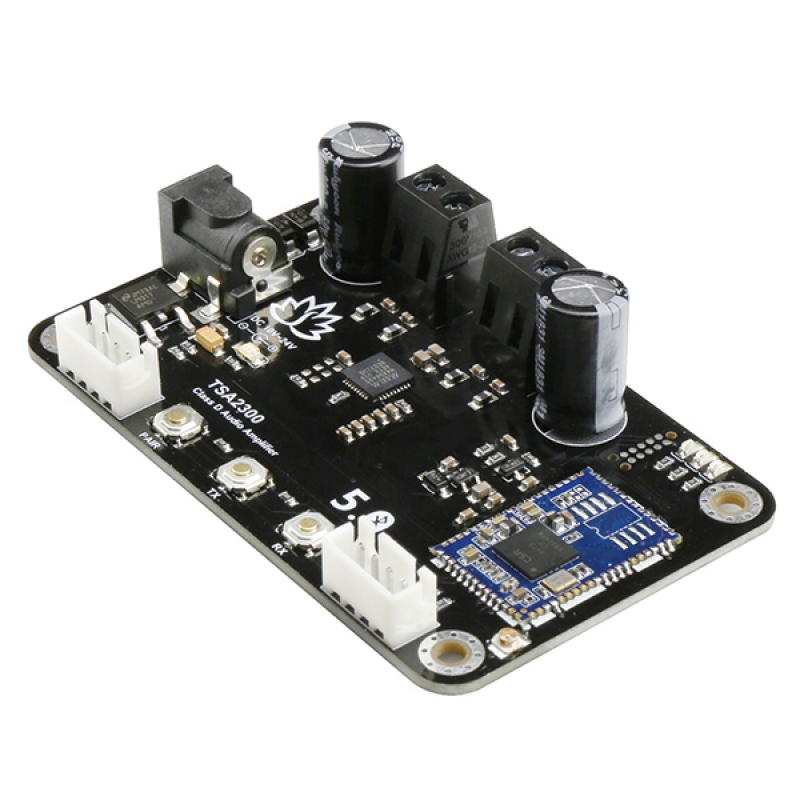

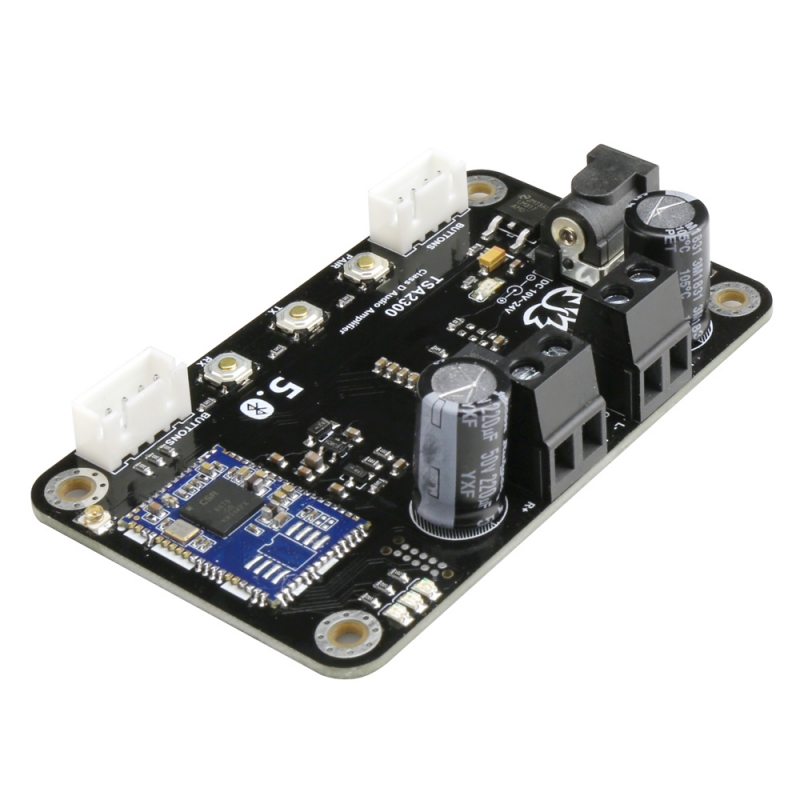

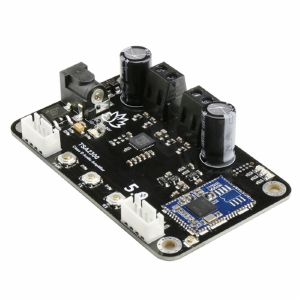

TINYSINE TSA2300, 2 x 20W Bluetooth 5.0 Multipoint Audio Amp

TSA2300 is a 2x20W Stereo Bluetooth 5 multipoint audio amplifier board. It has perfect class-D architecture (based on MAX98400A) and each channel has 20W power output. Both of the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC10V-24V power supply. It can be used to drive two 8Ω passive speakers. The highlight point is BT 5 integrated. You can have many TSA2300 boards paired and work together. TSA2300 can remember the pairing info. You don't need pair them each time you turn the amplifier board on. This makes it possible to build a wireless surround sound system by using the TSA2300. If you only use one TSA2300. It can work as a common Bluetooth amplifier board. Power the amplifier board. Double click PAIR button to set the board into Pairing mode. Use your phone or PC, etc. to search for a new Bluetooth device. The module will appears as "TSA2300". You don't need a PIN, pair it and then you can play music.
