ELTIM-150REF, eindversterker + netvoeding module

Plm. 150Wrms, VS-35 ingangsmodule, CS-150REF uitgangsmodule en PS-3/63 echte 4-pool voeding module.

€ 499,00 *Prijzen zijn inclusief btw € 412,40 exclusief btw €
Fabrikant:  ELTIM
Artikelcode:  ELTIM-150REF
0 ster(ren) met 0 review(s) Schrijf een review
ELTIM-150REF   General technical specifications:

Frequency range:
DC - >200kHz within ±0,1dB
Frequency limit (-3dB):
650kHz (limited and defined by VS-module used. CS-300 itself runs >2MHz)
Frequency limit (-10dB):
900kHz
In > Out Phase shift:
-0,2º constant @ 10Hz - 18kHz, -3,6º@20kHz
Max. output current:
8A constant  (dependant on the heatsink dissipation rate!)
Distortion figure (THD):
< 0,0005%   (1W/1kHz/8ohm)
< 0,001%   (150W/1kHz/8ohm)
Slew rate:
> 65V/uS  (@ full power, limited by RF-input filter on VS-module used).
Harmonics:
< -60dB, (nonspecific and unnoticable)
Noise floor:
<-120dB, (unnoticable)
Damping factor:
> 100  (depending on power supply quality. NO SMTP!)
Input sensitivity:
1 Volt
Gain:
28dB (i.c.w. any required VS-module)
Input impedance:
10kOhm (can be modified 10-47kohm)
Output power:
30-160Wrms (depending on load and supply voltages, see graphs).
Output load:
4 – 16 ohms, (see load graphs)
Supply voltage:
±25 - ±40Vdc (4/8/16ohms load, recommended in 300mm deep cabinet)
±25 - ±50Vdc (8/16 ohms load only!)
Dimensions:
240x75x98mm (including power supply module)

















Moet besteld worden!
Ready built and tested ELTIM-150REF power amplifier module with preselected VS/CS/PS combination.

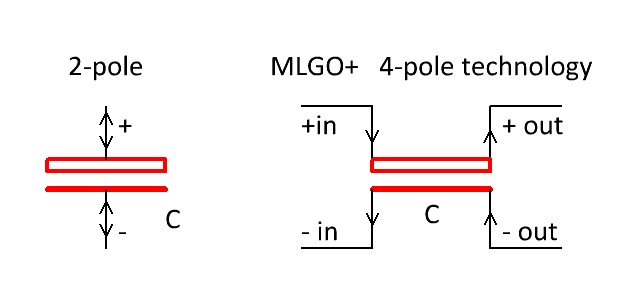

In this version we use a single pair of ultralinear EXICON 8A lateral Mosfets and absolute highest quality parts. On top of that we use a unique true 4-pole power supply unit here with MUNDORF MLGO+ capacitors.

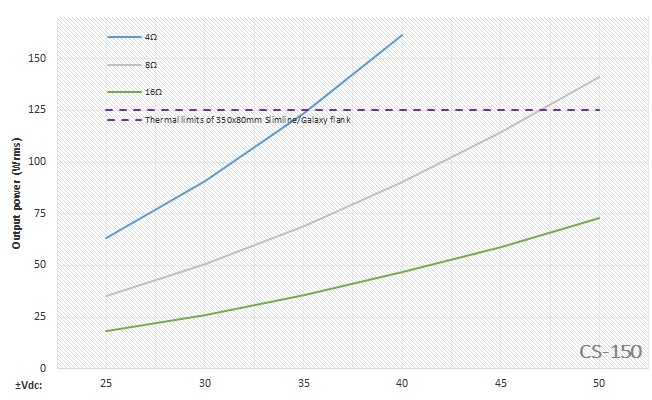

ELTIM-150  power / supply graph.

.Aquire a transformer with two secondary windings, matching to the required power as shown in the graphs horizontal bars. A recommended transformer of. 2x 30Vac gives around 43Vdc / 165Wrms in 4ohms > 250VA trafo.
If you don't know the speaker impedance at all times, use a 2x 30Vac trafo.

Infobulletins:       VS-35 input module          CS-150 output module          PS-3 Power Supply module


Extra's:

TOROIDY TTS0250 ringkern transformator, 250VA

TOROIDY TTS0250 ringkern transformator, 250VA
250VA, Ø117x47mm

€ 62,20 € 51,40 exclusief btw
Details
TOROIDY TTSA0250 Audio Grade ringkern transformator, 250VA

TOROIDY TTSA0250 Audio Grade ringkern transformator, 250VA
250VA, Ø117x47mm, ingegoten, mylar tape afdekking, elektrisch afgeschermd.

€ 109,20 € 90,25 exclusief btw
Details
TOROIDY TTSAS0250 Supreme Audio Grade ringkern trafo, 250VA

TOROIDY TTSAS0250 Supreme Audio Grade ringkern trafo, 250VA
250VA, Ø150x65mm, ingegoten in gepolijste RVS box, elektrisch en elektromagnetisch afgeschermd.

€ 213,60 € 176,53 exclusief btw
Details
MODU Dissipante 1NPDA03400B, 10mm zi front, 448x413x124mm

MODU Dissipante 1NPDA03400B, 10mm zi front, 448x413x124mm
Internal 365x400x120mm, Front 450x130x10mm, full aluminium, 3mm top/bottom

€ 255,31 € 211,00 exclusief btw
