Deze versterker module is de meest compacte versie die we in ons programma hebben. Het kan 30 -160 Wrms maken, afhankelijk van het vermogen Fet-types en voedingsspanningen.
U kunt deels zelf de kwaliteit van uw module bepalen. Keuze uit drie niveau's in bovenstaand menu.
ELTIM-35 quality /
Parts used
|
HiFi (HiFi)
|
High-End (HE)
|
High-End + (HE+)
|
Input Module
|
|
Input capacitor
|
WIMA MKP4
|
|
|
Output module
|
|
Power Mosfets
|
International Rectifier Hexfets 12A / 200V, TO247
|
8A / TO247, 200V
|
16A / TO264, 200V
|
Electrolytic capacitors
|
none present, symmetrical power supply required!
|
Idle current capacitor
|
|
|
Power resistors
|
Standard MOX
2W, 5%
|
25W, 5%, low induction
|
25W, 1%, induction free
|
Other resistors
|
Any MOX type 1%
|
|
PCB
|
Eurocircuits (EU) made, FR4+, 2x35um tin plated solder isles
|
Solder
|
Any regular solder
|

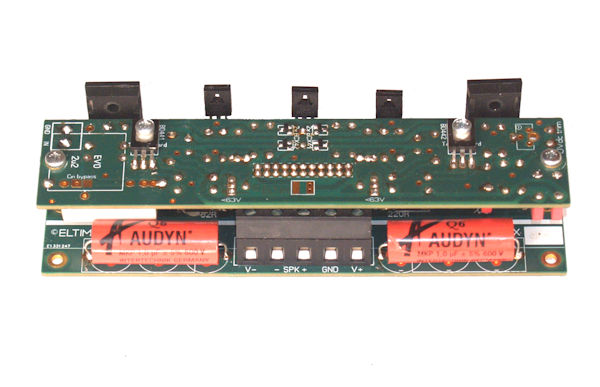

Included VS-5 input module is horizontal mounted, saving some space.
It can be mounted on top of an ELTIM-35ps, using the same power supply.
The shown Q6 MKP capacitors over the power rails are optional as some other parts are.
You can mount types you prefer and improve overall soundquality a bit.
You can choose from three types of Hexfets / Mosfets with different power curves:

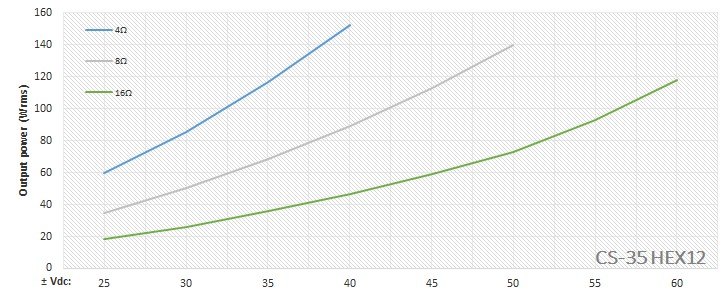

ELTIM-35 HiFi with rugged, 12A/200V Hexfets is our most cost effective version and
due to its high supply voltage specialised in high ohmic loads up to 120W @ 16ohms loads.
We also reccomment it to drive mid/high units in active systems, where a CS-35ps HEX24 drives the woofer.

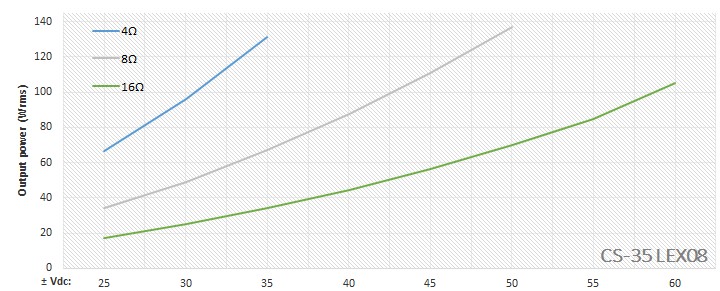

ELTIM-35 HE with ultralinear EXICON 8A/200V lateral Mosfets. This is our fastest possible amp due to
ultra low gate capacitance and shortest possible PCB tracks. Snare drum, cymbals, etc. are amazing....
Works perfect as full range, but performs at best in active setups driving mid/high units.
In that case best to use a ELTIM-35ps REF to drive the woofer(s).

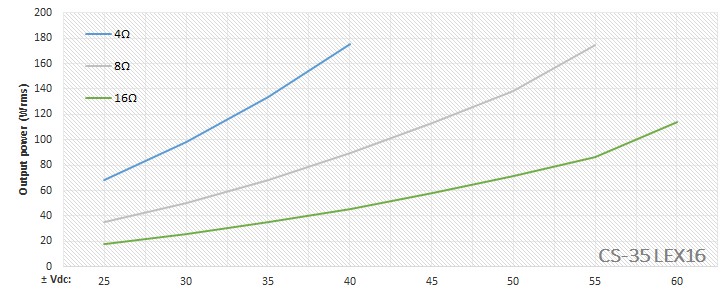

ELTIM-35 HE+ with ultralinear EXICON 16A/200V lateral Mosfets. A very fast amp due to low gate capacitance.
Works perfect as full range, but also performs very well in active setups driving bass units.

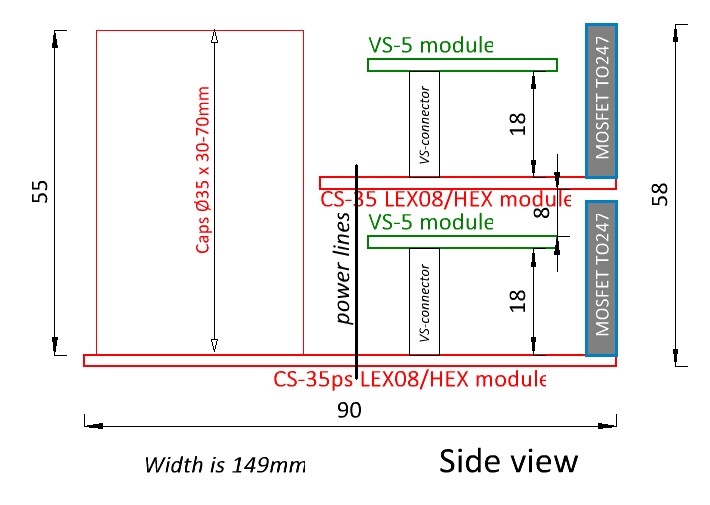

An ELTIM-35 pack fits on top of a ELTIM-35ps pack, making it a most compact 2- or 3-way
amplifier pack for f.e. active speakers, bridged mode, bi-amping or very small stereo setups.
The power supply part (200Wmax.) on the ELTIM-35ps is feeding them all then, just connect a transformer:
For stereo applications use ELTIM-35 + ELTIM-35ps in the same quality.
For active 2-way applications best use a ELTIM-35 HE for mid/high and an ELTIM-35ps REF for bass.
