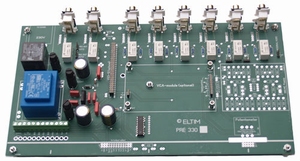

ELTIM Pre 330, mid-sized Voorversterker module

6 lijn ingangen, 1 lijn uit en 1 lijn uit/opname uit.

ELTIM Pre 330, mid-sized Voorversterker module
€ 249,00 *Prijzen zijn inclusief btw € 205,79 exclusief btw €
Fabrikant:  ELTIM
Artikelcode:  PRE330
0 ster(ren) met 0 review(s) Schrijf een review
PRE-330 preamplifier module highlights:

-  6 Line inputs, relay switched
-  In 2 can be modified to MM/MC phono stage
-  Location for ALPS carbon potentiometer
-  2 external outputs (muted by relay)
-  Out 2 selectable as volume controlled Out or Tape out.
-  On board Power Supply 5,0VA + Netfilter

OPTIONS:
-  ELTIM electronic (VCA) volume control module
-  ELTIM symmetrical Voltage regulator module
-  ELTIM buffered line inputs
-  ELTIM buffered balanced inputs
-  ELTIM buffered line outputs
-  ELTIM buffered balanced outputs
-  ELTIM Front Panel PCB support
-  uP controlled functioning (volume and selections)

Moet besteld worden!

Pre-330

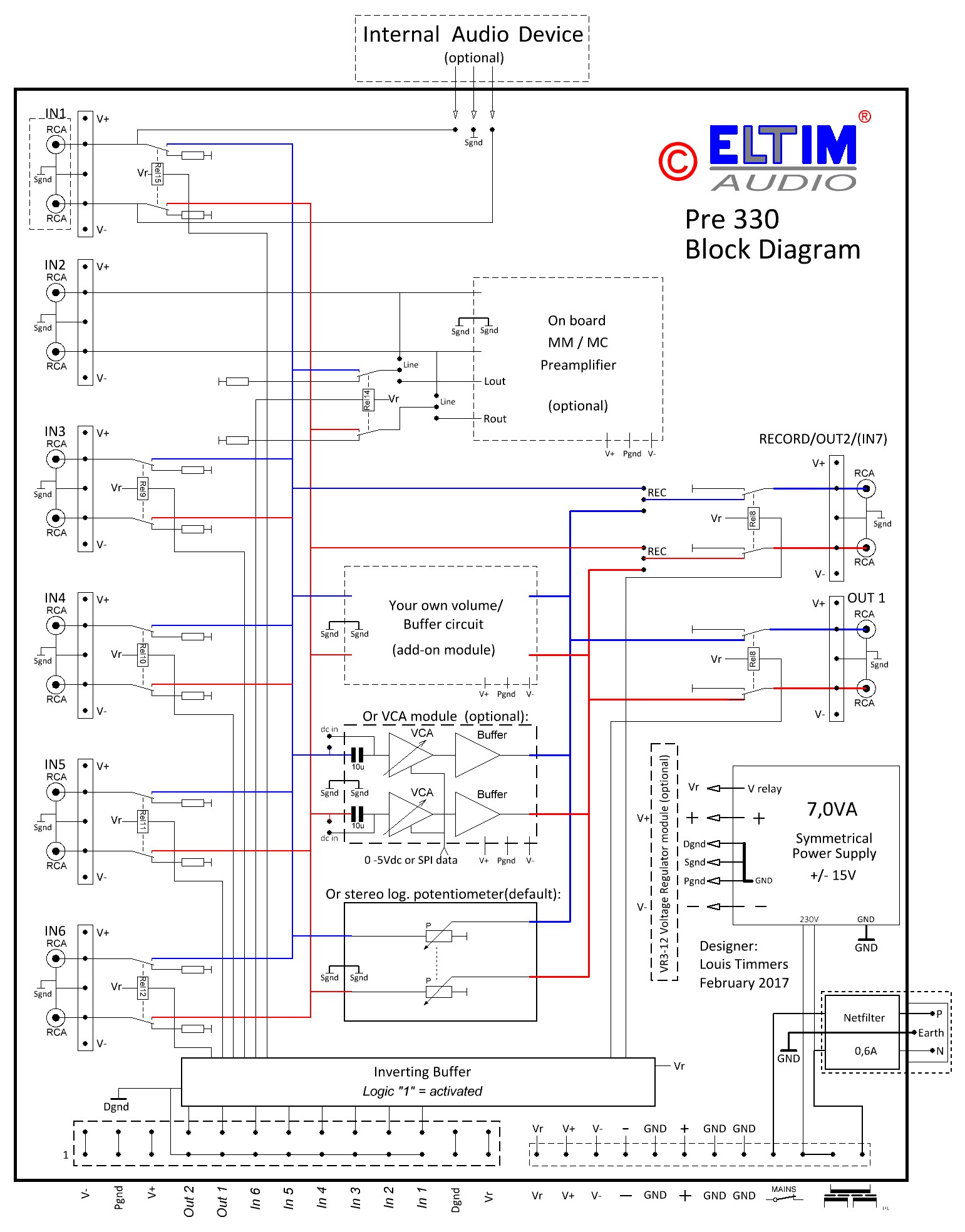

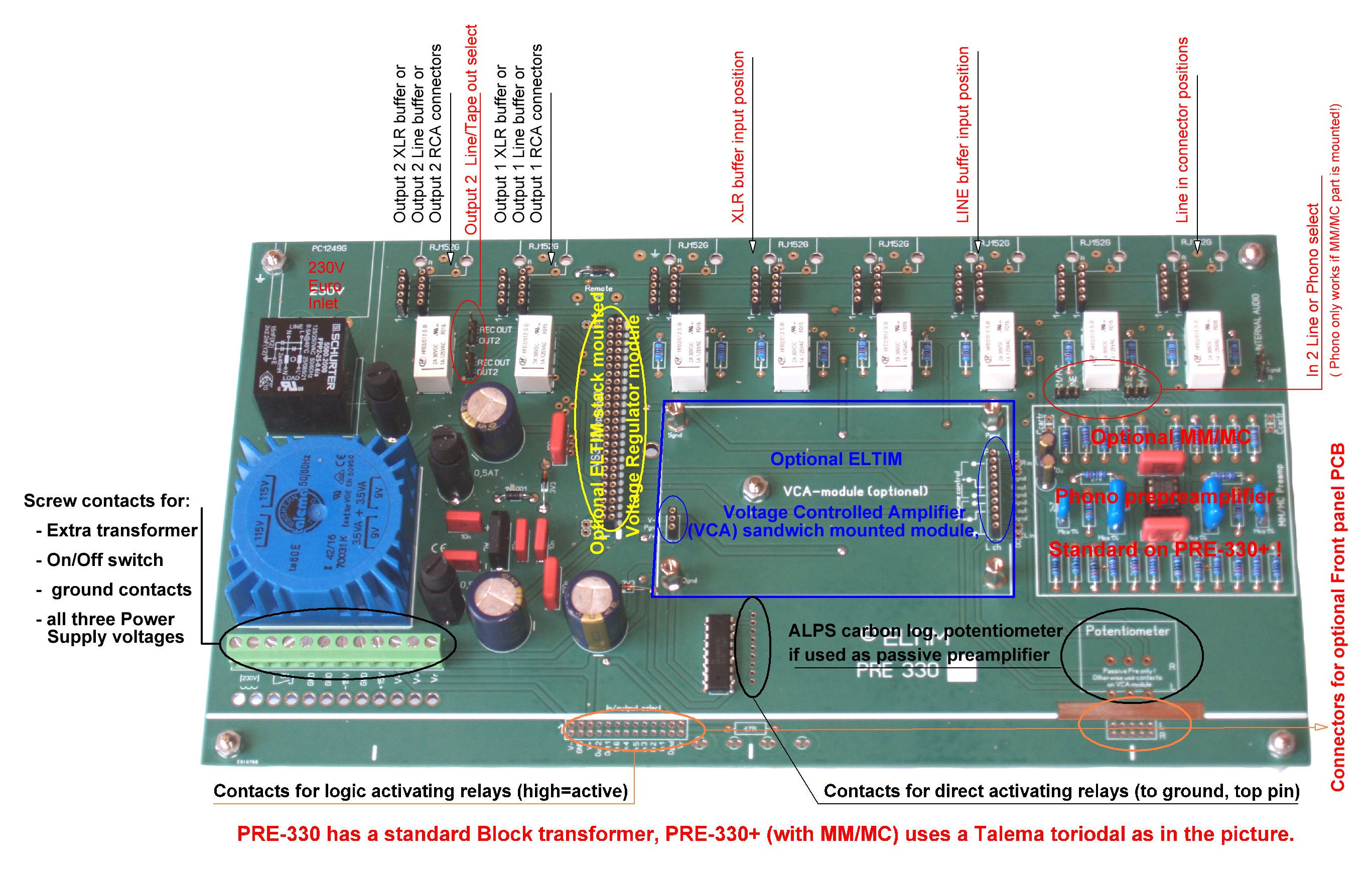

With this Pre-330 module we offer a 6 Inputs / 2 Outputs switching module with an on board Power Supply.
Standard it is a so called passive Preamplifier with electronic in/output switching function and a potentiometer volume control.
If you like, you can simply make it an active preamplifier by adding one of our VCA modules without modifications.
Instead of that you could build your own electronics, with f.e. volume/balance/tone/etc. controls.
If you want to go one step higher, add our VR3-12 Voltage Regulator module for improved sound quality.

Line input 2 can be upgraded with a MM/MC preamplifier stage at all times later.

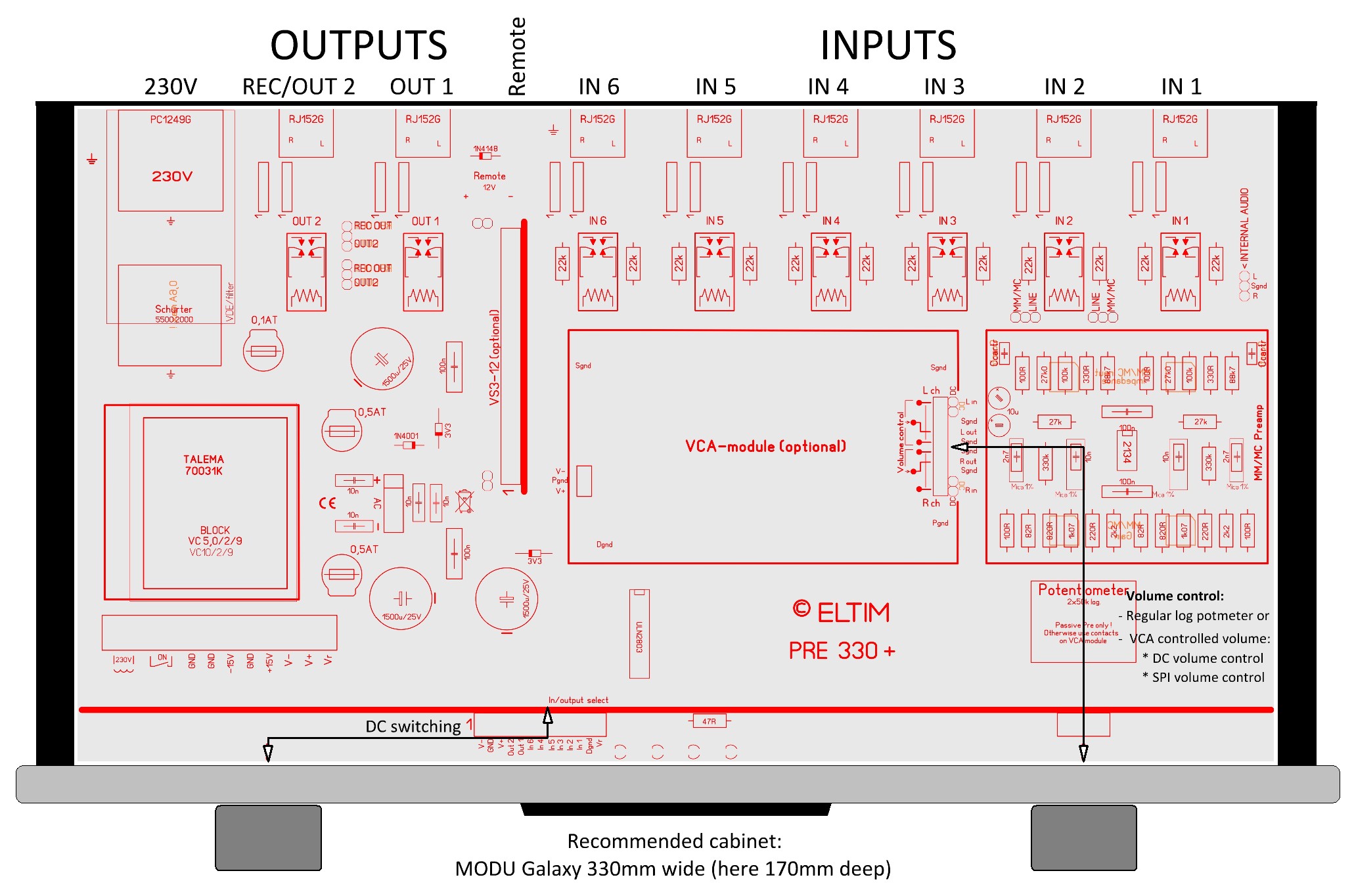

This Pre-330 module exactly fit in the nice and cost effective MODU Galaxy 330x170mm cabinets.
Of course, you also can mount them in any larger cabinet as well, f.e. in MODU Slimline

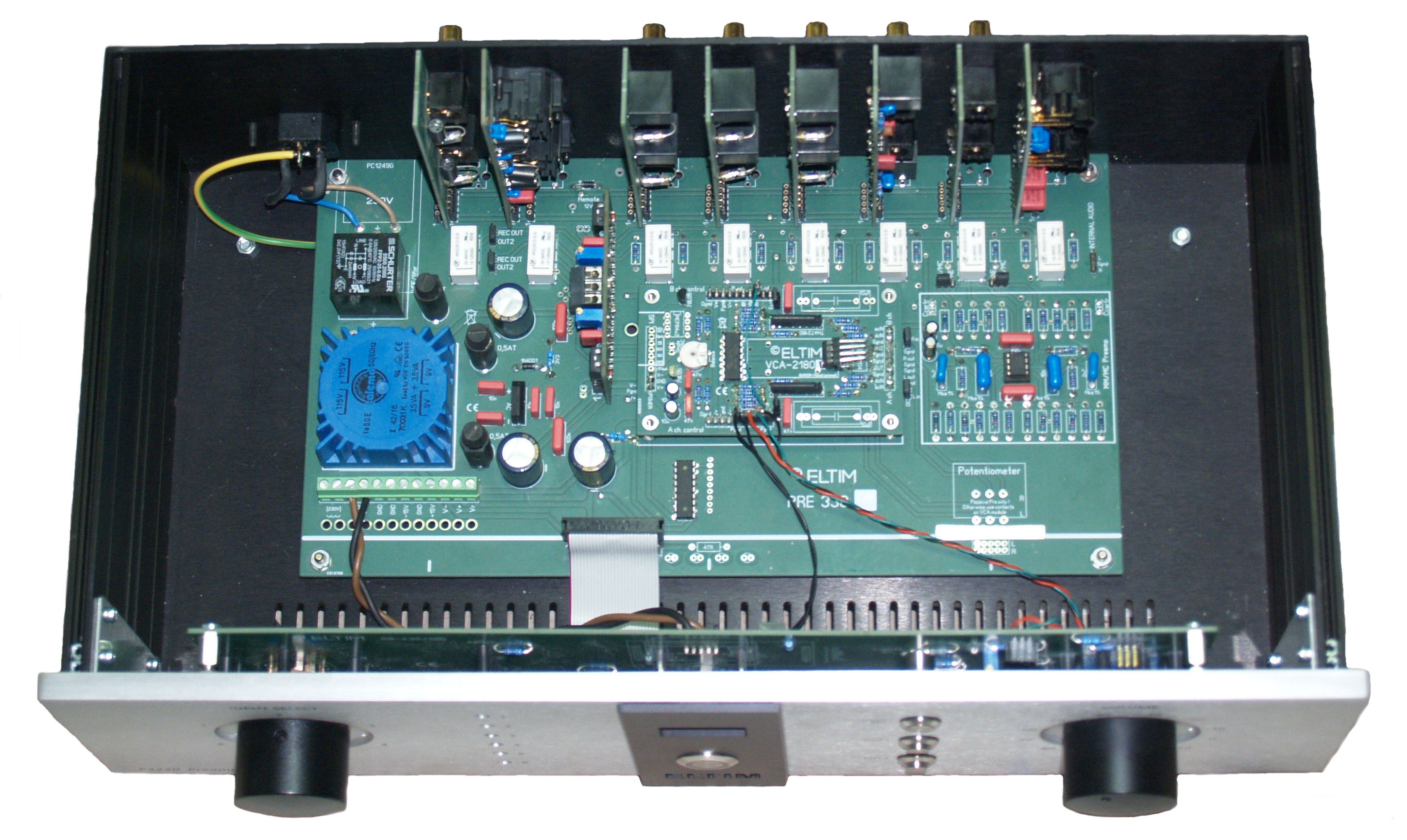

Our prototype with MM/MC part in a MODU Slimline 3U/230mm with (too) small in/out modules.

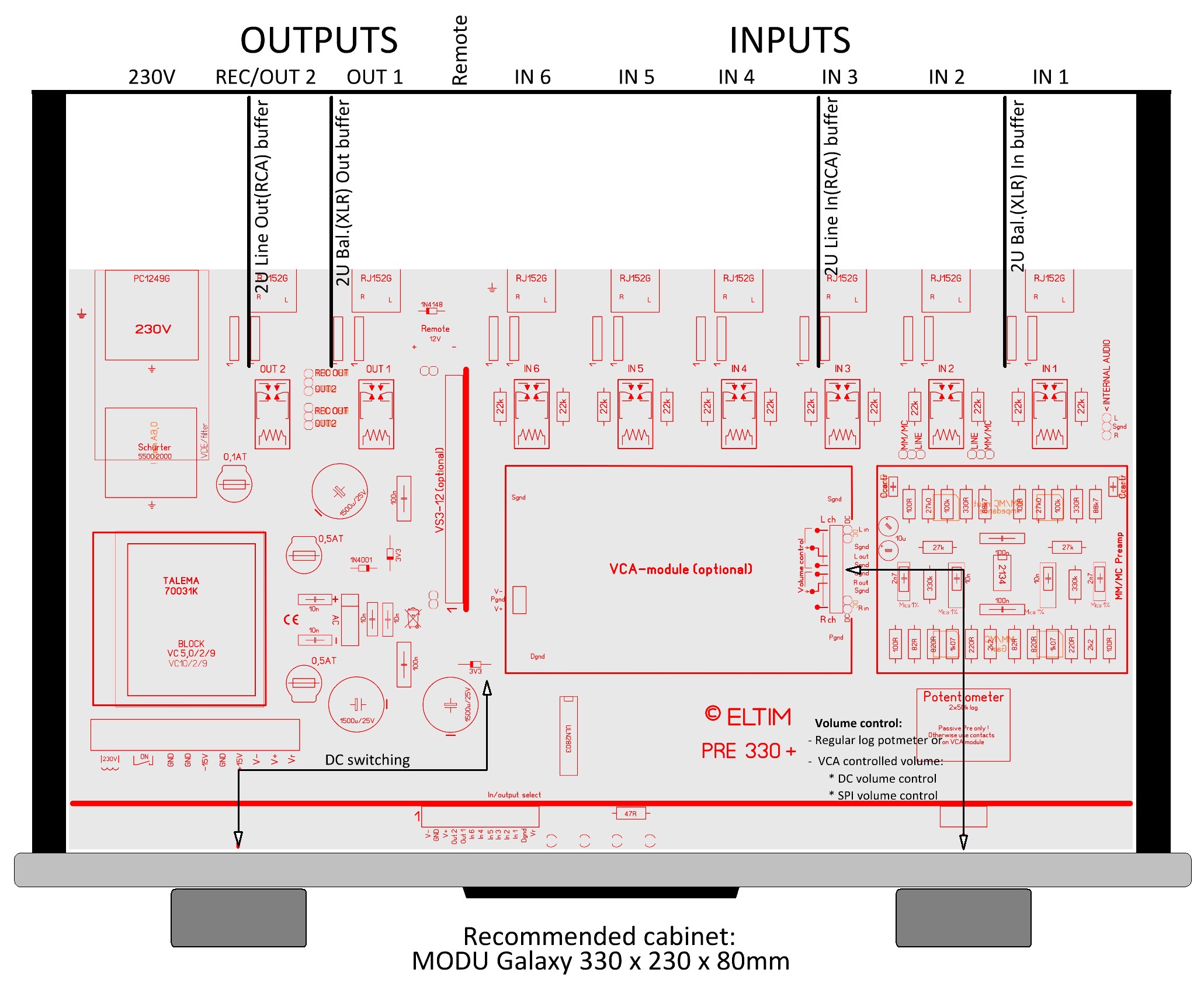

We made new ones for 2U/230mm and 3U/280mm cabinets.
Check the YouTube tour through this preamplifier.
We demonstrated it at X-Fi premium Audio Show in 2019.
