ELTIM PS-0, netvoeding connecting kit

Basic netvoeding connecting kit voor CS-modules

€ 23,95 *Prijzen zijn inclusief btw € 19,79 exclusief btw €

Fabrikant: ELTIM
Artikelcode: PS0kit

0 ster(ren) met 0 review(s) Schrijf een review

Moet besteld worden!

Aantal

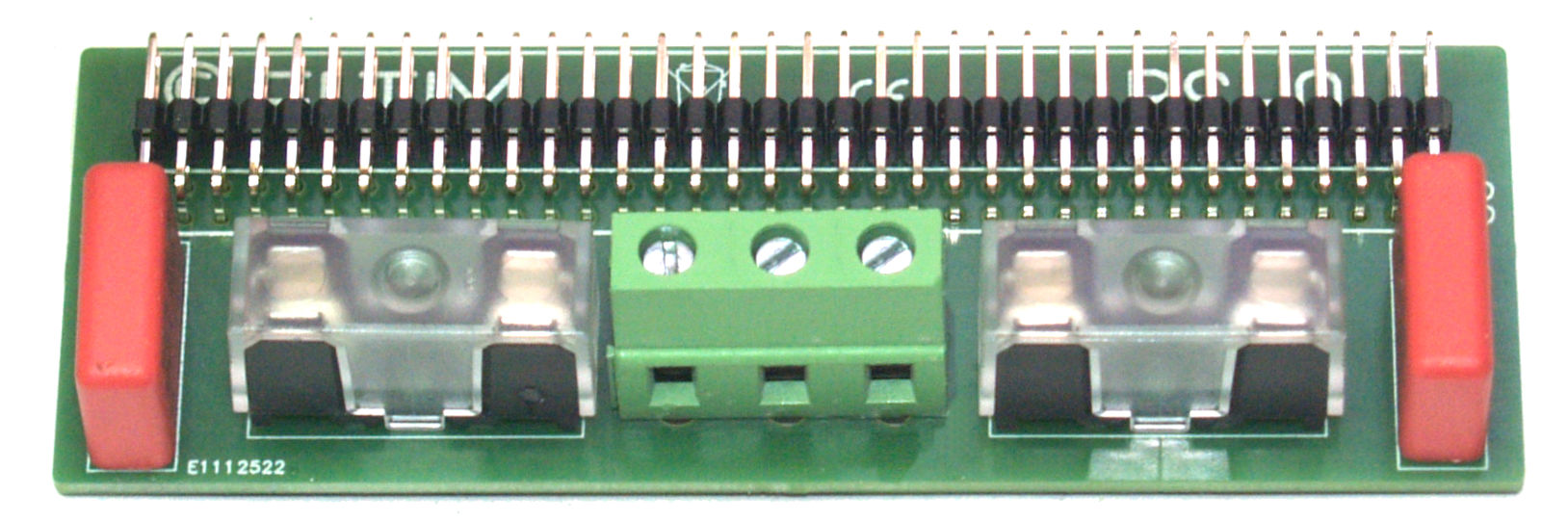

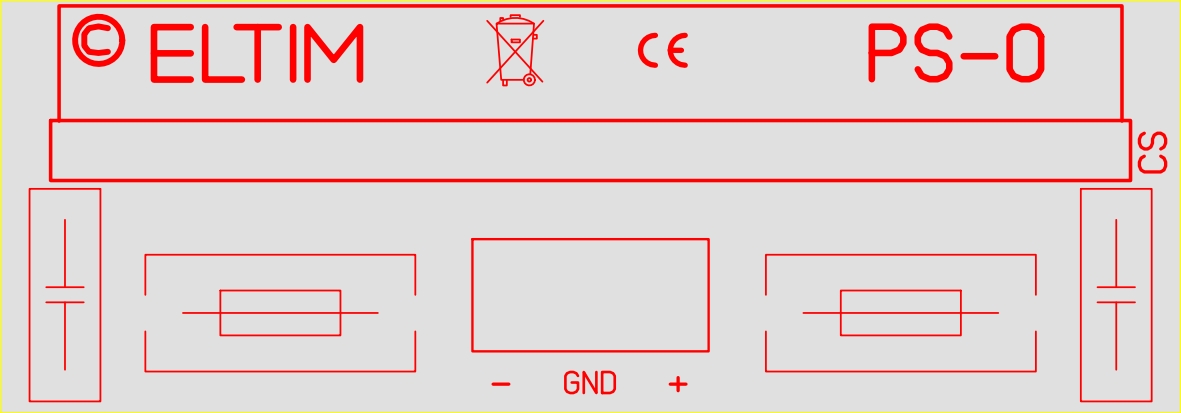

Regular PS-0 version, meant to connect another than ELTIM Power Supply module to our CS-40/80/120/165.

With this all 24 supply connections and 20 ground connections are made correctly.

There are also capped fuses and space for tho nice MKP capacitors.

3-Pole screw terminal for connecting a symmetrical power supply.

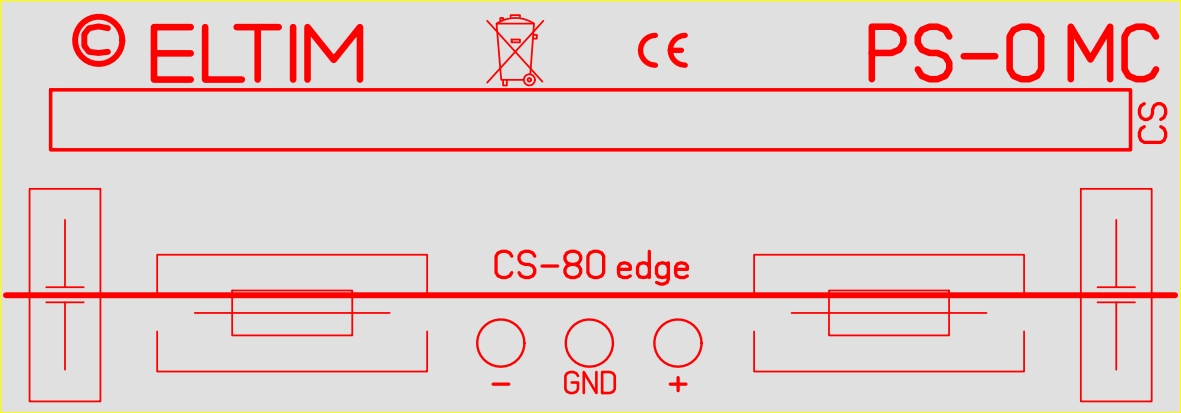

Version for Multichannel setups. Basically the same as above, but with vertical header connector.

PS-0 sticks out just above CS-80/120/165, so three thick copper supply wires can lead just over them ( O-connections)

to all the other modules and the symmetrical power supply. Simple, clean and easy to wire.

In both cases we recommend to mount some supply capacitance on the CS-80/120/165 as well for optimal results.
