THAT 2180AL-08, BlackMerTM VCA IC, SIP8

THAT 2180AL-08, BlackMerTM VCA IC, SIP8
€ 27,40 *Prices include VAT € 22,64 excluding VAT €
Manufacturer:  THAT
Article code:  THAT2180AL08
0 star(s) in 0 review(s) Write a review
Pre-trimmed BLACKMER® Voltage Controlled Amplifier (VCA)


Wide Dynamic Range: >120 dB

Wide Gain Range: >130 dB

Exponential (dB) Gain Control

Low Distortion: < 0.01 %

High slew rate: 12V/µS

Wide Gain-Bandwidth: 20 MHz

Dual Gain-Control Ports (pos/neg)

Pin-Compatible with 2150/2181-Series
In stock: 2

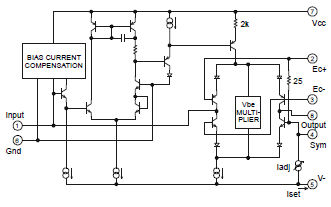

THAT 2180 Series integrated-circuit voltage controlled amplifiers (VCAs) are very highperformance current-in/current-out devices with two opposing-polarity, voltage-sensitive control ports.

They offer wide-range exponential control of gain and attenuation with low signal distortion.

The parts are trimmed at wafer stage for low THD and control-voltage feedthrough without further adjustment.

The VCA design takes advantage of a fully complementary dielectric isolation process which offers closely matched NPN/PNP pairs, to deliver discrete performance at IC prices.

The parts are available in three grades, selected for factory trimmed distortion, allowing the user to optimize cost vs. performance. Even lower distortion figures can be found in the 2181 series.

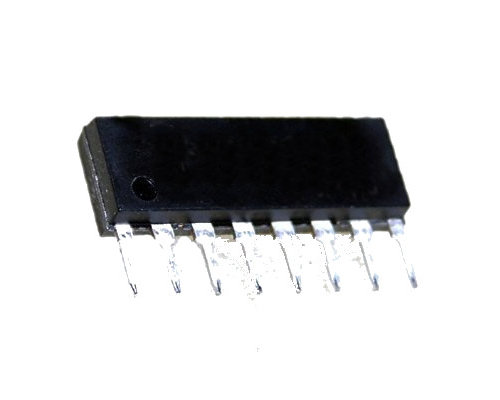

The 2180 Series is available in an 8-pin single-in-line (SIP) package.
