ELTIM BoutLin-1646, line to balanced converter module, 6dB

Converts a line signal to a XLR balanced signal with patented OutSmarts technology

ELTIM BoutLin-1646, line to balanced converter module, 6dB
€ 47,95 VAT% is Country dependent! € 39,63 excluding VAT €
Manufacturer:  ELTIM
Article code:  BoutLin1646
0 star(s) in 0 review(s) Write a review
  • Buffers an internal line signal
  • Converts it to a balanced output signal
  • 0dB, 3dB or 6dB gain (Professional)
  • Patented Outsmart technology
  • Transformer like (better) behaviour
  • 3-pole screw output connector or
  • XLR male chassis output connector
  • Blocking external RF-signals
  • Capable of feeding very long signal cables
  • MKP / NIchicon Fine Gold supply caps
  • Absorbs transient / ESD voltages
  • Supply voltages up to ±63Vdc

Production on demand

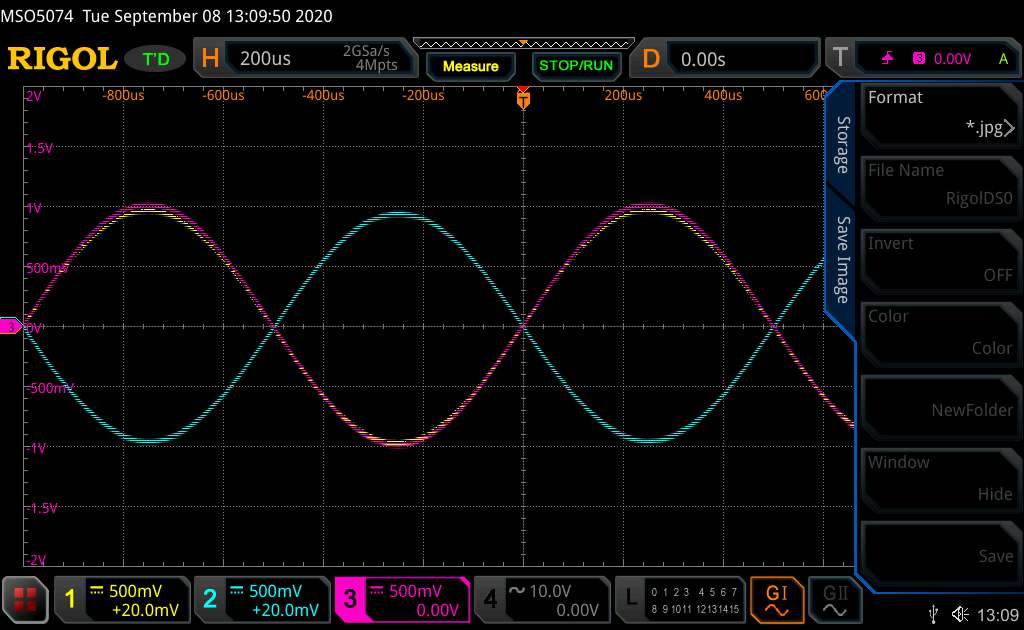

LinBout-1646 running at 1kHz/1V, 0º phase shift from input to + output.
Yellow is +out (0º),  Blue is –out (180º),  Magenta is input signal.

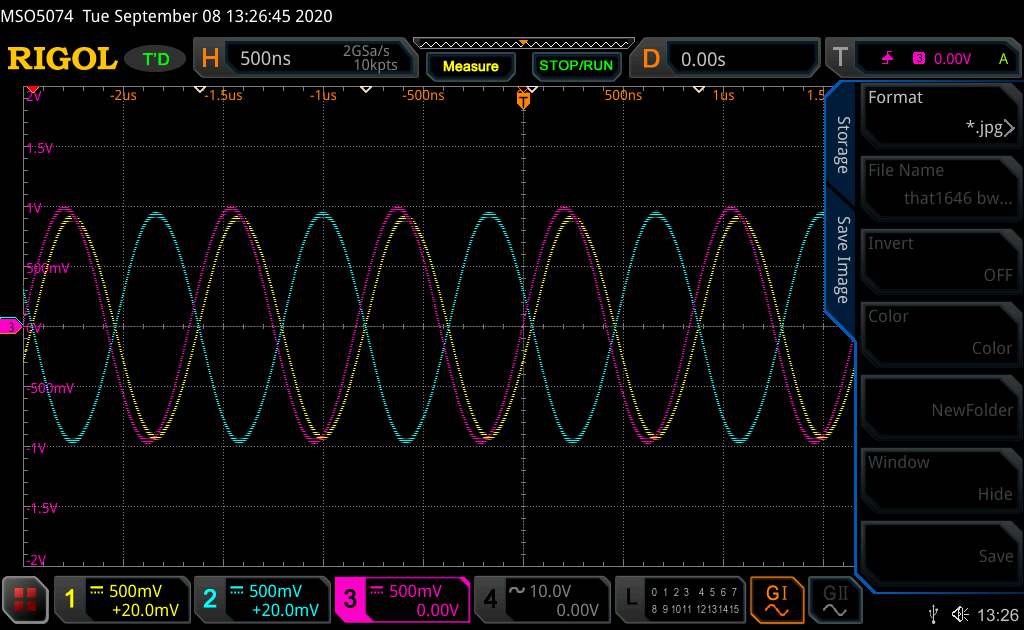

The same setup, now running under 1,2MHz /1V.
We only now see a phase shift compared to the input and a slight gain loss.
Outputs crossing at the centre line and no distortion shown.
Visible distortion shows above 1,5 MHz in a simple test situation.

NOTE: measurements done without input capacitor and Pgnd and Sgnd connected.


We have never seen a Line > Balanced circuit capable of this.
