ELTIM CS-120MB, Monoblock Output/Current stage/power supply module

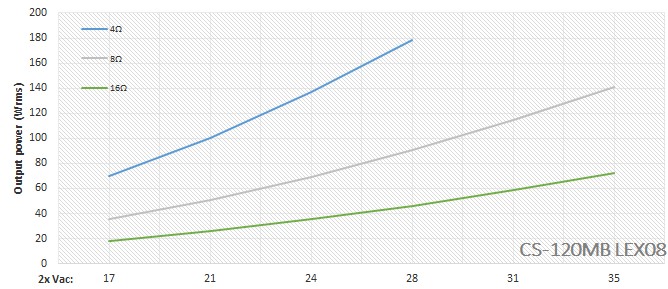

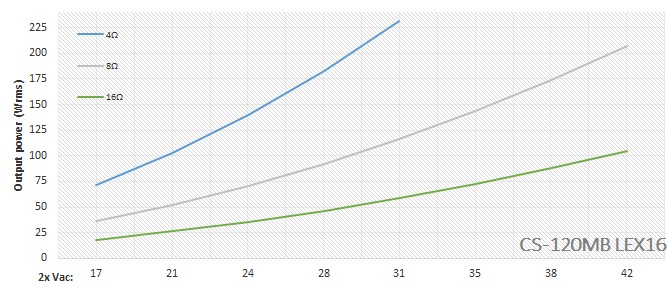

Aprox 120Wrms/4Ω, incl. on board power supply.

Momentarily not available

Manufacturer: ELTIM
Article code: CS120MB

0 star(s) in 0 review(s) Write a review

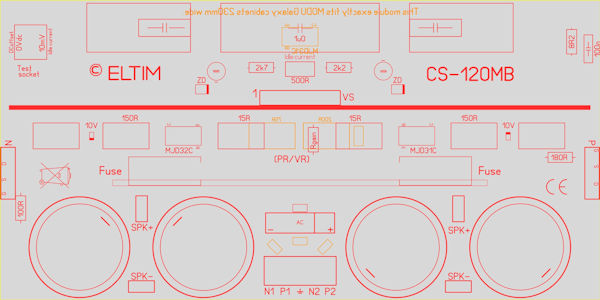

This CS-120MB Monoblock power (current) stage + power supply module highlights:

Select power EXICON Mosfets of your choice
L-mounted to aluminium profiled flanks of MODU Galaxy cabinet 230mm wide.
Power capacitors location close to the power transistors.
On board rectifier and power supply capacitor bank (not included!).
Capacitor bank with 2x 3 high-grade, low impedance Ø25/30mm (pitch 10mm) possible.
Resistor type selectable by the customer.
Possible large (Ø20x50mm) idle current MKP capcitor customer selectable.
Current driven high power feedback in the centre of PCB.
Gold plated 6,3mm faston blade speaker output terminals at left and right side.
No output coil nor capacitor in the output line resulting in way better impulse and detail behaviour.
Protection circuit - or VS-regulator board connector.
Separate Current Stage and Voltage Stage power rails.
Seperate ground tracks for input, output, VS and CS ground.
Gold plated beryllium copper, milled connectors, with multiple pin (3A) connections.
Speaker signal for signalling/protection purposes at all connectors.
PCB position to mount an NTC/PTC at centre, connected to both horizontal connectors.
Idle current can be controlled and adjusted externally by a DC-signal coming from the centre connector.
Exactly fits in MODU Galaxy 280/350mm deep versions.
Dimensions: 208x104x35/50mm, depending on capacitor types used.

Production on demand.

Power Transistors:

Idle current capacitor type:

Resistor type:

Power supply capacitor type:
