ELTIM CS-40ps, Output/Current stage/power supply module

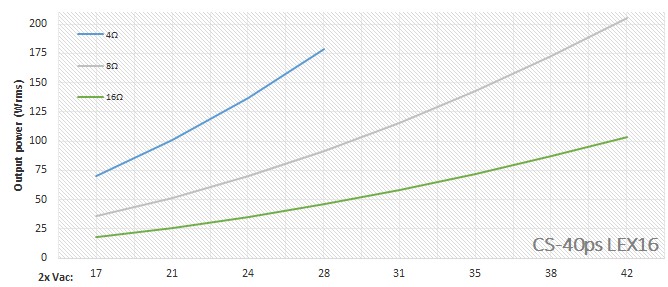

Up to 180Wrms, incl. on board power supply.

ELTIM CS-40ps, Output/Current stage/power supply module
€ 149,00 VAT% is Country dependent! After entering correct country you can login, register, search, etc. € 123,14 excluding VAT €
Manufacturer:  ELTIM
Article code:  CS40ps
0 star(s) in 0 review(s) Write a review

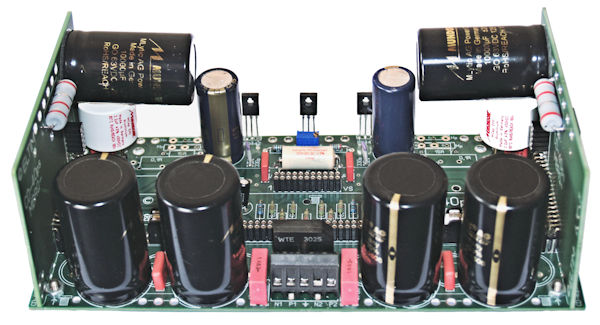

This CS-40ps power (current) stage + power supply module highlights:
  • Select the power EXICON Mosfets of your choice
  • L-mounted to heat sink, which is electrically separated from the PCB.
  • Power capacitor location close to the power transistors.
  • On board rectifier and power supply capacitor bank (not included!).
  • Capacitor bank with 2x2 high-grade, low impedance Ø25/30mm MUNDORF MLGO types (pitch 10mm) possible.
  • For low profile / cost effective solutions a capacitor bank of 2x5 Ø16mm, pitch 7,5mm caps possible.
  • For cost effective and/or low power solutions even two single Ø25x50mm axial capacitors can be mounted.
  • RF-interference blocking capacitors in strategic positions.
  • All resistors (MOX 1%) are long life Vishay components or equivalent.
  • Current driven high power feedback in the centre of PCB with multiple paralleled resistors, reducing noise.
  • Speaker output and extra Mosfet connector both left and right.
  • No output coil nor capacitor in the output line resulting in way better impulse and detail behaviour.
  • Protection circuit or VS-regulator board connector.
  • Separate Current Stage and Voltage Stage power rails.
  • Gold plated beryllium copper, milled connectors, with multiple pin connections.
  • Speaker signal for signalling/protection purposes at all connectors.
  • PCB position to mount an NTC/PTC at centre, connected to both horizontal connectors.
  • Idle current can be controlled and adjusted externally by a DC-signal coming from the centre connector.
  • Dimensions: 200x104x35/50mm, depending on capacitor types used.

Production on demand.

Ready built and tested CS-40ps Current Stage module, built according to the bespoke requirements of the customer. Just make the selections of your choice above.
For a functioning amplifier you also need at least one of our VS-modules. These are the input part of the amplifier, CS-module is the output part.



With the CD-40ps add-on modules we have in our program you can make very nice and compact Monoblocks based on MODU Galaxy 230x280x80/120mm.
These modules are mounted instead in the vertical connectors of a CS-40PS CB module:

CS-40ps CB module with headers instead of power Mosfets.
Left and right the now mounded CD-40ps Monoblock add-on modules.
The Mosfets are mounted outside and are cooled by the ribbed side profiles of the Galaxy cabinet:


Dimensions exactly match this MODU Galaxy 280x230mm cabinets.
8A Mosfets fit in 80mm and 16A Mosfets in 120mm high enclosures.
Its up to you, a compact reference quality monoblock capable to deliver up to 200Wrms.....
Actually we demonstrated these at X-Fi audio show Veldhoven (NL) 2019:

This demonstration was performed with an 8A EXICON Mosfet pair setup.
The casing was just a MODU Galaxy 230x280x80mm version.




Extra's:

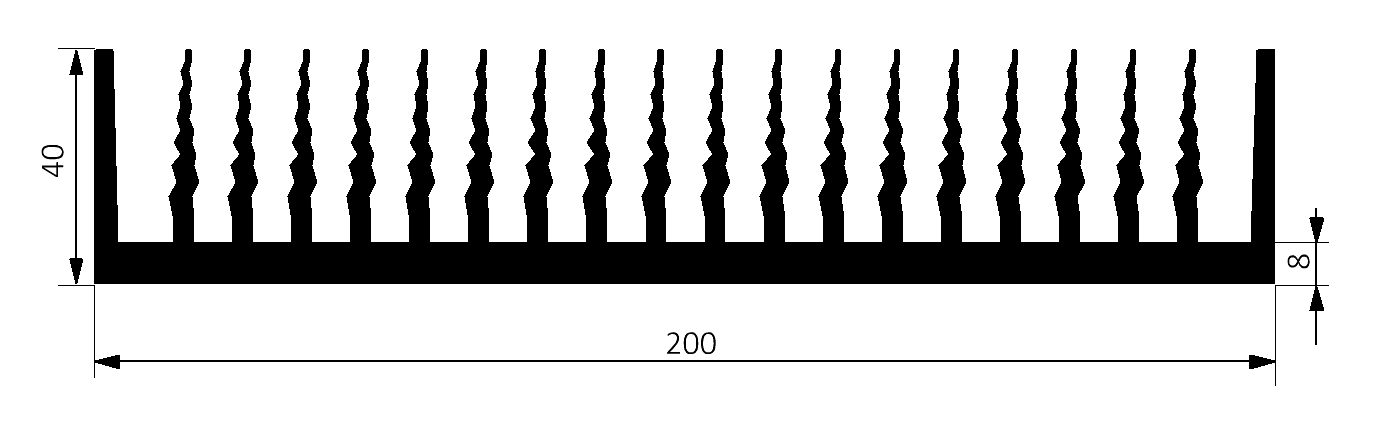

Heatsink, 250x50x40mm, 0,9K/W

Heatsink, 250x50x40mm, 0,9K/W
34mm fingers, 0,9ºK/W

€ 19,51 € 10,57 € 8,74 excluding VAT
MODU 3PD02200, heatsink 80x200x40mm, black, 0,67ºK/W

MODU 3PD02200, heatsink 80x200x40mm, black, 0,67ºK/W
32mm fingers, 0,67ºK/W

€ 26,62 € 19,60 € 16,20 excluding VAT
TOROIDY TTSA0300, Audio Grade toroidal transformer, 300VA

TOROIDY TTSA0300, Audio Grade toroidal transformer, 300VA
300VA, Ø130x44mm, encapsulated in mylar tape, electric shielded.

€ 117,50 € 97,11 excluding VAT
Details
MODU Dissipante 1NPD02300B, 10mm silver front, 448x313x82mm

MODU Dissipante 1NPD02300B, 10mm silver front, 448x313x82mm
Internal 365x300x80mm, Front 450x90x10mm, 1mm steel top/bottom panels

€ 137,76 € 113,85 excluding VAT
MODU Slimline 1NSL02280S, 10mm silver front, 435x293x82mm

MODU Slimline 1NSL02280S, 10mm silver front, 435x293x82mm
Internal 415x280x80mm, front 450x90x10mm, 1mm steel top/bottom panels

€ 88,64 € 73,26 excluding VAT
TOROIDY TTS0300, toroidal transformer, 300VA

TOROIDY TTS0300, toroidal transformer, 300VA
300VA, Ø130x44mm

€ 71,90 € 59,42 excluding VAT
Details
TOROIDY TTSAS0300 Supreme Audio Grade toroidal trafo, 300VA

TOROIDY TTSAS0300 Supreme Audio Grade toroidal trafo, 300VA
300VA, Ø150x65mm, encapsulated in stainless steel box, electric and electromagnetic shielded.

€ 221,30 € 182,89 excluding VAT
Details
MODU Galaxy 1NGX288, 10mm silver front, 230x293x82mm

MODU Galaxy 1NGX288, 10mm silver front, 230x293x82mm
Internal 210x280x80mm, front 240x90x10mm, 1mm steel top/bottom panels

€ 53,55 € 44,26 excluding VAT
MODU Galaxy 1NGXA288N-3U, 10mm black front, 230x293x124mm

MODU Galaxy 1NGXA288N-3U, 10mm black front, 230x293x124mm
Internal 210x280x120mm, front 240x130x10mm, full aluminium, 2mm top/bottom

€ 91,04 € 75,24 excluding VAT
