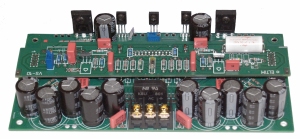

ELTIM-40ps, power amplifier / power supply module

Aprox 200Wrms. VS-10 input module + CS-40ps output/supply module

ELTIM-40ps, power amplifier / power supply module
€ 259,00 *Prices include VAT € 214,05 excluding VAT €
Manufacturer:  ELTIM
Article code:  ELTIM-40ps
0 star(s) in 0 review(s) Write a review
Technical specifications:

Frequency range:
DC - >180kHz within 0,2dB
-3dB point:
> 450kHz
In-out phase shift:
<0,5º (20-16000Hz), -3º@20kHz
Distortion figure (THD):
< 0,001%   (1W/1kHz/8ohm)
< 0,002%   (80W/1kHz/8ohm)
Slew rate:
> 65V/uS  (@ +/- 30V). Limited by RF-input filter on VS-module.
Harmonics:
<< -60dB, nonspecific, see graph right below. Ignorable
Damping factor:
> 200 (depending on power Mosfets and supply capacitors used)
Input voltage:
1 Volt
Input impedance:
47kOhm
Output power:
30-200Wrms, depending on model and supplied voltages.
Supply voltage:
Dual secondary transformer, depending on required power.
Dimensions:
209x104mm, height depends on type of supply capacitors used.
We need to order it!

Ready built and tested ELTIM-40ps power amplifier module with preselected VS/CS combination, to be selected above.
The on board power supply is capable to deliver 200W max.

PICTURE SOON


Module quality/
Parts used
High-End (HE)
Reference  (REF)
Input module:
Input capacitor:



Output Module:
Power Mosfets
8A / TO247, 200V
16A / TO264, 200V
Electrolytic capacitors
4x  NICHICON LKG Audio Grade, 10.000uF/63V, 105º
4x   MUNDORF MLGO Long Life, Audio Grade, 10.000uF/63V, 125º
Idle current capacitor
Power resistors
5%, low induction
1%, induction free
Other resistors
Any MOX type 1%
DALE RN60, military grade


Voltage Regulator module:
None
VR3-30  Regulates VS-20 module supply down to ±30V



PCB's:
Eurocircuits (EU) made, FR4+, 2x35um, tin plated solder isles
Solder
Any regular solder

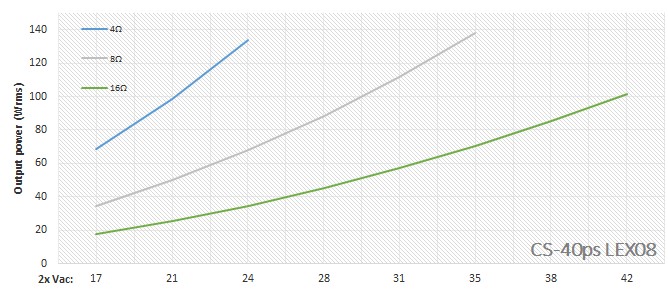

ELTIM-40ps HE version power / supply graph with 8A Exicon Mosfets

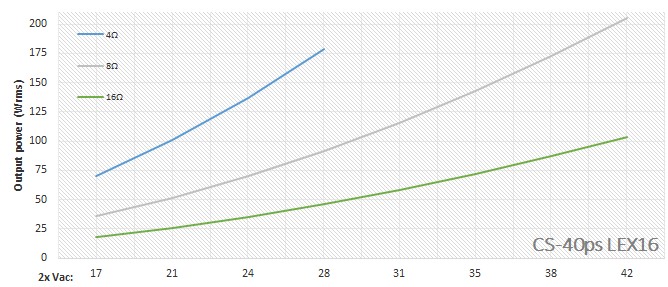

ELTIM-40ps REF version power / supply graph with 16A Exicon Mosfets

Aquire a transformer with two secondary windings, matching to the required power
as shown in the graphs horizontal bars. F.e. 2x 24Vac gives around 70Wrms in 8ohms.

Extra's:

Heatsink, 250x50x40mm, 0,9K/W

Heatsink, 250x50x40mm, 0,9K/W
34mm fingers, 0,9ºK/W

€ 19,51 € 11,41 € 9,43 excluding VAT
MODU 3PD02200, heatsink 80x200x40mm, black, 0,67ºK/W

MODU 3PD02200, heatsink 80x200x40mm, black, 0,67ºK/W
32mm fingers, 0,67ºK/W

€ 26,62 € 22,00 excluding VAT
TOROIDY TTSA0300, Audio Grade toroidal transformer, 300VA

TOROIDY TTSA0300, Audio Grade toroidal transformer, 300VA
300VA, Ø130x44mm, encapsulated in mylar tape, electric shielded.

€ 117,50 € 97,11 excluding VAT
Details
MODU Dissipante 1NPD02300B, 10mm silver front, 448x313x82mm

MODU Dissipante 1NPD02300B, 10mm silver front, 448x313x82mm
Internal 365x300x80mm, Front 450x90x10mm, 1mm steel top/bottom panels

€ 139,15 € 115,00 excluding VAT
MODU Slimline 1NSL02280S, 10mm silver front, 435x293x82mm

MODU Slimline 1NSL02280S, 10mm silver front, 435x293x82mm
Internal 415x280x80mm, front 450x90x10mm, 1mm steel top/bottom panels

€ 93,17 € 77,00 excluding VAT
TOROIDY TTS0300, toroidal transformer, 300VA

TOROIDY TTS0300, toroidal transformer, 300VA
300VA, Ø130x44mm

€ 71,90 € 59,42 excluding VAT
Details
TOROIDY TTSAS0300 Supreme Audio Grade toroidal trafo, 300VA

TOROIDY TTSAS0300 Supreme Audio Grade toroidal trafo, 300VA
300VA, Ø150x65mm, encapsulated in stainless steel box, electric and electromagnetic shielded.

€ 221,30 € 182,89 excluding VAT
Details
MODU Galaxy 1NGX288, 10mm silver front, 230x293x82mm

MODU Galaxy 1NGX288, 10mm silver front, 230x293x82mm
Internal 210x280x80mm, front 240x90x10mm, 1mm steel top/bottom panels

€ 66,55 € 55,00 excluding VAT
MODU Galaxy 1NGXA288N-3U, 10mm black front, 230x293x124mm

MODU Galaxy 1NGXA288N-3U, 10mm black front, 230x293x124mm
Internal 210x280x120mm, front 240x130x10mm, full aluminium, 2mm top/bottom

€ 91,96 € 76,00 excluding VAT
