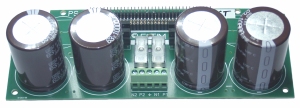

ELTIM PS-2, power supply module

Suitable for VS/CS amplifier packs delivering up to around 300Wrms. Schottky rectifier.

ELTIM PS-2, power supply module
€ 89,95 *Prices include VAT € 74,34 excluding VAT €
Manufacturer:  ELTIM
Article code:  PS2
0 star(s) in 0 review(s) Write a review

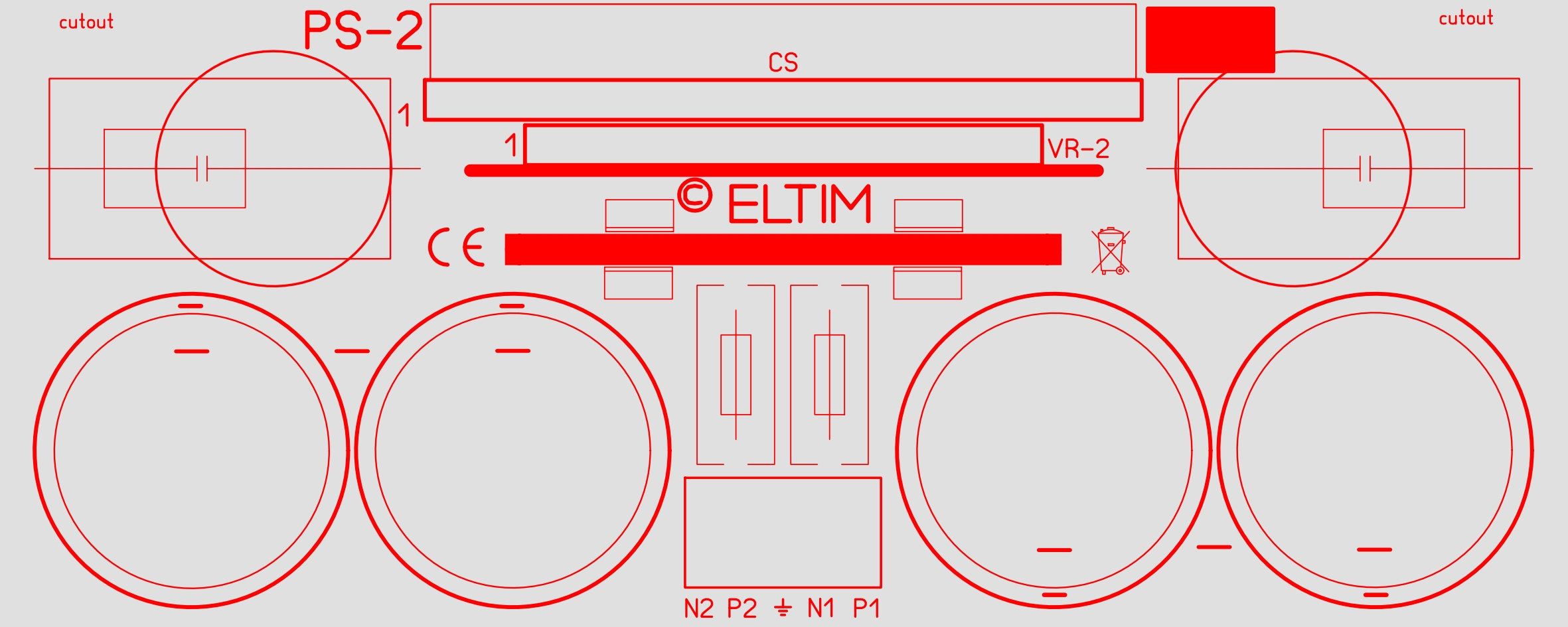

PS-2 Power Supply for ELTIM CS75/80/100/120/150/165 amplifier modules

  • L-mounted to our CS-modules.
  • High quality secondary fuseholders with dustcap.
  • High efficient Schottky rectifier diodes 10A.
  • 4x electrolytic capacitors, value//voltage customer selectable.
  • Locations for large MKP capacitors over power rails.
  • "Plug and play", without wiring except trafo connections.

We need to order it!

Our PS-2 Power Supply modules fit L-mounted to the CS-75 and up Amplifier modules.
You can select a wide range/quality/pricing of electrolytic capacitors above.
Depending the total capacity and voltage of these capacitors you could make up to 300Wrms output.
It fits up to 2x2 22000uF/63V capacitors, which is way enough for even demanding listeners.

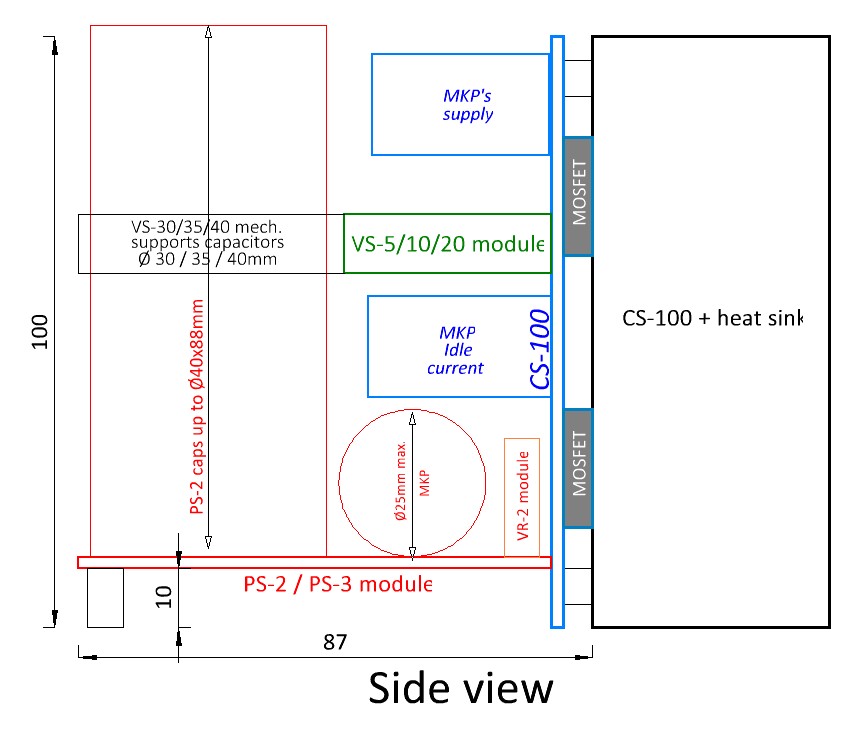

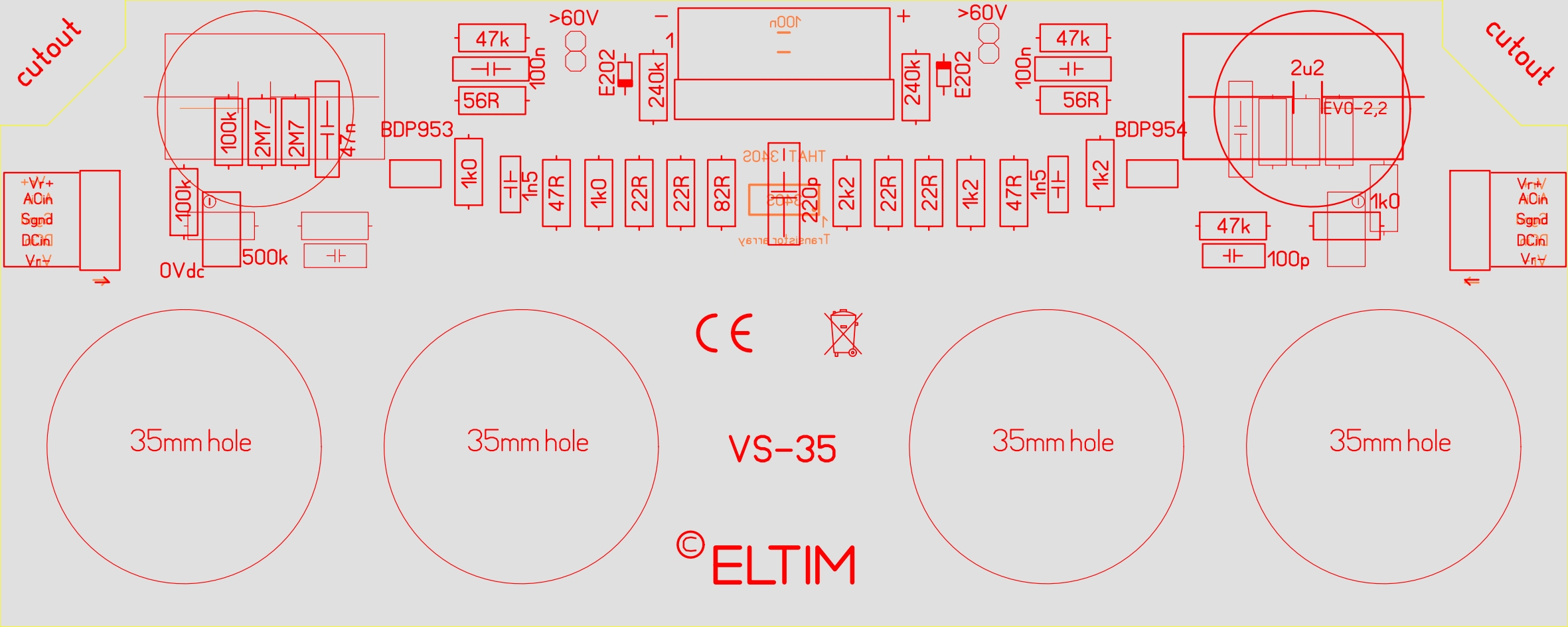

Long capacitors on this PS-2 module can mechanically be supported by our VS-30/35/40 modules:

VS-30 has Ø30mm, VS-35 has Ø35mm and VS-40 has Ø40mm holes.
