ELTIM PS-3, power supply module, supreme audio grade

Suitable for VS/CS amplifier packs delivering up to around 300Wrms. Schottky rectifier, 4-pole caps

ELTIM PS-3, power supply module, supreme audio grade
119,95 VAT% is Country dependent! After entering correct country you can login, register, search, etc. € 99,13 excluding VAT
Manufacturer ELTIM
Article codePS3
0 star(s) in 0 review(s) Write a review
Power Supply for ELTIM CS75/80/100/120/150/165 amplifier modules

  • L-mounted to our CS-modules.
  • High quality secondary fuseholders with dustcap.
  • High efficient Schottky rectifier diodes 10A.
  • 4x MUNDORF MLGO+ true 4-pole capacitors
  • Select the capacitors capacity and voltage of your choice
  • Locations for large MKP capacitors over power rails.
  • Solder tabs for external mounted capacitors.
  • "Plug and play", without wiring except trafo connections.

We need to order it!

Our top class PS-3 Power Supply module fits L-mounted to the CS-75 and up Amplifier modules.
Four 10A, fast and high efficient Schottky diodes for the rectifier. They could be cooled in high power purposes.
Due to the very special true 4-pole supply capacitors used, the choice is very limited and selected above.
Depending the total capacity and voltage of these capacitors you could make up to 300Wrms output.
It fits up to 2x2 Ø35mm capacitors, as all MUNDORF MLGO+ types are actually. Also Ø40mm just fits.
There is also space to mount some serious MKP-types over the voltage rails.

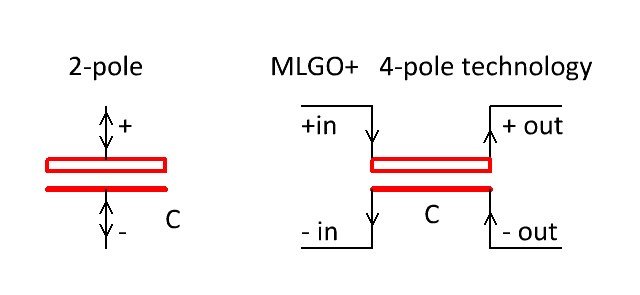

NOTE: you cannot use 2-pole, 4-pin capacitors here, since the extra pins of those
types are just for mechanical stability and mostly not even connected!
So far we only found MUNDORF MLGO+ and KEMET ALN20S (hard to find) as
true 4-poles.  Despite their different pinning both types fit,
where MLGO+ is Ø35 and ALN20S is Ø35/40mm.

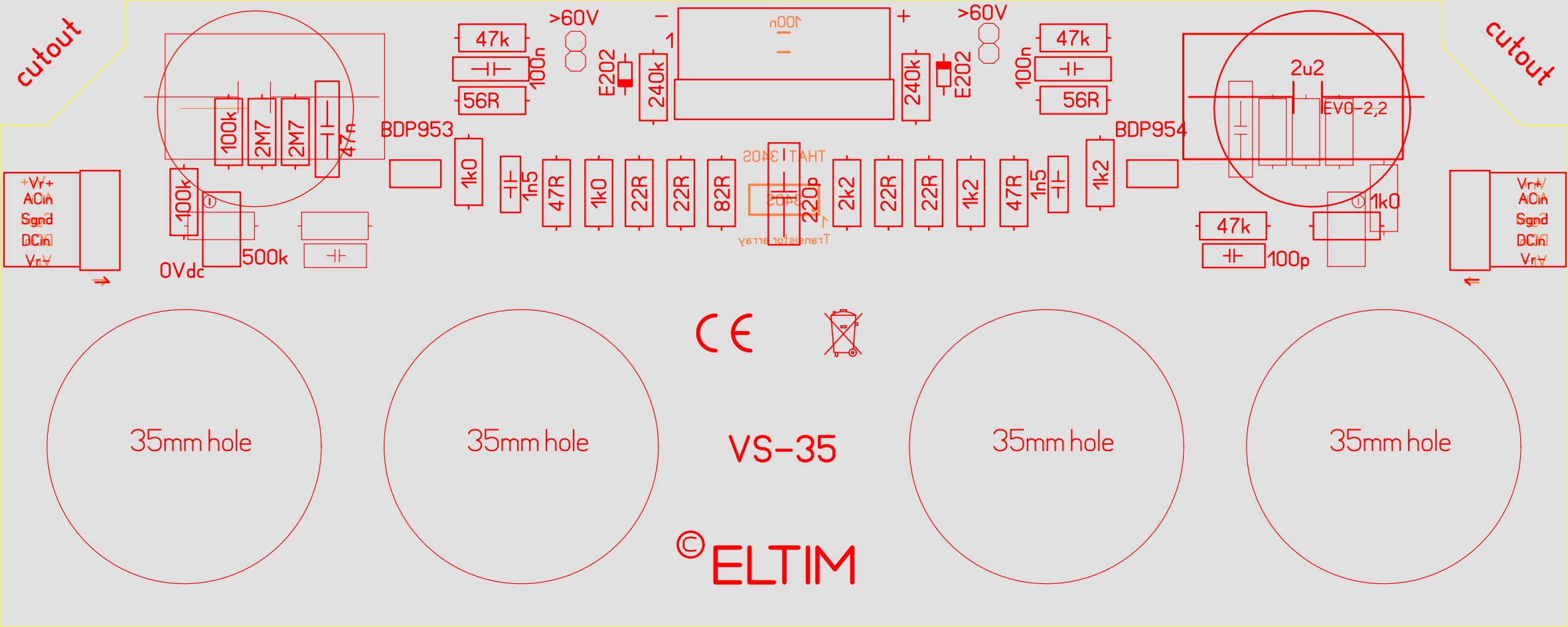

Long capacitors on this PS-3 module can mechanically be supported by our VS-30/35/40 modules:


VS-30 has Ø30mm, VS-35 has Ø35mm and VS-40 has Ø40mm holes.
Note that all MUNDORF MLGO+ types are Ø35mm, so use VS-35 then.
