ELTIM VS-10, Input/Voltage stage module

Line input AC/DC, feeds CS power boards

€ 74,95 *Prices include VAT € 61,94 excluding VAT €

Manufacturer: ELTIM
Article code: VS10

0 star(s) in 0 review(s) Write a review

Some of the highlights of this VS-10 Voltage Stage module:

Separate (upgradeable) most basic fully symmetrical pre-driving (voltage) stage
Central positioned, high voltage SMD transistors T1-T4 in the input stage.
Extremely stable, wide range Current regulator diodes (CRD’s).
DC input on left and right side. High end capacitor between this input and RCA-inlet possible.
AC (>4Hz, other on request) input on left or right side.
MKP capacitors in frequency limiting circuits.
Vr+ and Vr- available on left- and right side.
Styroflex RF-capacitor in feedback circuit.
Separated power ground and input ground tracks avoiding hum and noise.
L- or sandwich mounted to any CS-board.
Dimensions: 200x35x8mm.

Info bulletin

We need to order it!

Header connector:

Input capacitor type:

Quantity

Ready built and tested VS-10 Voltage Stage module, built according to the bespoke requirements of the customer. Just make the selections of your choice above.

For a functioning amplifier you also need at least one of our CS-modules. These are the output part of the amplifier, this VS-module is the input part.

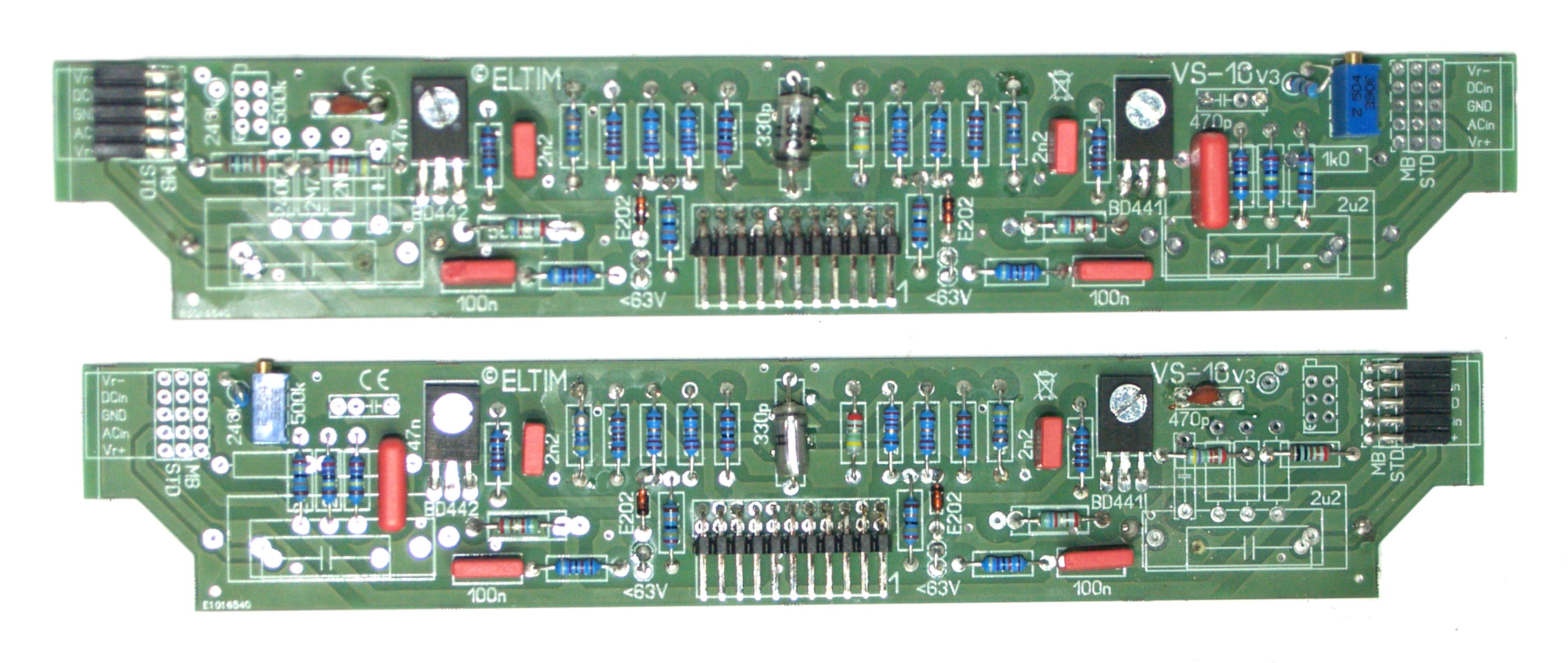

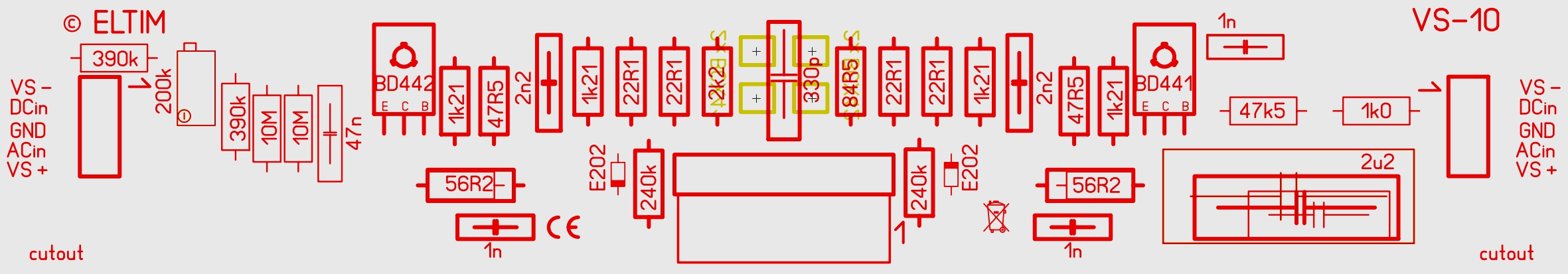

With the same VS-10 PCB you can make a left hand and a right hand side.

By mounting an angled or straight header connector you can use it L- or sandwich mounted.

Features and Specifications
