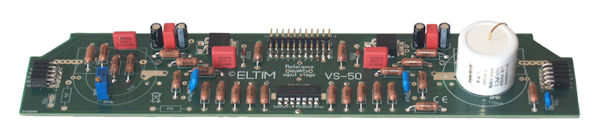

ELTIM VS-50, Input/Voltage stage module, reference quality

Feeds ELTIM CS Current Stage boards, Line input ac/dc, T1-T4 rare full symmetrical transistor array

€ 139,95 VAT% is Country dependent! After entering correct country you can login, register, search, etc. € 115,66 excluding VAT €

Manufacturer: ELTIM
Article code: VS50

0 star(s) in 0 review(s) Write a review

Some of the highlights of this VS-50 Voltage Stage module:

Separate (upgradeable) most basic fully symmetrical pre-driving (voltage) stage
Symmetrical, 500uV matched trimmed DIP14 transistor array (instead of T1-T4) input stage.
Transistor array substrate grounded to input ground, avoiding any noise and EMI.
Extremely stable, wide range Current regulator diodes (CRD’s).
DC input on left and right side. High end capacitor between this input and RCA-inlet possible.
AC (>3Hz, other on request) input on left or right side.at 2u2 side.
A variety of large 2,2uF input capacitors fit, even MUNDORF EVO types.
Low loss, 1% Mica capacitors in local feedback circuit.
VISHAY/DALE RN60D MOX resistors, 1%, 100ppm
Integrated ± voltage regulators (V+/V- max = 65V).
Vr+ and Vr- available on left- and right side.
Styroflex RF-capacitor in feedback circuit.
Separated power ground and input ground tracks avoiding hum and noise.
L- or Stack mounted to any CS-board.
Copper thickness 2x 35um (mostly is 1x 12/18um).
Dimensions: 246x50x8mm.
