ELTIM VS-50bal, Input/Voltage stage module, reference quality

Feeds ELTIM CS Current Stage boards, BALANCED and Line input ac/dc

ELTIM VS-50bal, Input/Voltage stage module, reference quality
€ 189,95 *Prices include VAT € 156,98 excluding VAT €
Manufacturer:  ELTIM
Article code:  VS50bal
0 star(s) in 0 review(s) Write a review
  • Some of the highlights of this VS-50bal Voltage (input) Stage module:
  • Reference quality input stage module with line and InGeniustm balanced input.
  • Separate, fully symmetrical input (voltage) stage, feeding any CS-output module.
  • About 98% symmetrical PCB layout, even the used transistor array IC is (so, is not an opamp!).
  • Symmetrical, extremely fast, 500uV matched/trimmed SMD transistor array in the input circuit.
  • Transistor array substrate grounded to input ground, avoiding any noise and EMI.
  • Transistor array is extra shielded by the PCB at the back and front side, also cooling it.
  • Very stable, selected, wide range Current regulator diodes in the mirror circuits (CRD’s).
  • DC input on right side. Large High-End capacitor between this input and RCA-inlet possible.
  • AC (>4Hz, other on request) input on right side (where cap. is, see picture below).
  • Input capacitor type/quality by choice in the order process. You can even use other than we list.
  • Balanced input on left side, using best possible, 100% symmetrical (THAT1200) circuitry.
  • Mica 1% capacitors in frequency limiting (800kHz) and input filter circuit.
  • Styroflex RF-capacitor in overall feedback circuit. Fast impulse behaviour.
  • VISHAY/DALE RN60 2% MOX resistors.
  • Milled, gold plated copper/beryllium copper header (3A) contacts >
  • Double sided, EU made FR4+ PCB with copper thickness of 35um.
  • Integrated power supply regulators for wide range ops. (V+/V- =  32 - 65V ).
  • Regulated +/-30V (low current) available at right side.
  • Regulated +/- 15V (low current) available at left side.
  • Bottom ground plane and most of top ground plane is signal ground.
  • Supply ground is separated from input ground.
  • L-mounted to any ELTIM CS-Current Stage module.
  • Dimensions: 246x50x8mm, exactly fitting MODU Mini Dissipante 330mm wide.


Production on demand

Ready built and tested VS-50bal Voltage Stage module, built according to the bespoke requirements of the customer. Just make the selections of your choice above.
This module is a "spin-off" of our VS-50, where we exchanged the possible mounting of a left side mounted line input possibility by a extreme high quality (better than tranformer) balanced input part.
For a functioning amplifier you also need at least one of our CS-modules. These are the output part of the amplifier, this VS-module is the input part.

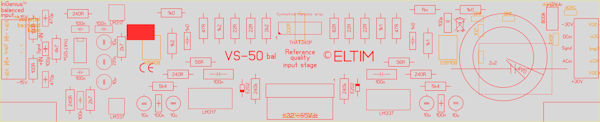

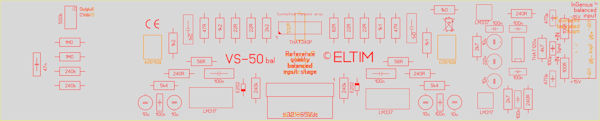

Balanced input (THAT1200) left                    CS Module                              INdc und INac input right
