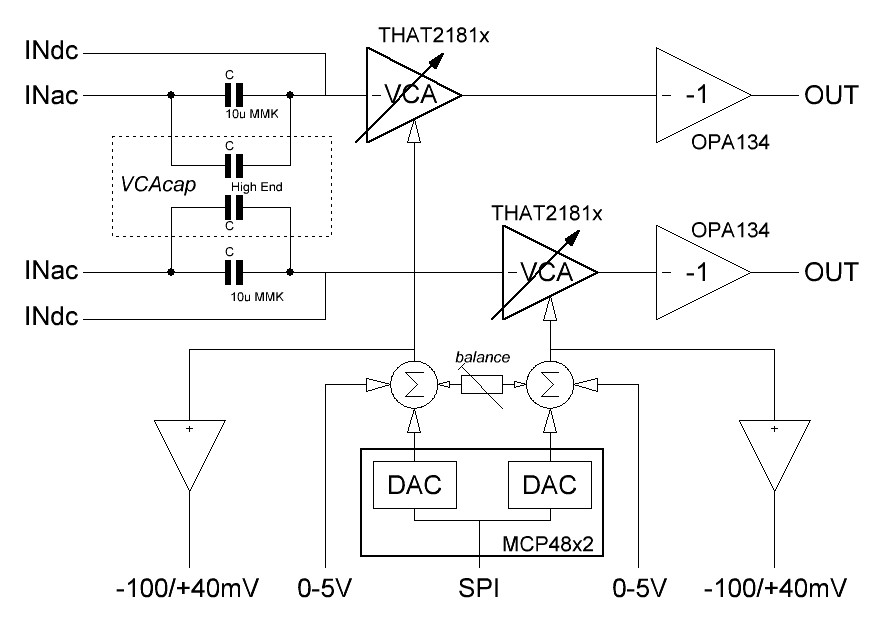

ELTIM VCA-2181A, 2-channel VCA/buffer module

-90/+30dB, 0,0025%THD, control: 0-4,8Vdc or opt. 4096 (SPI) steps of 0,025dB

ELTIM VCA-2181A, 2-channel VCA/buffer module
€ 219,00 *Prices include VAT € 180,99 excluding VAT €
Manufacturer:  ELTIM
Article code:  VCA2181A
0 star(s) in 0 review(s) Write a review
  • Ultra lineair volume control
  • Range -90 /+12dB
  • Control voltage 0 - 5Vdc
  • Option: SPI controlled
  • < 0,0025% THD

We need to order it!

Outputs DC offset can be trimmed to 0Vdc by 20 turn trimmers

ELTIM VCAcap, input capacitor PCB

ELTIM VCAcap, input capacitor PCB
Expand your ELTIM VCA setup with large, quality input capacitors.

€ 23,00 € 19,01 excluding VAT
