ELTIM CC Supply capacitors add-ons
With our new CS-75/100/150 modules we offer more compact versions of our CS-80/120/165 modules where extra supply capacitors are on board, requiring space in height. We made these new models without supply capacitors, and now they can be used in one size less high cabinet than the former ones. With these new ones the full power reserve has to come from the connected power supply. For those who want the best possible bass "punch" and absolute speaker control, we made Current Capacitor add-on modules for these three new types of CS-models. While using these modules the speaker has to be connected via the 6,3mm gold plated Faston blades on the CS-module. You can add these modules at any time you like, but keep in mind that the total width will become 296mm (48 + 200 + 48) ! Actually, even while CD-75 or CD-100 is mounted, you can add these CC-modules left and right of them making a total width of 392mm.....
![]() ![]() |

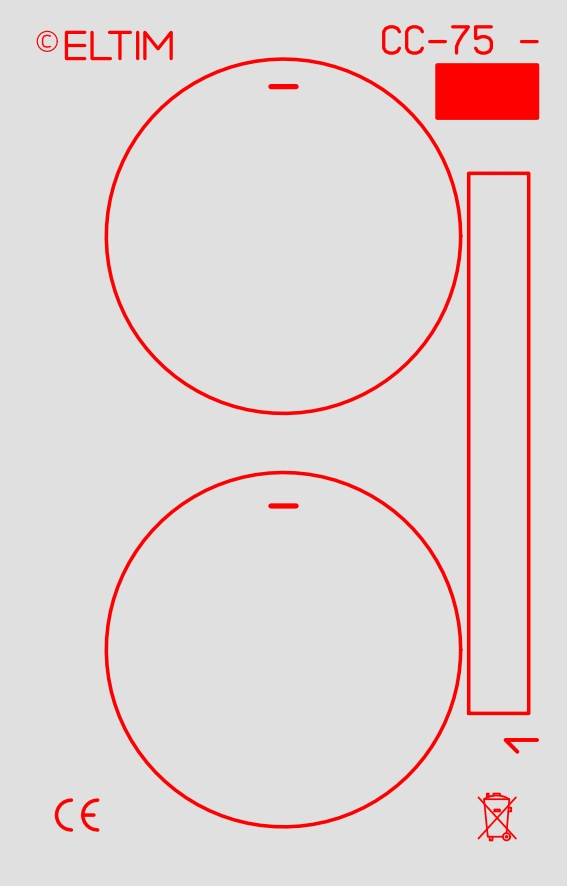

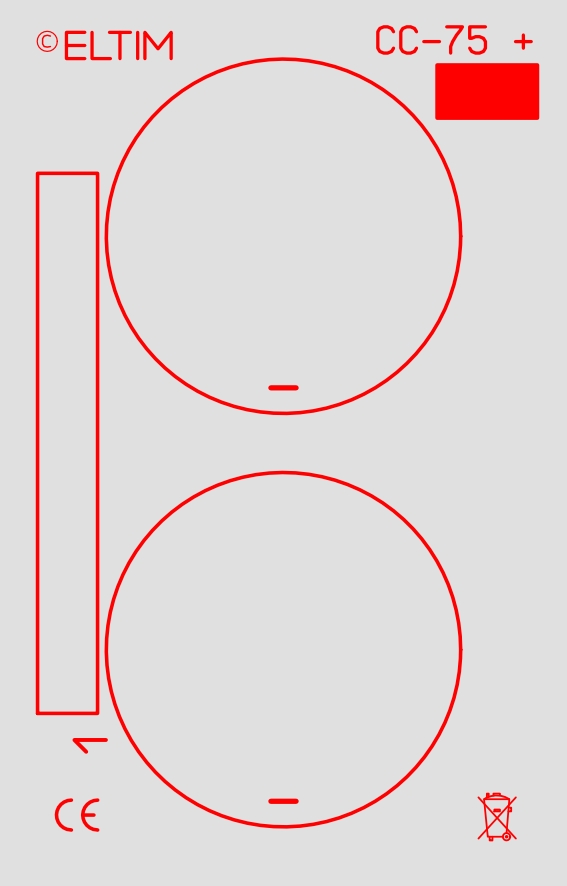

CC-75 Power supply capacitor add-on module pair
so with these cabinets no extra drilling required.
|
![]() ![]() |

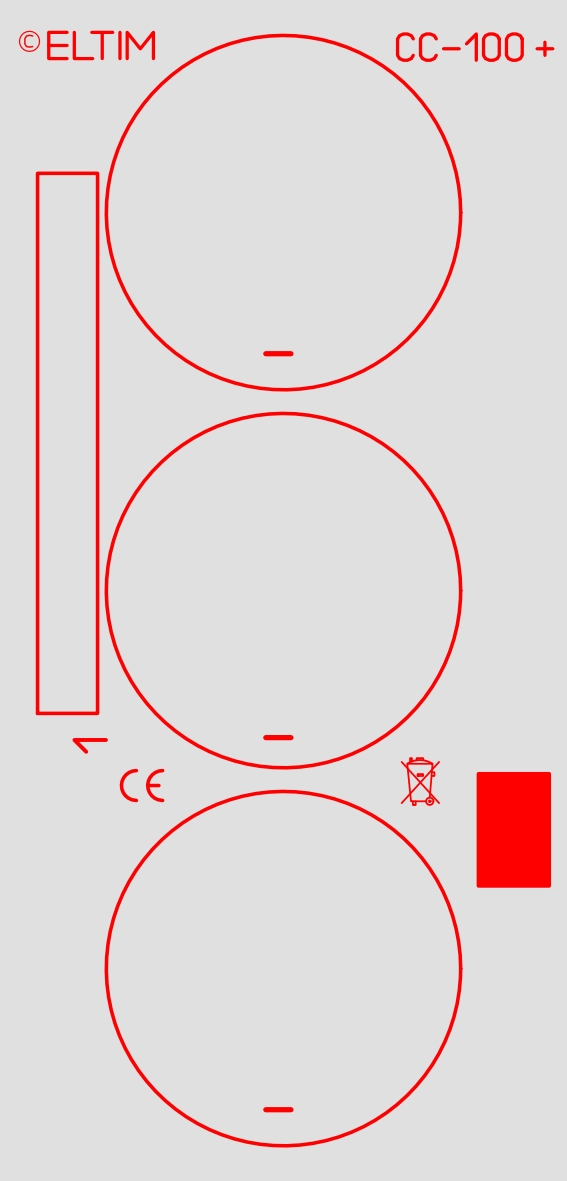

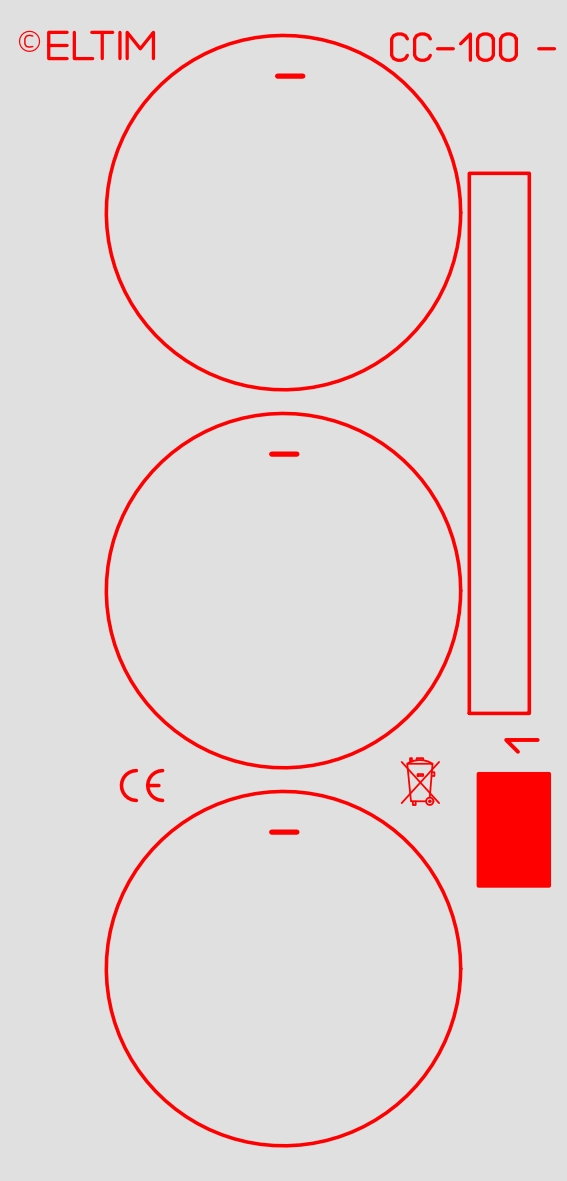

CC-100 Power supply capacitor add-on module pair
so with these cabinets no extra drilling required.
|
![]() ![]() |

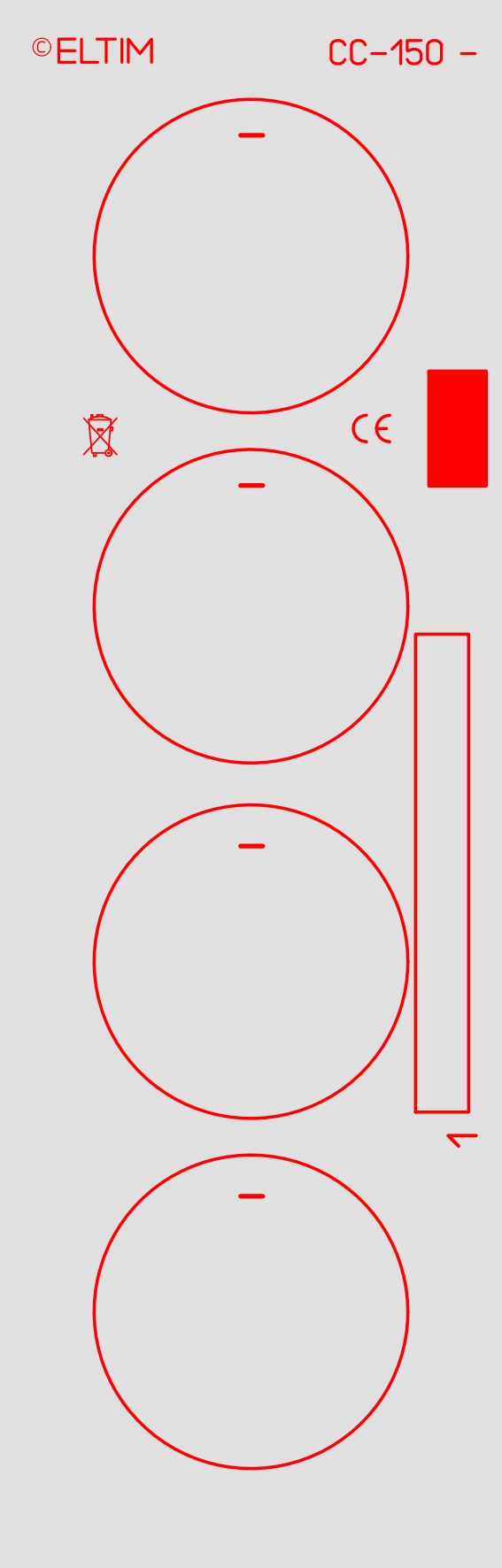

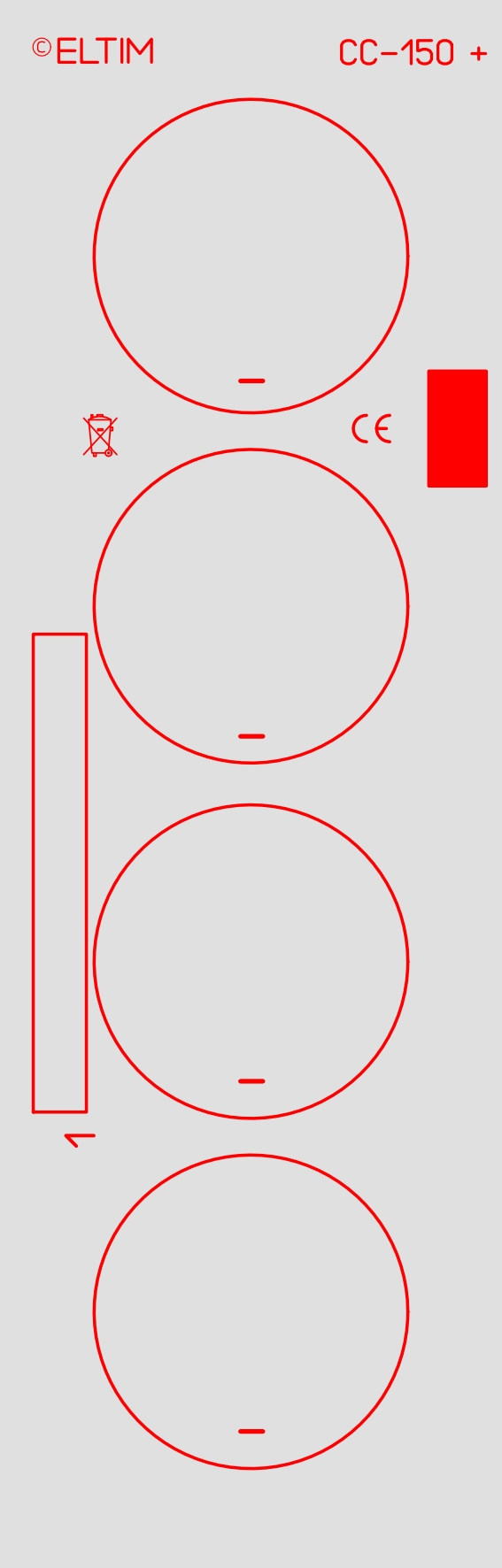

CC-150 Power supply capacitor add-on module pair
so with these cabinets no extra drilling required.
|
EXAMPLE:
![]() ![]() ![]() ![]() ![]() CC-100 - (CD-100 -) CS-100 (+ VS-xx on top of it) (CD-100 +) CC-100 +
< 296 (392)mm >

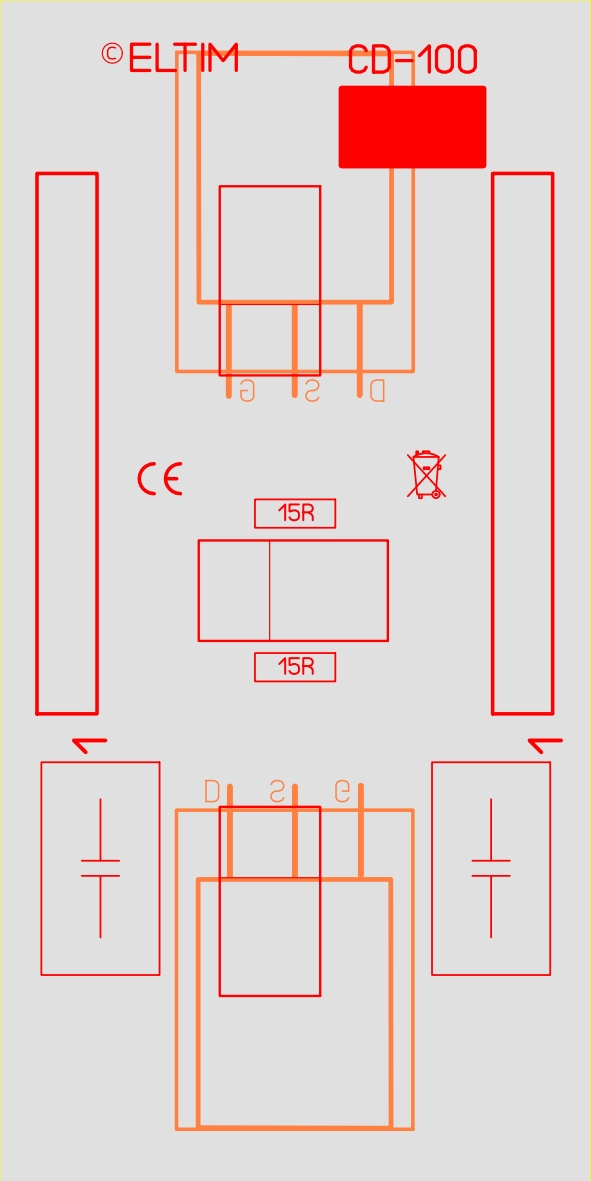

You can even use these CC-modules if a pair of CD-modules are present.

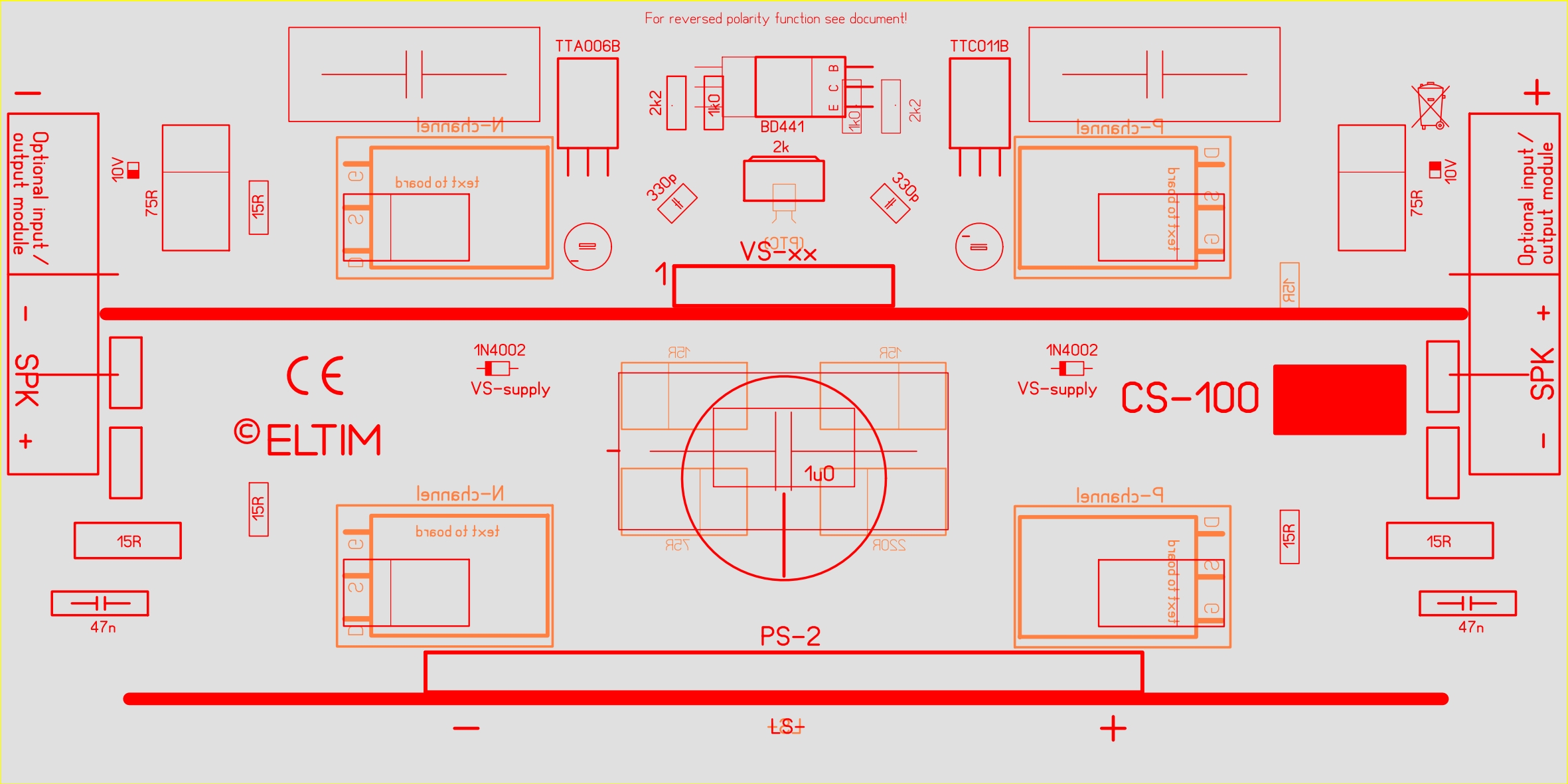

One of our Power Supply modules like PS-2 or PS-3 is connected at the centre bottom header connector.
The input of this amplifier is on the connected VS-module (always also required).
|
