ELTIM CS-35, Output/Current stage DIY kit

Aprox 100Wrms/8Ω,

€ 49,95 *Prices include VAT € 41,28 excluding VAT €

Manufacturer: ELTIM
Article code: CS35kit

0 star(s) in 0 review(s) Write a review

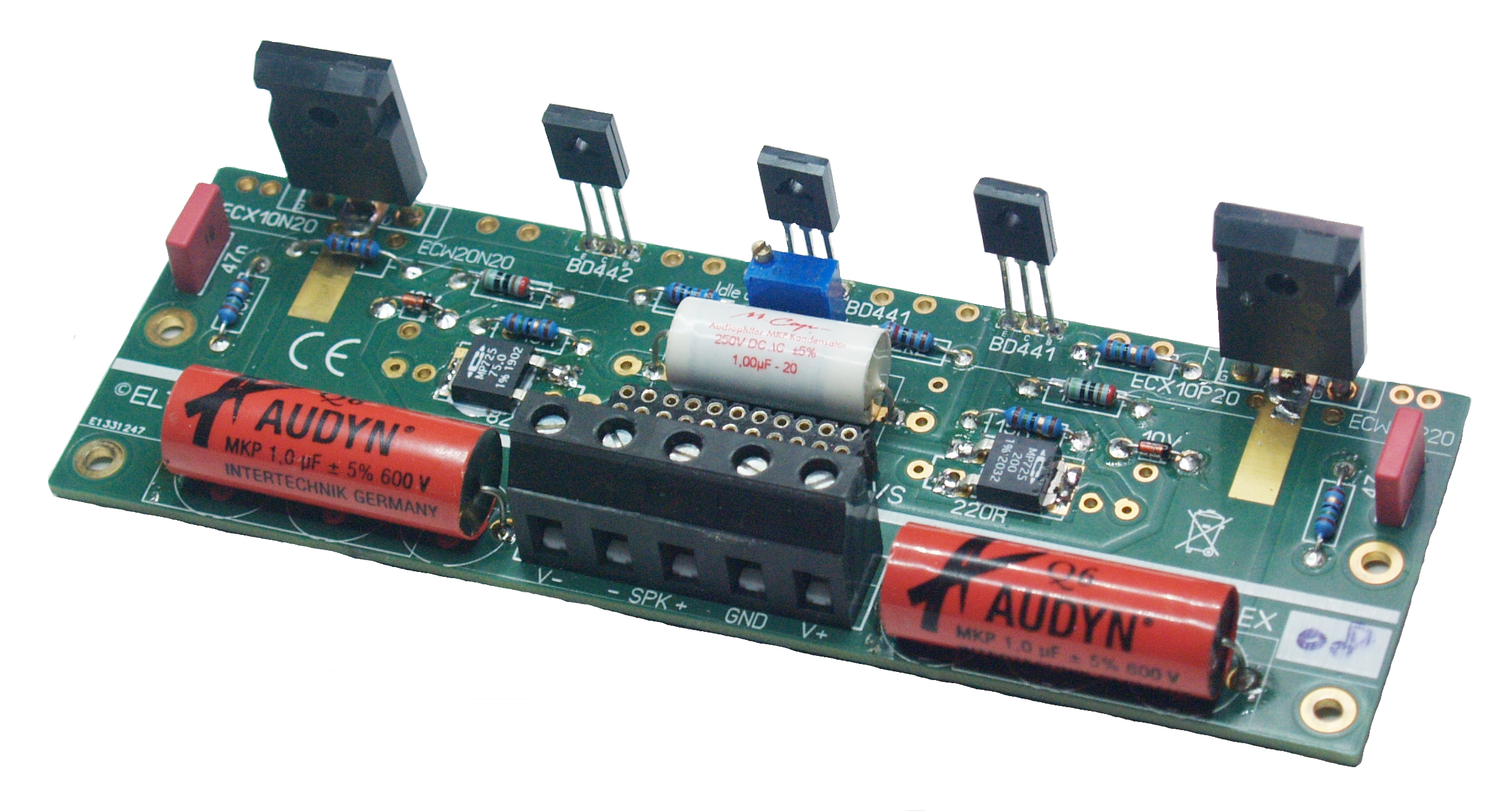

This CS-35 power (current) stage module highlights:

Select the power Hexfets (GDS) or Mosfets (GSD) of your choice
L-mounted to heat sink, which is electrically separated from the PCB.
For supporting connected power supply 2x3 Ø12,5mm, pitch 5mm elco's fit.
Instead a pair of quality MKP capacitors fit, improving sound quality.
All resistors MOX 1%. In feedback circuits also better SMD types fit.
No output coil nor capacitor in the output line resulting in way better impulse and detail behaviour.
Gold plated beryllium copper header and 20A/4mm² screw connector.
One or two CS-35 + VS-5 modules fit on top of CS-35ps, sharing the same power supply.
Dimensions: 149x50mm, height depending on power Fets types used.

Info bulletin

We need to order it!

Power Fets:

Idle current capacitor type:

Feedback resistors type:

Quantity

CS-35 Current Stage DIY kit, with all the selected parts. Just make the selections of your choice above.

This CS-35 DIY module is the most compact current stage module we have in our program. It can make 30 -180Wrms, depending the power Fet types and supplied power voltages.

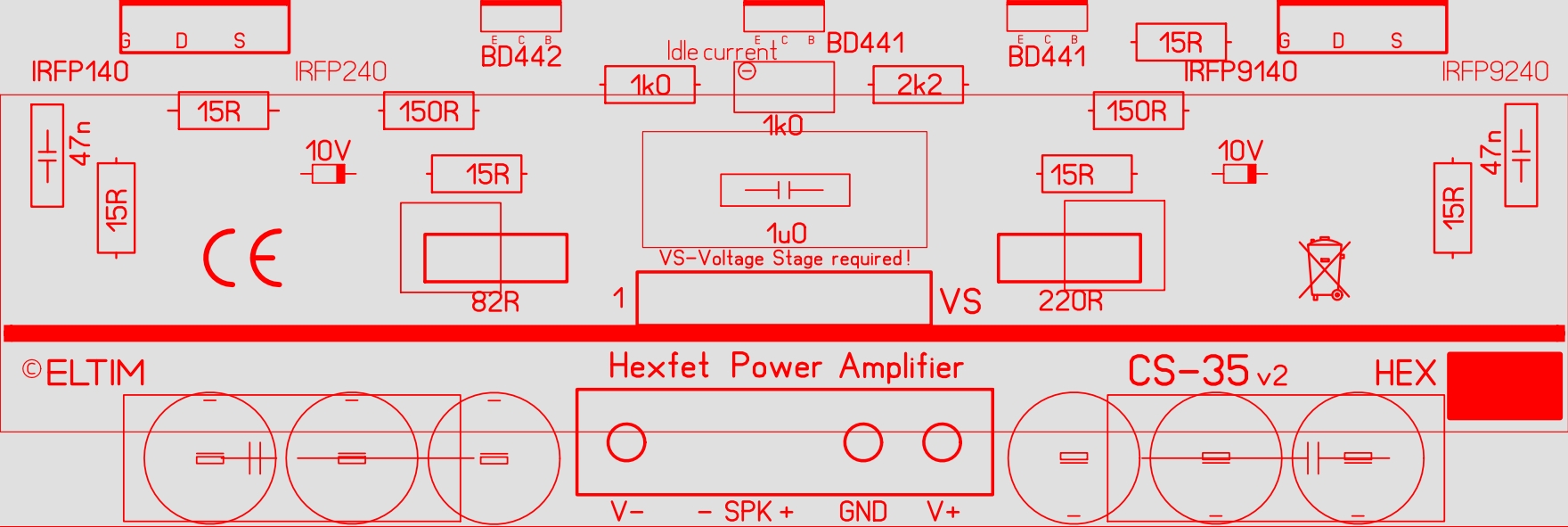

Version for GDS oriented Fet types, mostly Hexfets.

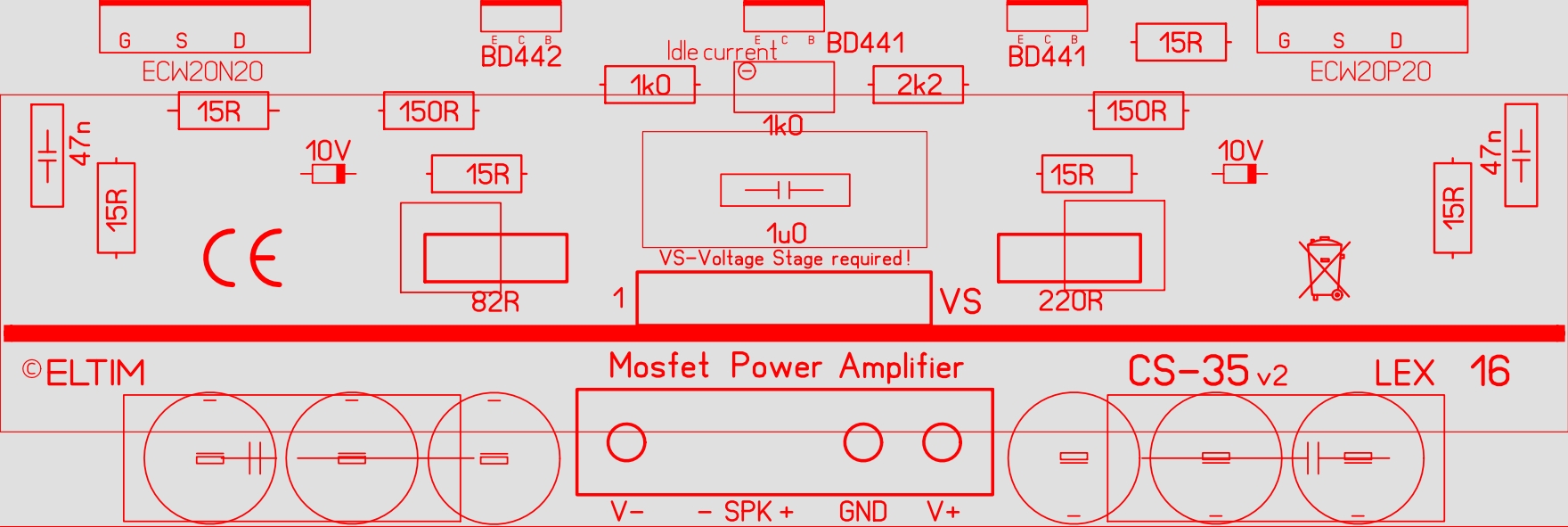

Version for GSD oriented Fet types, mostly Mosfets.

Both are exactly the same, except for the power Fet Drain and Source connections, beeing switched.

The shown Q6 MKP capacitors over the power rails are optional as some other parts are.

You can select these items in the order menu and make it as good as you can afford -)

You can choose from four types of Hexfets / Mosfets.

Hexfets perform in the High-End range, the ultralinear Mosfets in the Reference range:

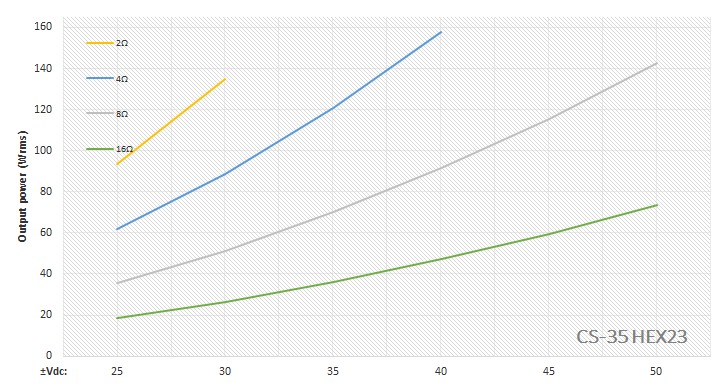

A rugged version with cost effective 23A/100V Hexfets, specialised in low ohmic / 100-150W @ 4 ohms loads.

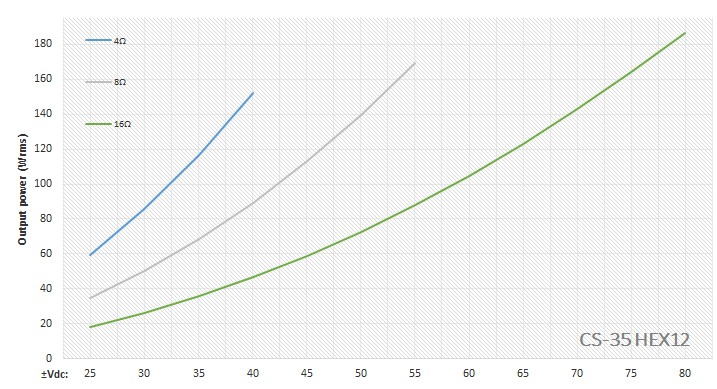

with rugged, 12A/200V Hexfets it is a most cost effective version and

due to its high supply voltage specialised in high ohmic loads up to 180W @ 16ohms loads.

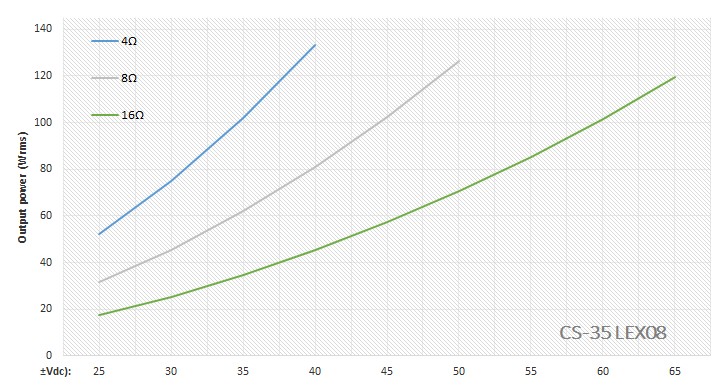

With ultralinear EXICON 8A/200V lateral Mosfets, this is our fastest possible amp due to

ultra low gate capacitance and shortest possible PCB tracks. Snare drum, cymbals, etc. are amazing....

Works perfect as full range, but performs at best in multichannel setups driving mid/high units.

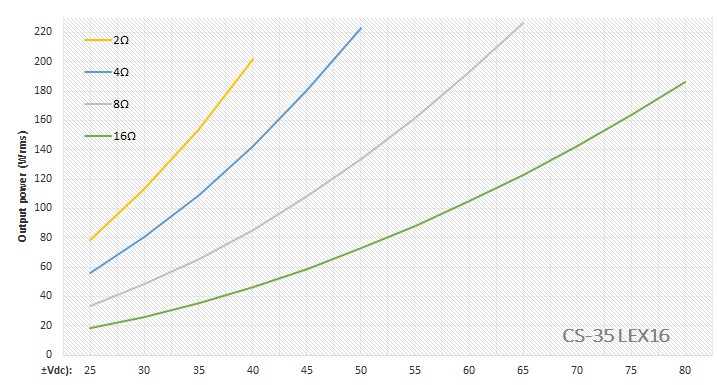

With ultralinear EXICON 16A/200V lateral Mosfets, a very fast amp due to low gate capacitance.

Works perfect as full range, but performs at best in multichannel setups driving bass units.

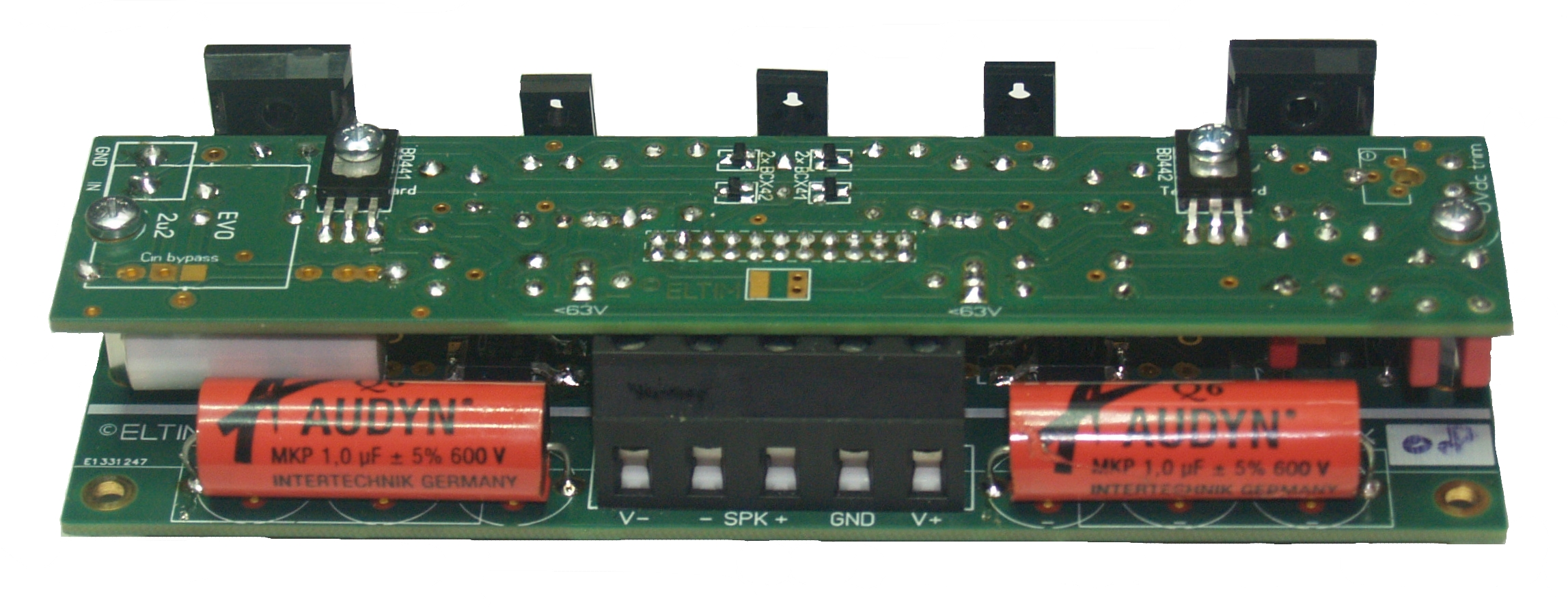

With VS-5 mounted sandwiched on top, it is perhaps the most compact

High-End amplifier pack built with high quality through hole components: 149x50x30/35mm.

You also need one of our VS-input stage modules. VS-5 exactly fits:

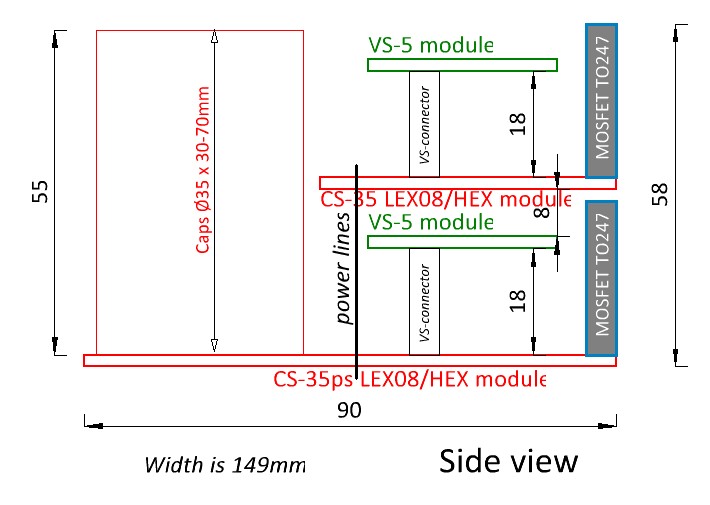

A pack like this also fits on top of a CS-35ps + VS-5, making it a most compact 2- or 3-way amplifier

pack for f.e. active speakers, bridged mode, bi-amping or very small stereo setups.

The power supply part on the CS-35ps is feeding them all then, just connect a transformer:

Extra's:

MODU 3PD02200, heatsink 80x200x40mm, black, 0,67ºK/W
