ELTIM PS-0, Power Supply connecting kit

Basic Power supply connecting kit for CS-modules

ELTIM PS-0, Power Supply connecting kit
€ 23,95 *Prices include VAT € 19,79 excluding VAT €
Manufacturer:  ELTIM
Article code:  PS0kit
0 star(s) in 0 review(s) Write a review

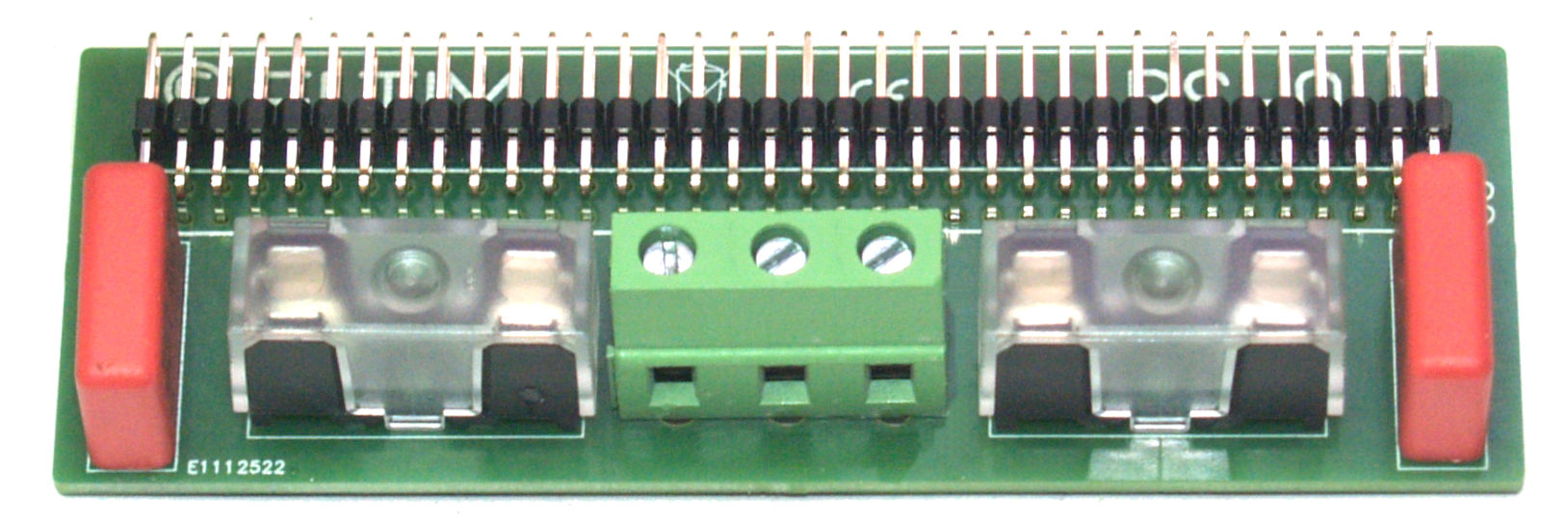

With this PS-0 connecting kit you can connect a regular Power Supply to our VS/CS- amplifier modules.

We supply the kit with an angled (PS-0) as well as with a straight (PS-0 MC) connector.

We need to order it!

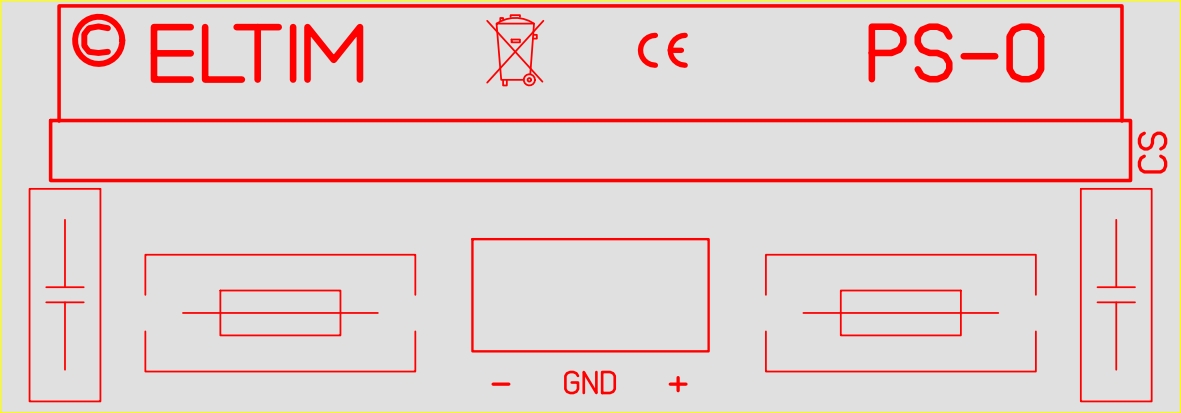

Regular PS-0 version, meant to connect another than ELTIM Power Supply module to our CS-40/80/120/165.
With this all 24 supply connections and 20 ground connections are made correctly.
There are also capped fuses and space for tho nice MKP capacitors.
3-Pole screw terminal for connecting a symmetrical power supply.

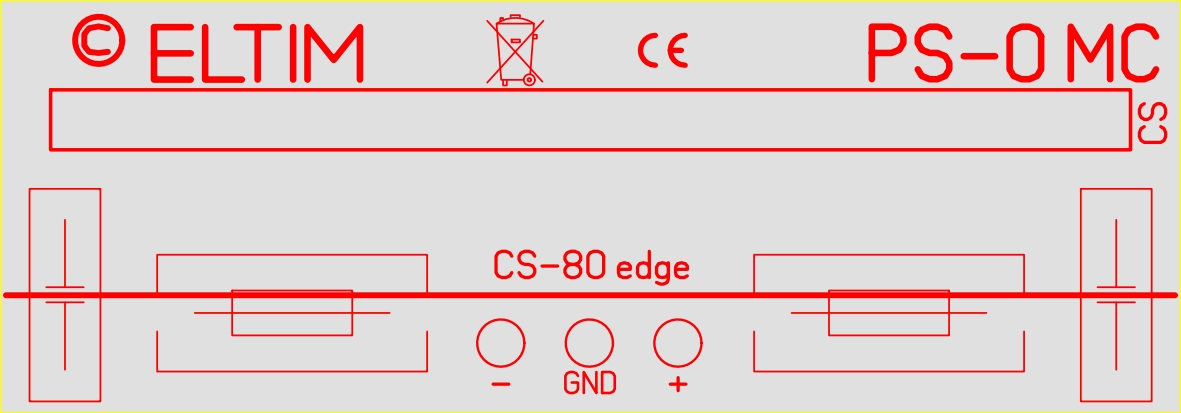

Version for Multichannel setups. Basically the same as above, but with vertical header connector.
PS-0 sticks out just above CS-80/120/165, so three thick copper supply wires can lead just over them ( O-connections)
to all the other modules and the symmetrical power supply. Simple, clean and easy to wire.

In both cases we recommend to mount some supply capacitance on the CS-80/120/165 as well for optimal results.
