ELTIM IO In/out add-on modules

ELTIM Power Amplifier in/output modules:

Our modular setup makes it possible to connect one of the following modules to a side
of a VS-xx/CS-80 combination. Solderpads are then available very close to the chassis connectors,
so then there is hardly any wiring at all in our amplifier.



  • Line input board without extra electronics
  • Mounted left or right of CS-80 modules.
  • Only short wires to connect the line input and
          speaker terminals.

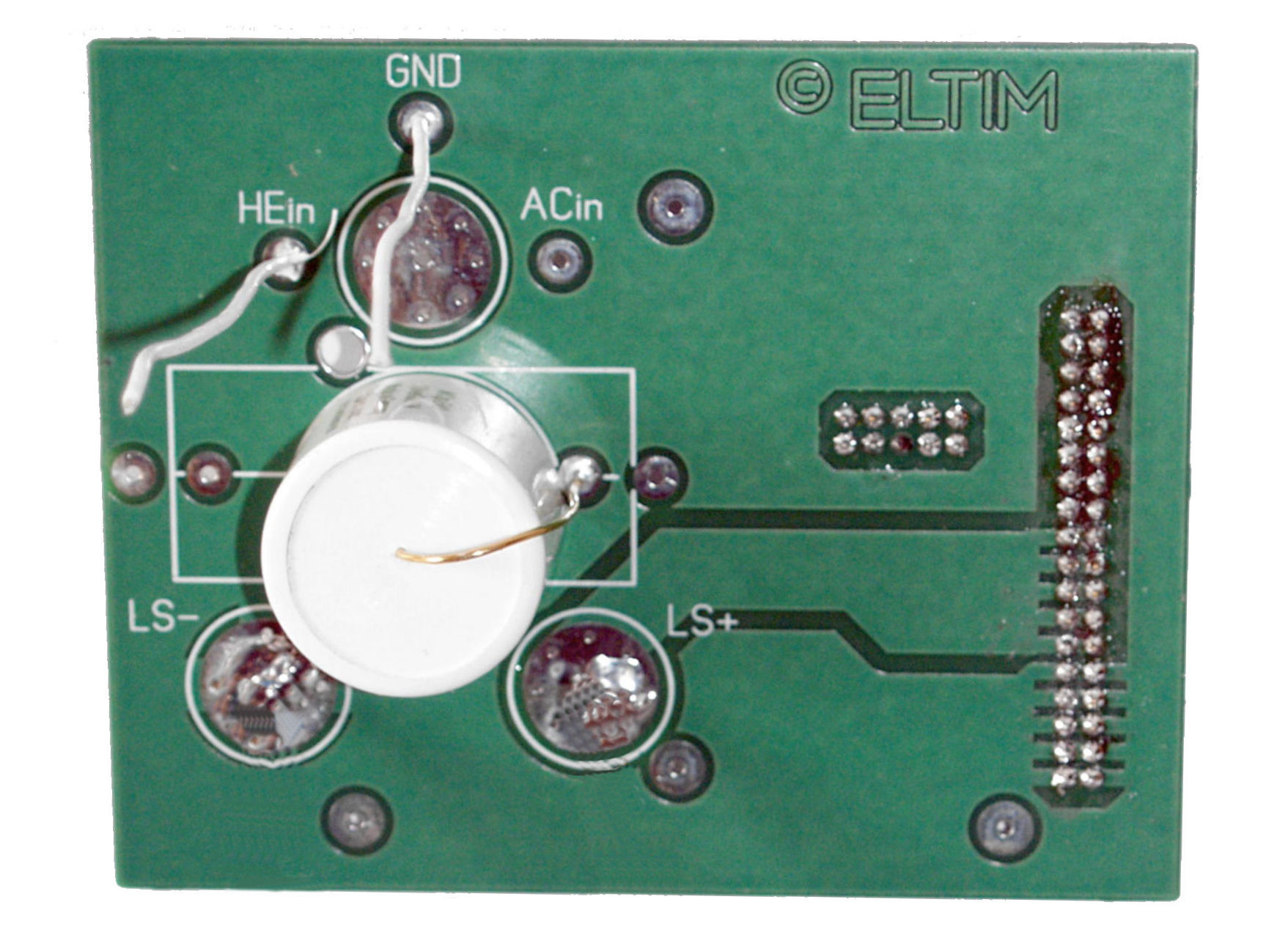

  • A optional high-end input capacitor (2,2uF) fits
    (see picture).
  • Left and right hand boards available.

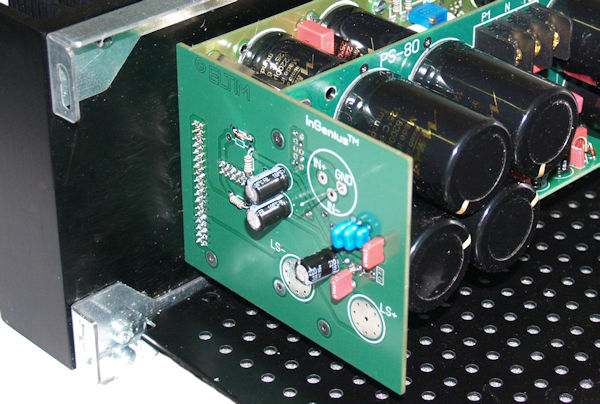

  • Balanced input board with THAT1200 InGenius technique
  • Only short wires to connect the XLR input and
          speaker terminals.
  • We use a very high quality balance to line driver IC
         with a high quality audio transformer-like behaviour.
  • With this IC there are NO input capacitors required.
  • Left hand and right hand boards available.


We can build similar modules for CS-75, CS-100, CS-120, CS-150 and CS-165 as well on request.
