ELTIM amplifier Hall of Fame
Send pictures of your ELTIM amplifier project to us and share it with the DIY community.

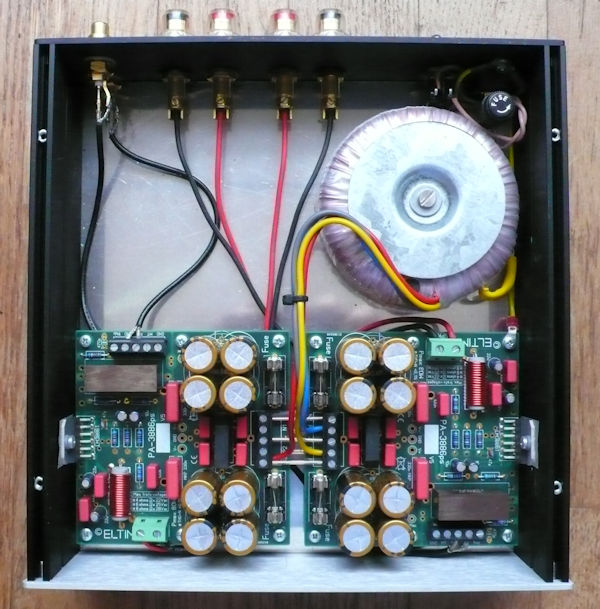

A PA-3886 UFG DIY kit stereo amplifier built by H. Bergman
K. de Boer April 2023
CS-40ps CB, CD40 MB LEX08, VS-20, VR3-30, RC-1

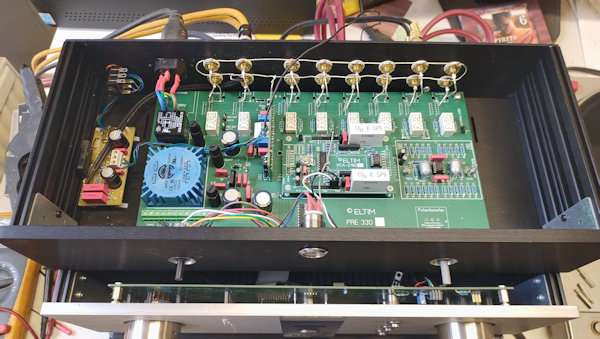

K. de Boer February 2023
Pre330+ preamplifier, VR3-9 voltage regulator, VCA2180 volume control, PA-4989 headphone amp.
Vitalis DIY
CS-40ps, VS-20, VR3-30, BinLout1200

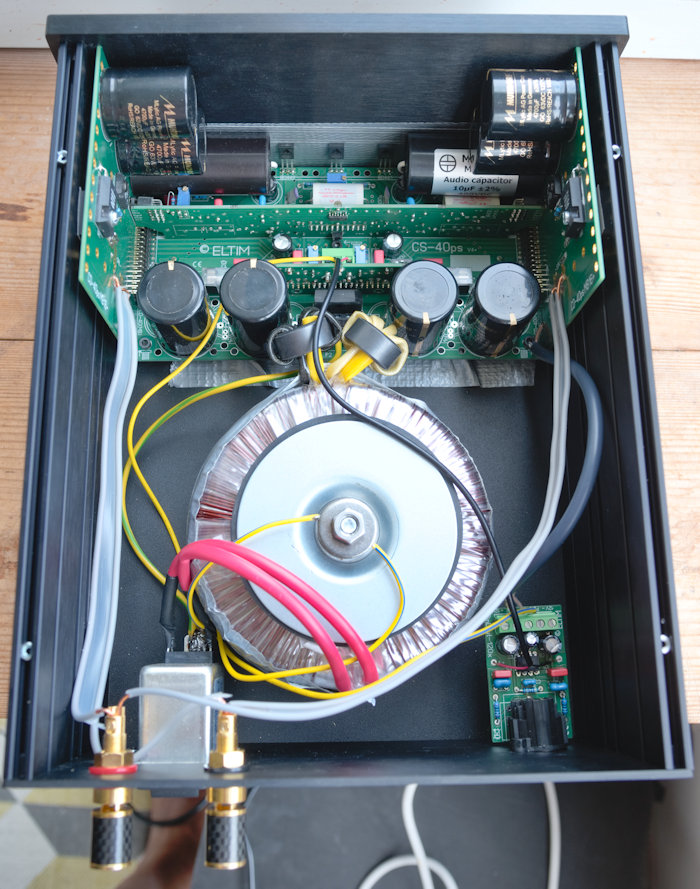

Sharief B. DIY
CS-40ps, VS-20

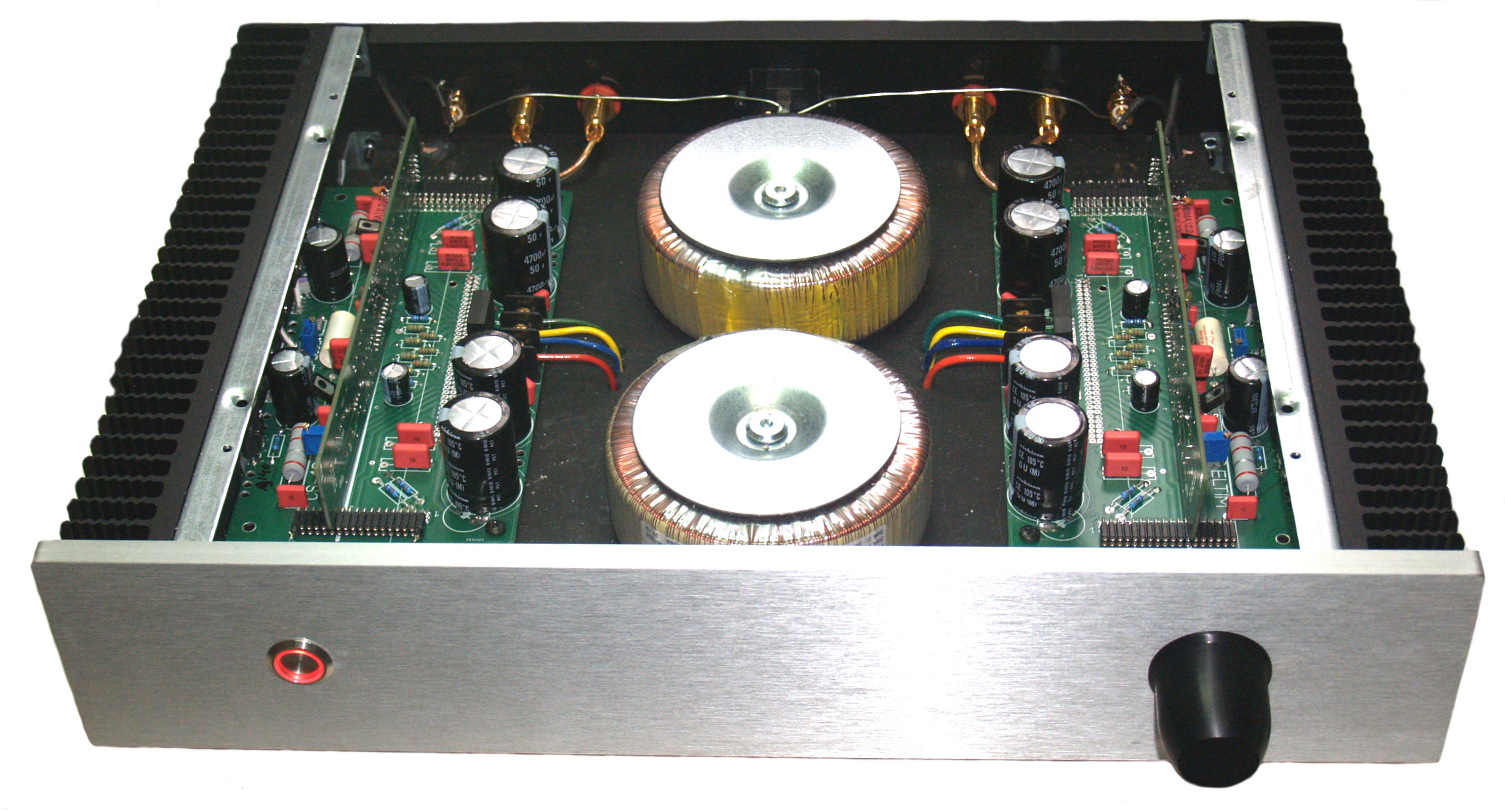

ELTIM built for Hans Kortenbach, Musical Affairs
Low power version with CS-40ps, VS-20, VR3-30

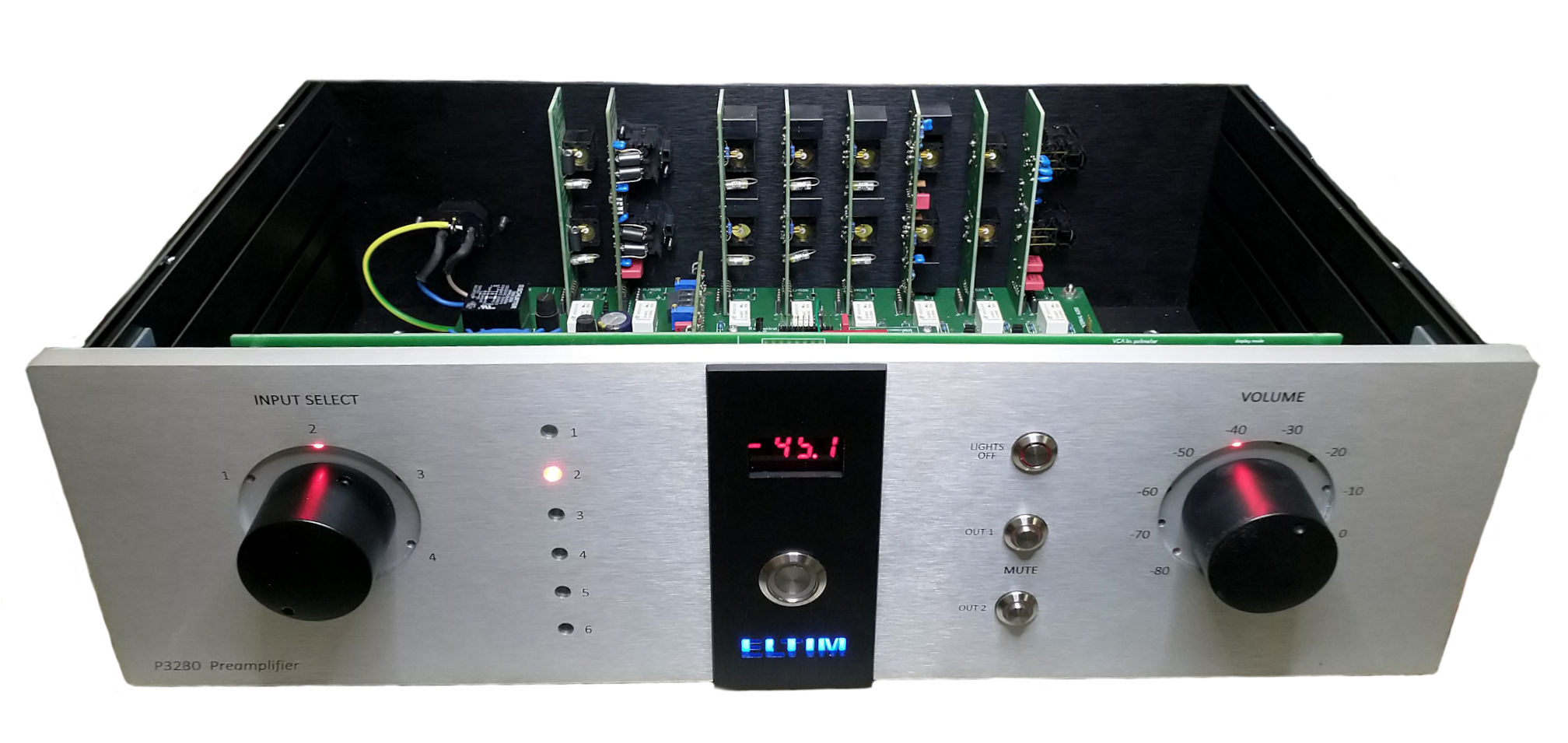

Very first ELTIM built preamplifier
Pre-330+, VCA-2180B, in/output buffers, Frontpanel support PCB.

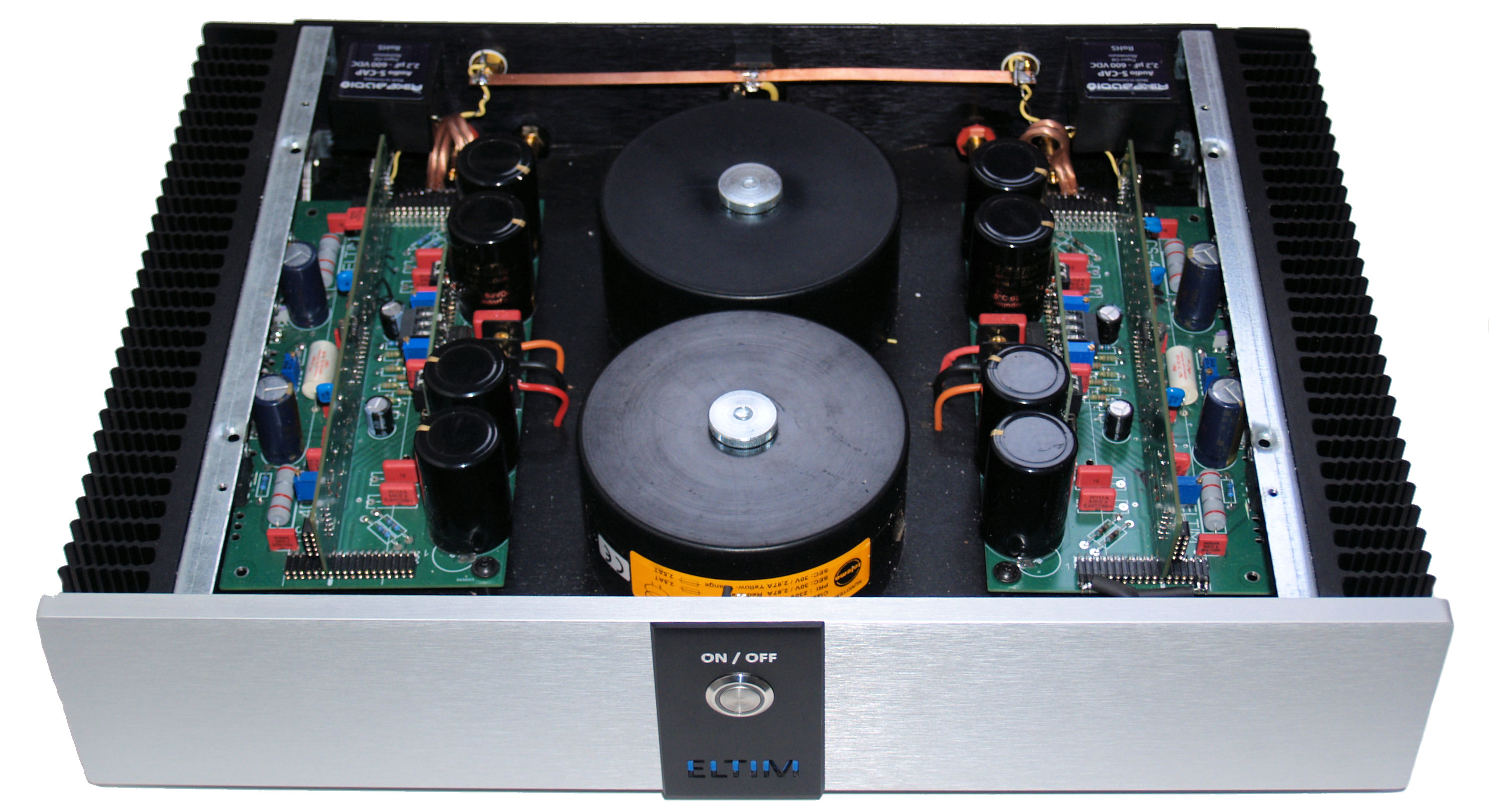

ELTIM built demo amplifier Listening video
The first seconds of compliments are from Rob Meijst, MC Systems.
CS-40ps, VS-20, VR3-30, RIKE input capacitors
Since borrowers found it natural to add/change/break we stopped this activity, sorry.

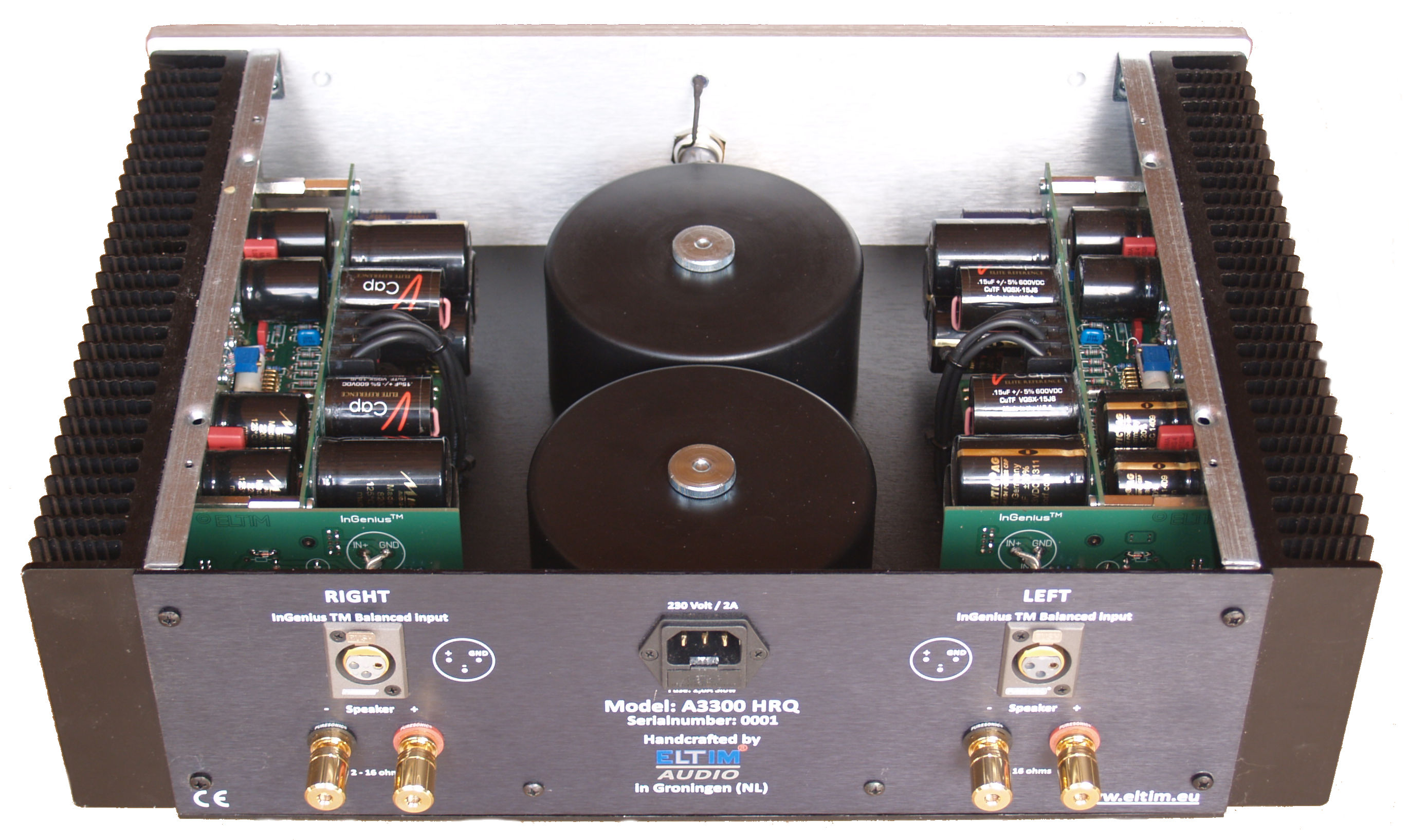

Very first bespoke ELTIM amp #0001
CS-80, VS-20, PS-80, VR-30, IO-80bal

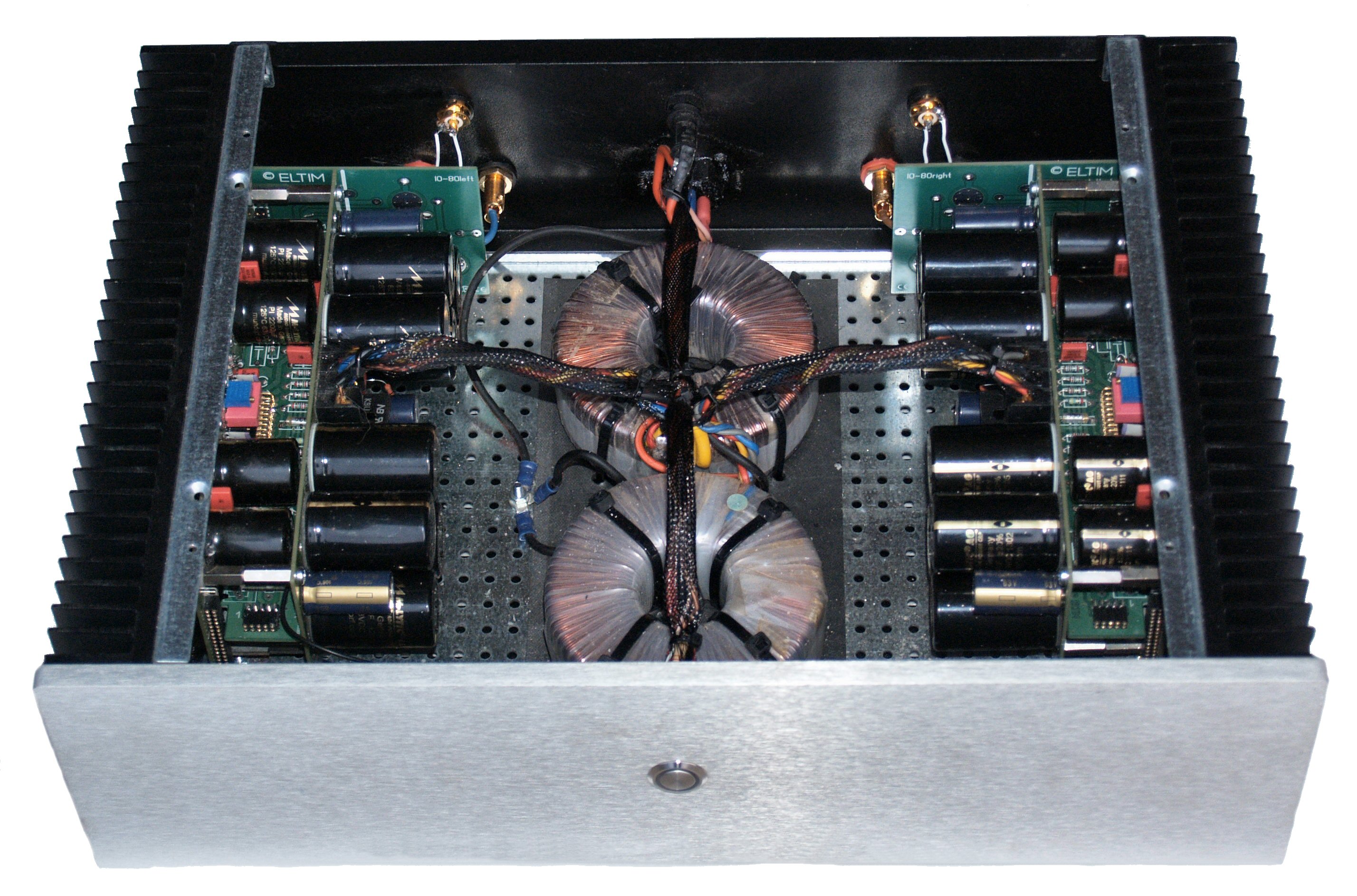

Very first ELTIM built power amplifier
CS-80, VS-20, PS-80
