ELTIM universal input buffer/converter modules


In the winter 2019/2020 we reworked all our buffer modules.
The size increased a bit to 34x55mm, making it possible to mount
a nice input capacitor where required and add extra
power supply parts to all modules. Now you can feed all with up to ±75Vdc!
Now you can also decide for a screw- or RCA/XLR input connector.

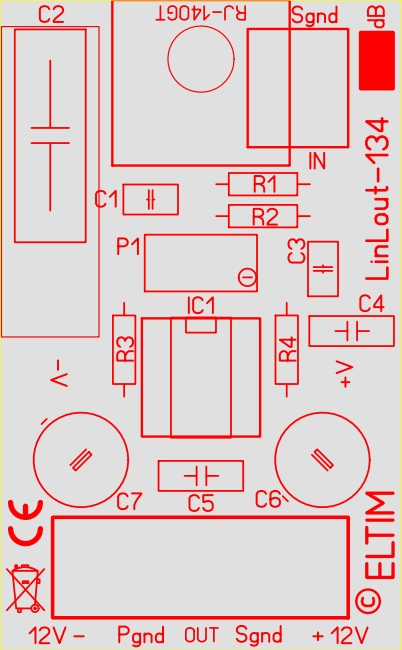

LinLout-134
Line input buffer circuit > line out

Line input buffer circuit, providing a buffered line signal for internal use.

  • Gold plated RJ140GT RCA connectors
  • OPA 134 high quality audiophile opamp IC
  • Milled, gold plated IC socket

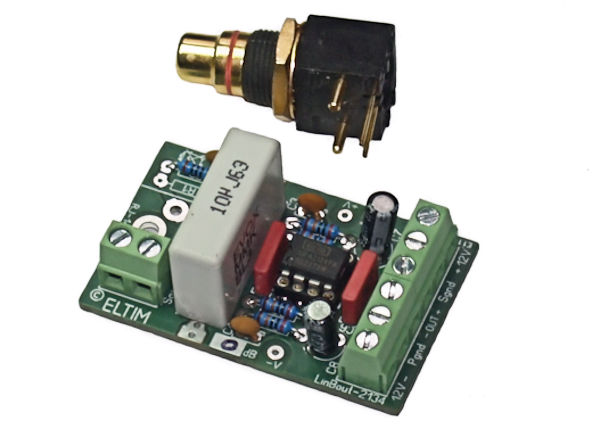

LinBout-2134
Line input buffer circuit > balanced out

Line input buffer circuit providing a buffered balanced signal for internal use. Can also be used for bridged amplifiers providing required counterphased signals.

  • Gold plated RJ140GT RCA connectors
  • OPA 2134 dual audiophile opamp IC
  • Milled, gold plated IC socket

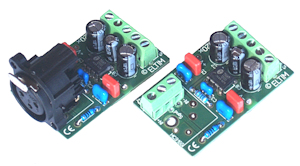

BinLout120x
Balanced input buffer circuit > line out

Balanced input buffer circuit providing a buffered line signal for internal use.

  • High quality MC916G XLR connector
  • THAT 120x high quality IC (SMD)
  • Transformer like behaviour (but better...)
  • Patented InGenius technology



BinLout124x
Balanced input buffer circuit > line out

Balanced input buffer circuit providing a buffered line signal for internal use.

  • High quality MC916G XLR connector
  • THAT 124x high quality IC (SMD)
  • Ultra precision, laser trimmed resistors

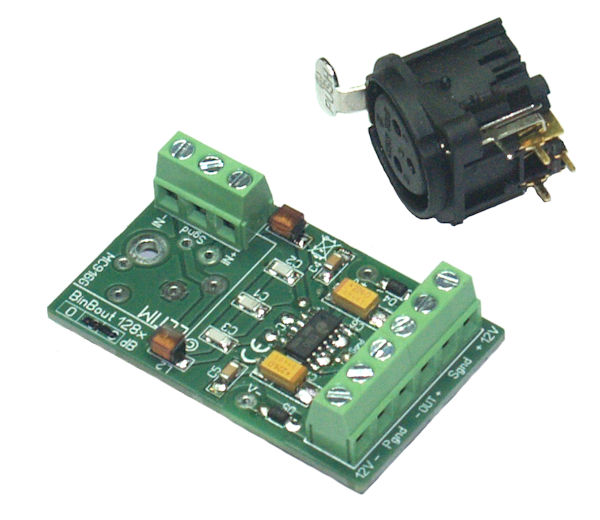

BinBout128x
Balanced input buffer circuit > bal. out

Balanced input buffer circuit providing a buffered balanced signal for internal use.

  • High quality MC916G XLR connector
  • THAT 128x high quality IC (SMD)
  • Ultra precision, laser trimmed resistors

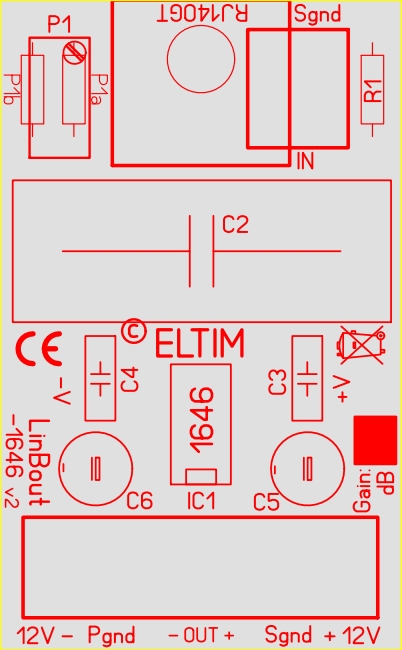

LinBout-1646
Line input buffer circuit > balanced out

Line input buffer circuit providing a buffered balanced signal for internal use.
Also gives 180º signals for bridged amplifiers.

  • High quality RJ140G connector
  • THAT 1646 high quality IC
          (not compatble with other opamp like circuits!)
  • Patented OutSmart technology
