ELTIM Universal output buffer/converter modules

Buffer modules with output connector

With these output buffer circuits you can decide
for a screw- or RCA/XLR output connector.
The input signal is at the bottom screw connector.
Power supply up to ±65Vdc.

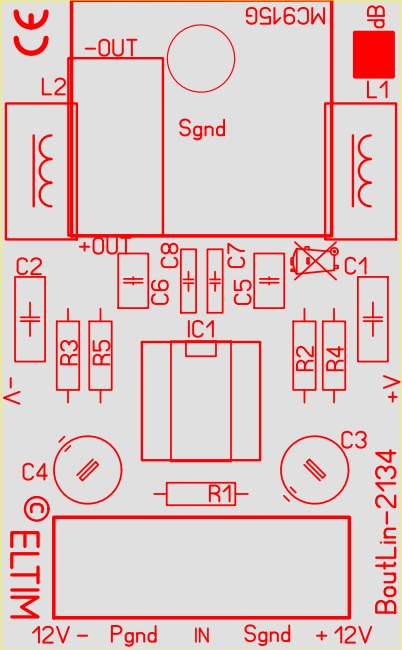

BoutLin2134
Balanced output buffer circuit < line in

  • Buffers/transfers internal Line input
  • Provides a balanced output signal.
  • MC915G gold plated XLRm output connector
  • or 3-pole screw connectors for internal use.
  • OPA 2134 high quality audiophile dual opamp IC
  • Milled, goldplated foot, so you can mount other
          compatible types as well








No
yet


LoutBin134
Line output buffer circuit < balanced in

  • Buffers/transfers balanced internal signals.
  • Provides a line output signal.
  • Gold plated RJ140GT RCA ooutput connector
  • or 2-pole screw terminal for internal use.
  • OPA 134 high quality audiophile opamp IC
  • Milled, goldplated foot, so you can mount other compatible types as well

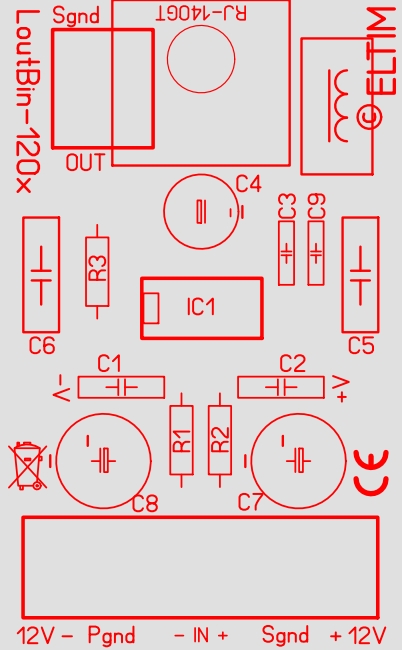

LoutBin120x
Line output buffer circuit <  bal. in

  • Buffers/transfers balanced internal signals.
  • Provides a line output signal.
  • Gold plated RJ140GT RCA output connector
  • or 2-pole screw terminal for internal use.
  •  THAT 120x high quality IC (SMD)
  •  Patented InGenius technology

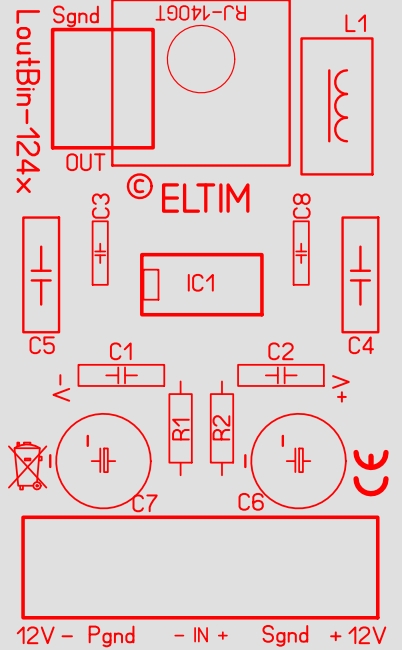

LoutBin124x
Line output buffer circuit < bal. in

  • Buffers/transfers balanced internal signals.
  • Provides a line output signal.
  • Gold plated RJ140GT RCA output connector
  • or 2-pole screw terminal for internal use.
  • THAT 124x high quality buffer IC (SMD)
  • Integrated ultra precision, laser trimmed resistors

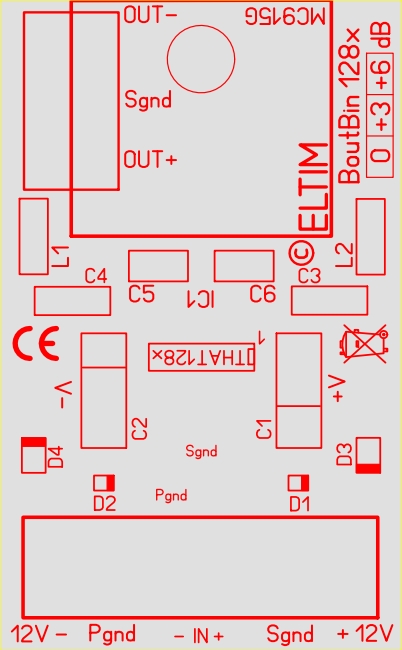

BoutBin128x
Balanced output buffer circuit < bal. in

  • Buffers balanced internal signals
  • Provides a balanced output signal.
  • MC915G gold plated XLRm output connector
  • or 3-pole screw terminal for internal use.
  • THAT 128x very high quality IC (SMD)
  • Integrated ultra precision, laser trimmed resistors

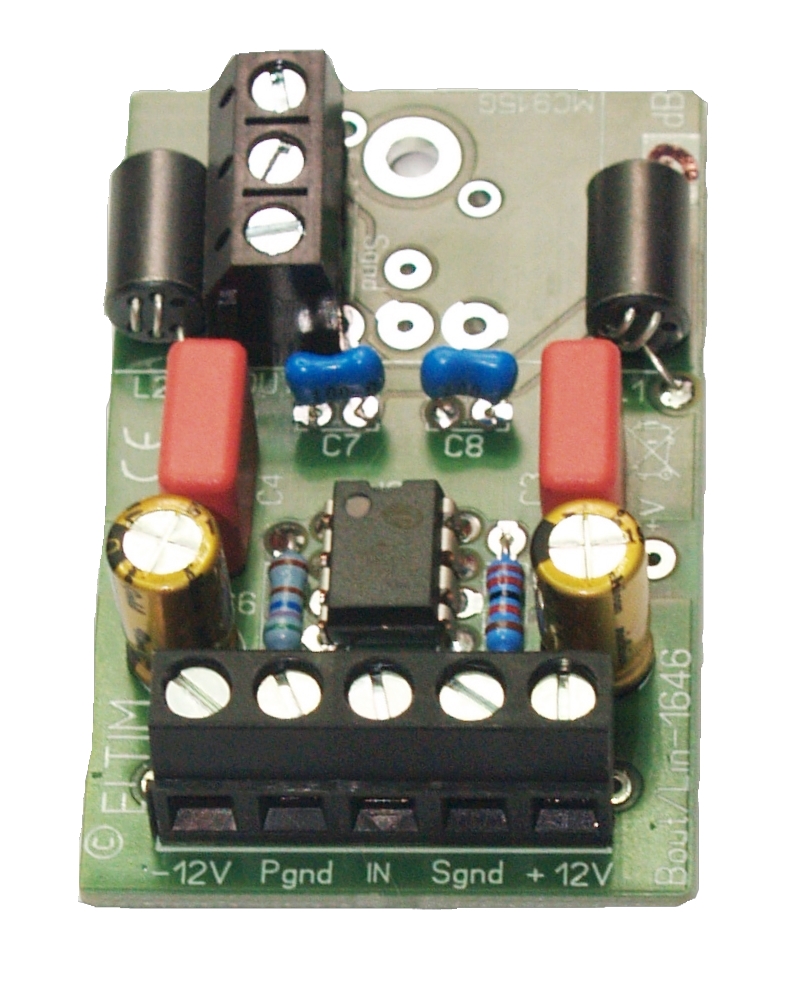

BoutLin1646
Balanced output buffer circuit < line in

  • Buffers/tranfers internal line signals
  • THAT 1646 extreme high quality IC
           (not compatible with regular opamp types!)
  • Patented OutSmart buffer circuit.
  • Providing a balanced output signal.
  • MC915G gold plated XLRm output connector
  • or 3-pole screw terminals for internal use.
  • Capable of feeding long signal lines.
  • MKP and Nichicon "Fine Gold" supply capacitors.
  • 0dB, 3dB or 6dB gain
