ELTIM amplifier Hall of Fame
Send pictures of your ELTIM amplifier project to us and share it with the DIY community.

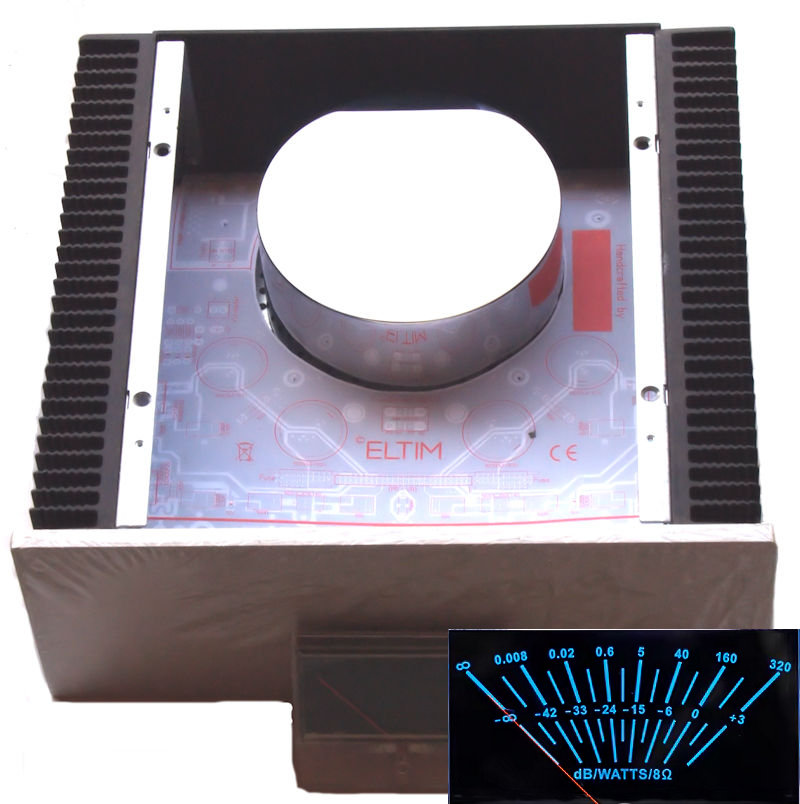

NEW monoblock amplifier design in progress:
Size fit test in MODU Mini Dissipante 330x300mm. Height 80 or 120mm.
The only wiring is from the connectors and transformer to the two PCB's.
Our RC1 (wired 12V) remote control / inrush current limiter module will be mounted invisible.
Our PRE230/330 preamplifer modules are providing the 12Vdc remote control voltage.
Estimated power 200Wrms or 300Wrms+, depending on Mosfet types and transformer mounted.
Unfortunatelly this project came to a halt due to unavailability of EXICON P-type mosfets.....I
We will proceed as soon as the Mosfets are available again (> sept. 2026....)

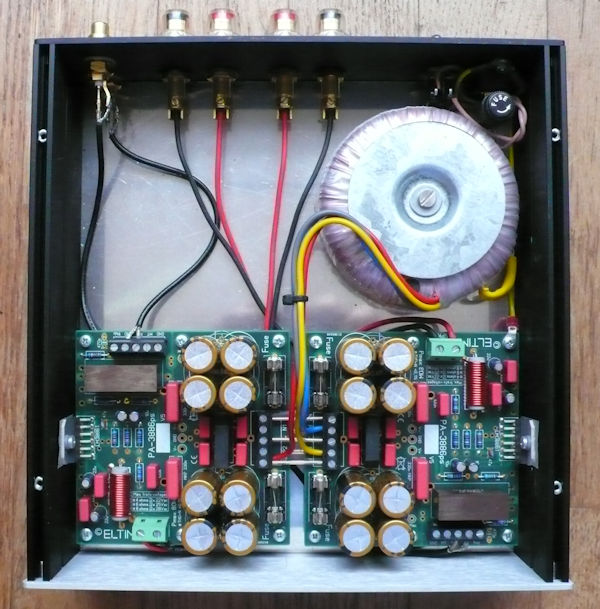

A PA-3886 UFG DIY kit stereo amplifier built by H. Bergman

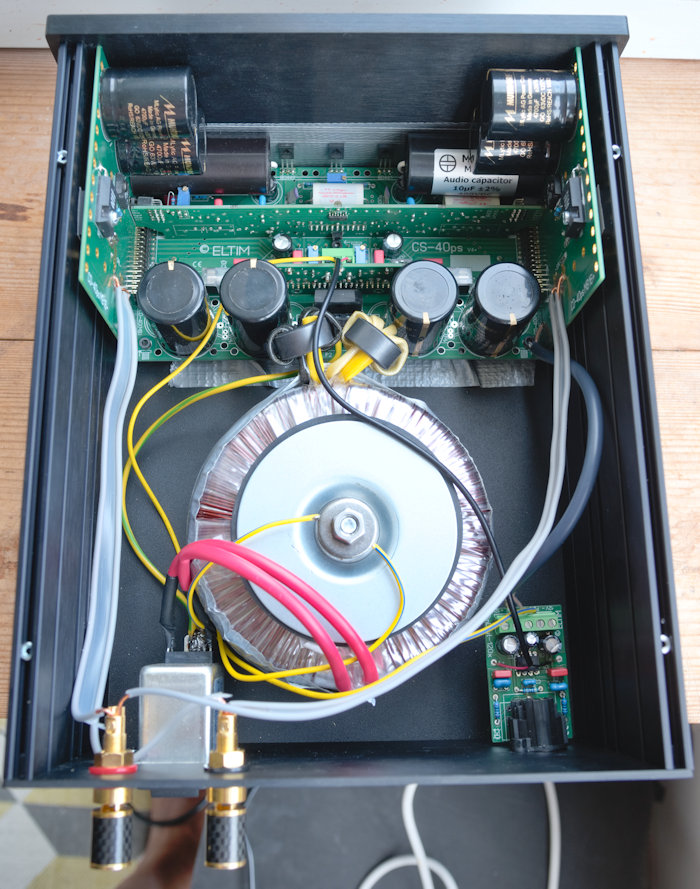

K. de Boer April 2023
CS-40ps CB, CD40 MB LEX08, VS-20, VR3-30, RC-1

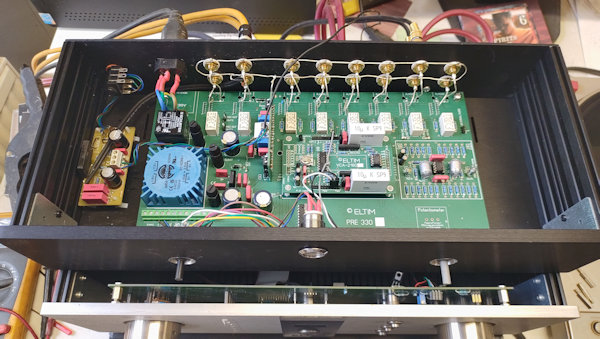

K. de Boer February 2023
Pre330+ preamplifier, VR3-9 voltage regulator, VCA2180 volume control, PA-4989 headphone amp.
Vitalis DIY
CS-40ps, VS-20, VR3-30, BinLout1200
Sharief B. DIY
CS-40ps, VS-20
ELTIM built for Hans Kortenbach, Musical Affairs
Low power version with CS-40ps, VS-20, VR3-30

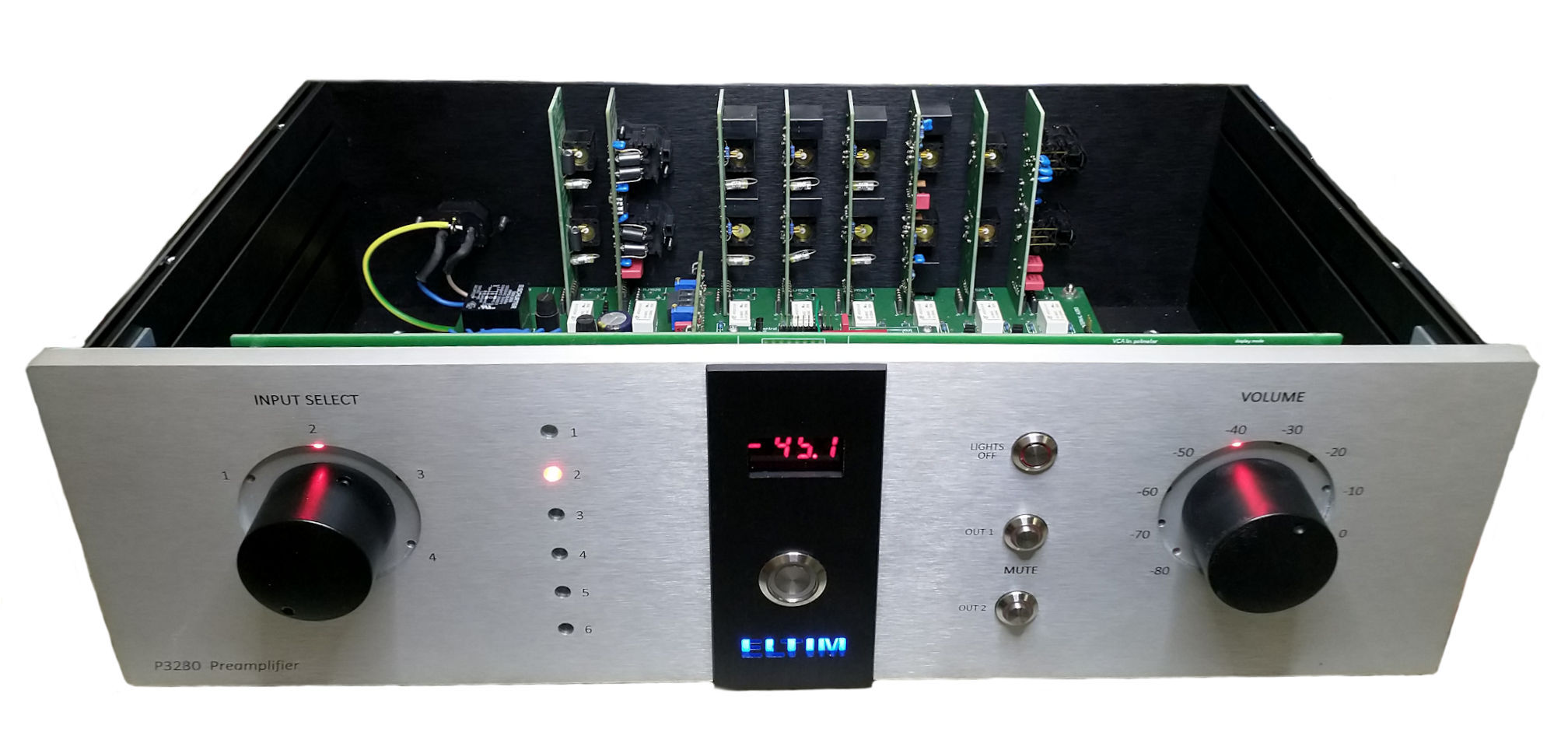

Very first ELTIM built preamplifier
Pre-330+, VCA-2180B, in/output buffers, Frontpanel support PCB.
ELTIM built demo amplifier Listening video
The first seconds of compliments are from Rob Meijst, MC Systems.
CS-40ps, VS-20, VR3-30, RIKE input capacitors
Since borrowers found it natural to add/change/break we stopped this activity, sorry.

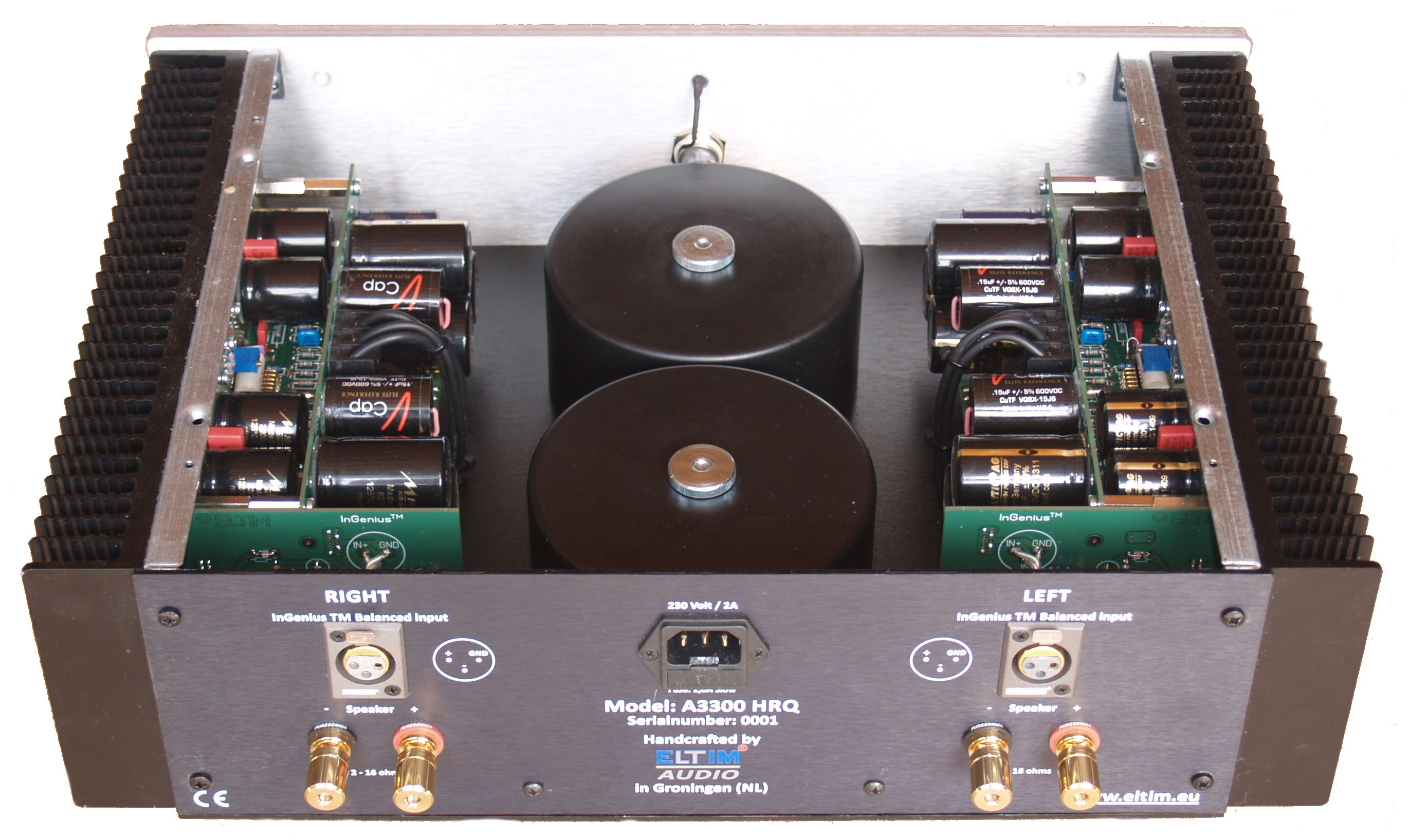

Very first bespoke ELTIM amp #0001
CS-80, VS-20, PS-80, VR-30, IO-80bal
Very first ELTIM built power amplifier
CS-80, VS-20, PS-80
