TINYSINE TSA7010, Digital Bluetooth Audio Receiver Board(I2S

Bluetooth receiver with I2S + DAC outputs and rod antenna

TINYSINE TSA7010, Digital Bluetooth Audio Receiver Board(I2S
€ 32,80 *Prices include VAT € 27,11 excluding VAT €
Manufacturer:  TINYSINE
Article code:  TSA7010
0 star(s) in 0 review(s) Write a review
  • Size: 42*32*11mm
  • Bluetooth 5.0
  • Apt-X supported
  • Stereo receive
  • Effective transmission distance: 10-15m
  • Micro USB female port for powering the receiver from any USB power source(5VDC)
  • Compatible with all Bluetooth devices that support media audio, including iPhone
We need to order it!

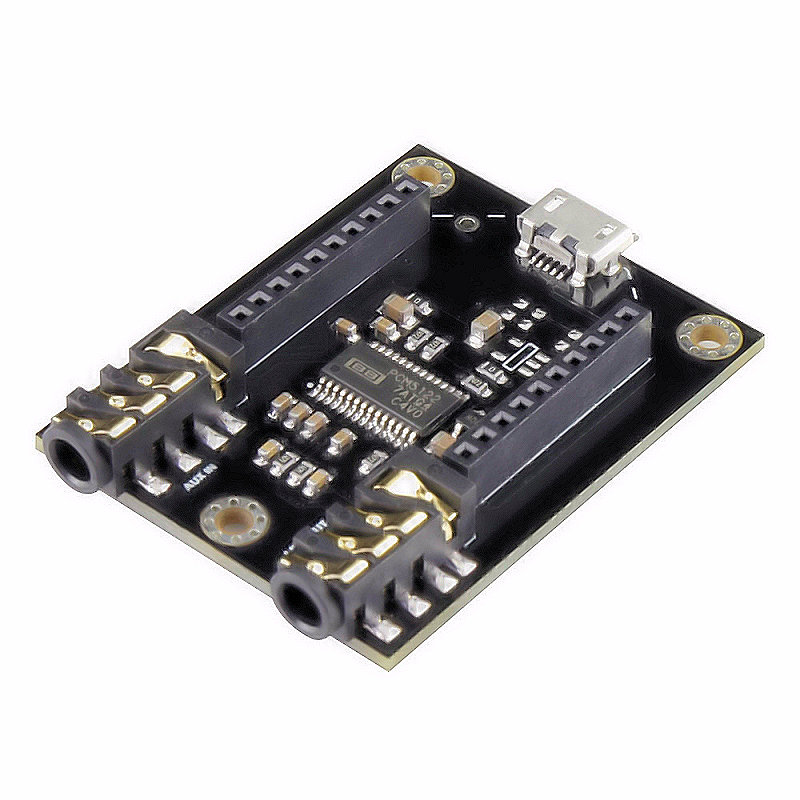

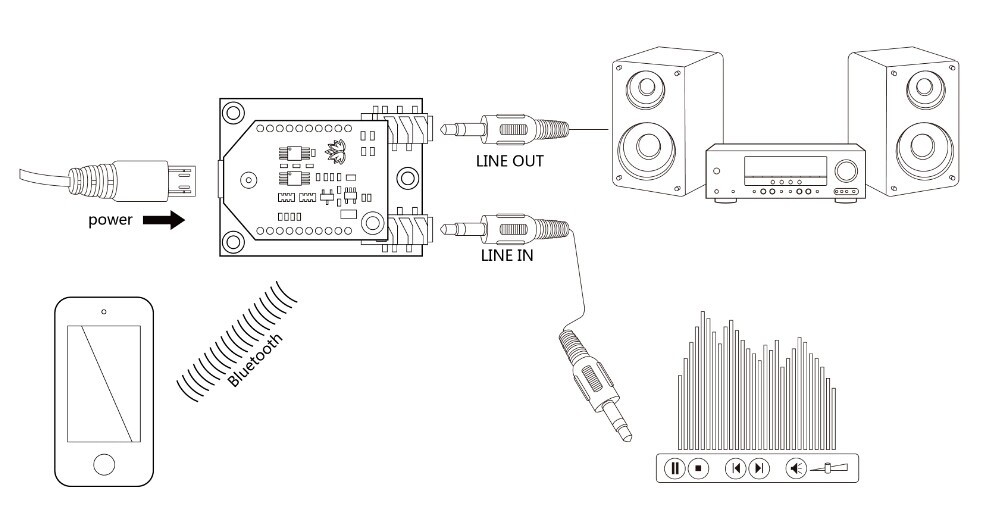

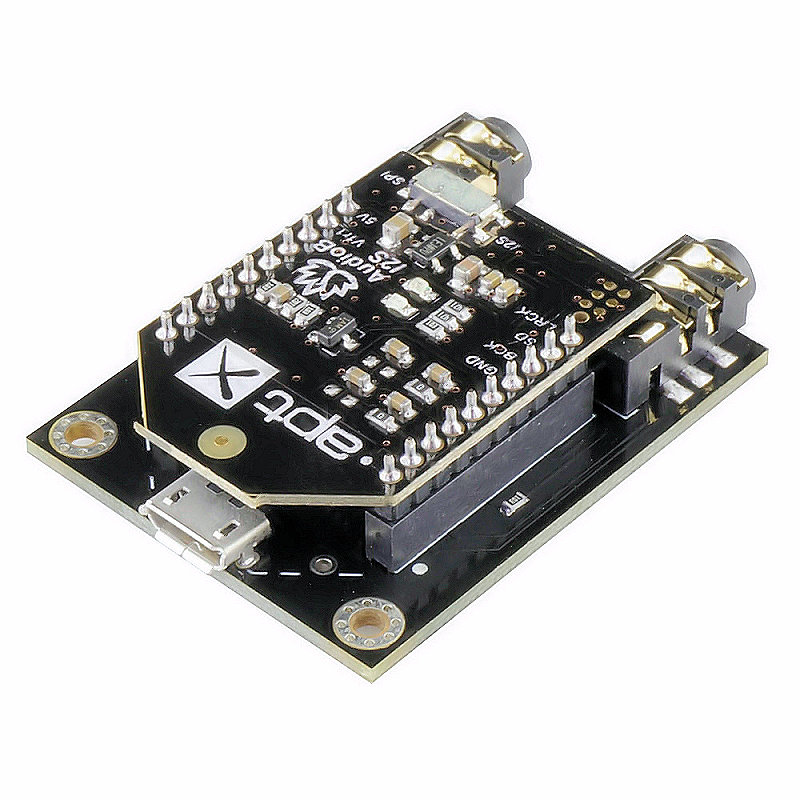

This digital Bluetooth music receiver connects to the Line-In or Aux input on your home audio system. You can then stream audio from your Bluetooth enabled cell phone or mp3 player to your home audio system. Enjoy the convenience of having your music source in the palm of your hand and listening to it through your home stereo. It comes with a I2S output digital AudioB plus Bluetooth module, and I2S digital output. Music resampling frequency is 48KHz. And it supports Apt-X, and it is based on CSRA64215. The base board is a DAC(PCM5122PWR) board which convert the I2S digital audio to analog output.
