TINYSINE TDS7499B, 2 x 100W Class D Bluetooth Audio Amplifie

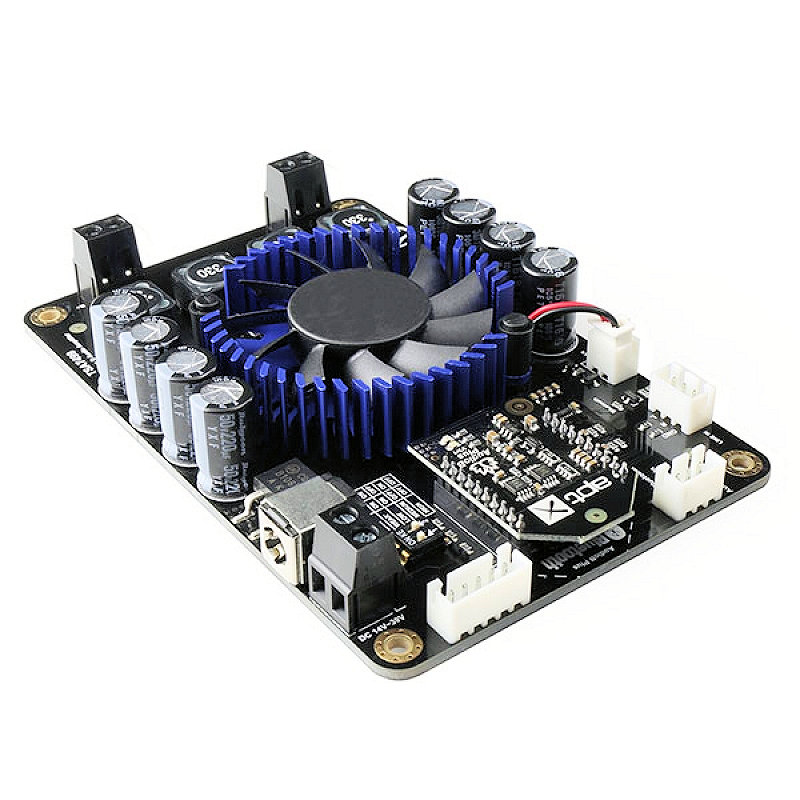

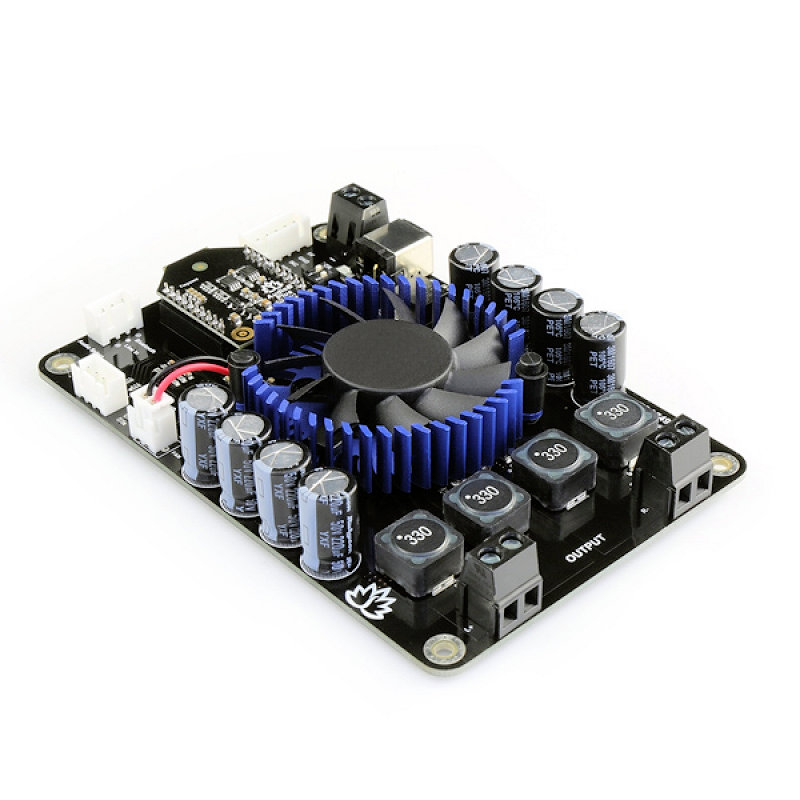

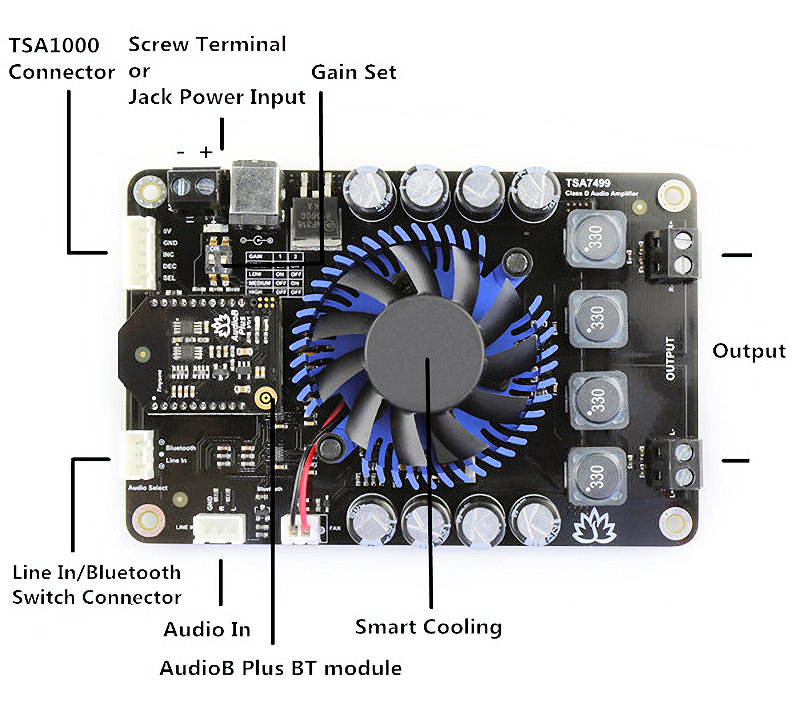

TSA7499B are designed for factory or DIY user. Bluetooth/LINE IN select switch and audio input port are designed as JST connectors. So, user can install this amplifier board in a box and connect an external switch and RCA/3,5mm audio jack plug to make their own audio amplifier. TSA7499B can also connect with our TSA1000 external audio volume control board. People can adjust the audio volume by rotating a real knob. TSA7499B is a 2x100W audio amplifier board with a new AudioB plus Bluetooth module that supports Apt-X. It's integrated ST high performance TDA7498 which support dual channel audio amplification. Both of the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC14V-39V* power supply. It has a smart cooling system, the fan does not work in normal cases to reduce the noises. The fan only starts when the chip temperature > 65°C. It's perfect for your Hi-Fi application, the audio source can be cable input or Bluetooth. You may wish to pair with a mobile phone or a computer, etc.. Power the amplifier board. Use your phone or PC, etc. to search for a new Bluetooth device. The module will appear as "TSA7499B". You don't need a PIN, pair it and then you can play music.
