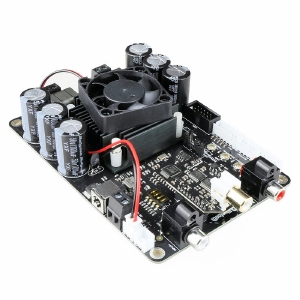

TINYSINE TSA8802C, 2 x 100W SPDIF Coaxial+DSP Audio Amplifie

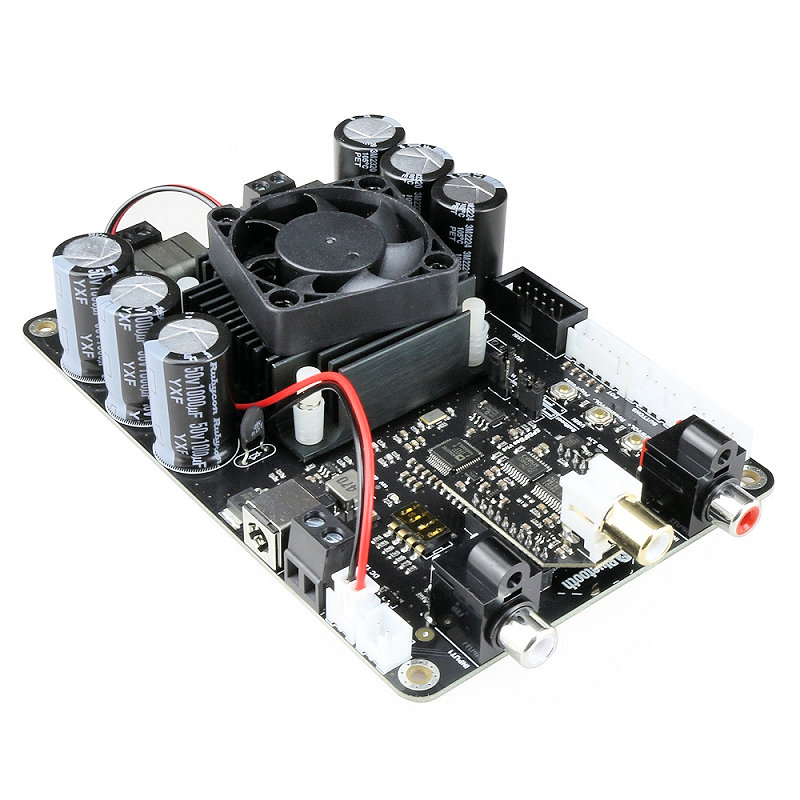

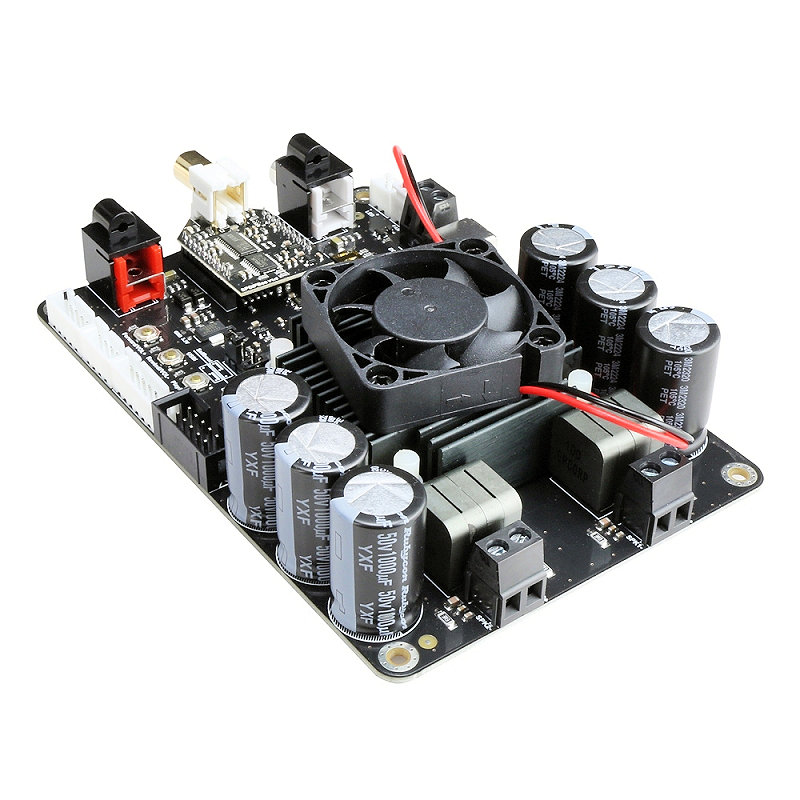

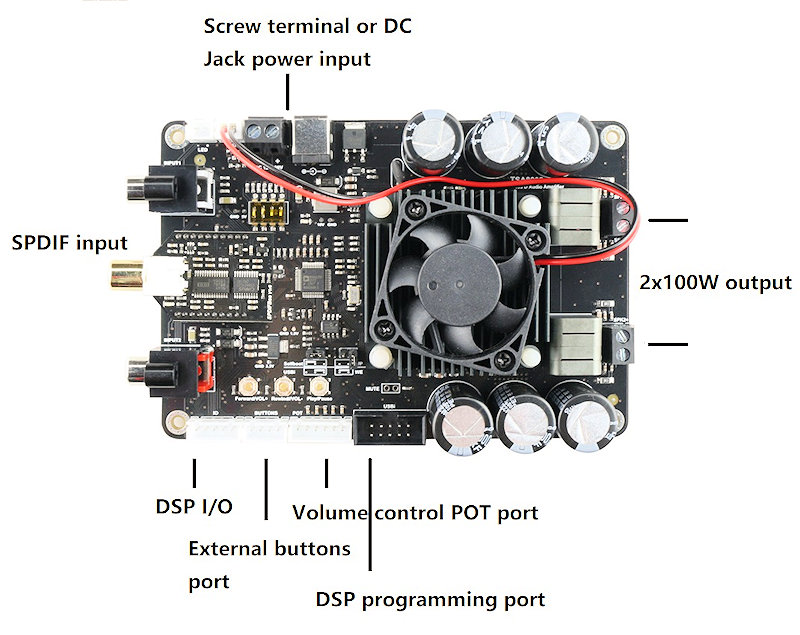

TSA8802C 2x100W 2 channels SPDIF+DSP digital amplifier board with a SPDIFBee receiver module. SPDIFBee convert the SPDIF signal to I2S signal and output to the Analog Devices ADAU1701 DSP chip. TSA8802C is a very flexible DSP/DAC/Amplifier combination board. It has perfect class-D structure (based on Texas Instruments TPA3221) and 2 channels have 100W power output. All the channels are capable of outputting nominal power simultaneously and continuously. This board can be powered by any DC12V-30V power supply. It can be used to drive any 2Ω,4Ω or 8Ω passive speakers.

The main DSP chip on this amplifier board is ADAU1701. It has a default DSP program loaded. Customers can adjust the gain, bass, midrange and treble in the DSP program. It also has a debug port for Sigima Studio, and users can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.
