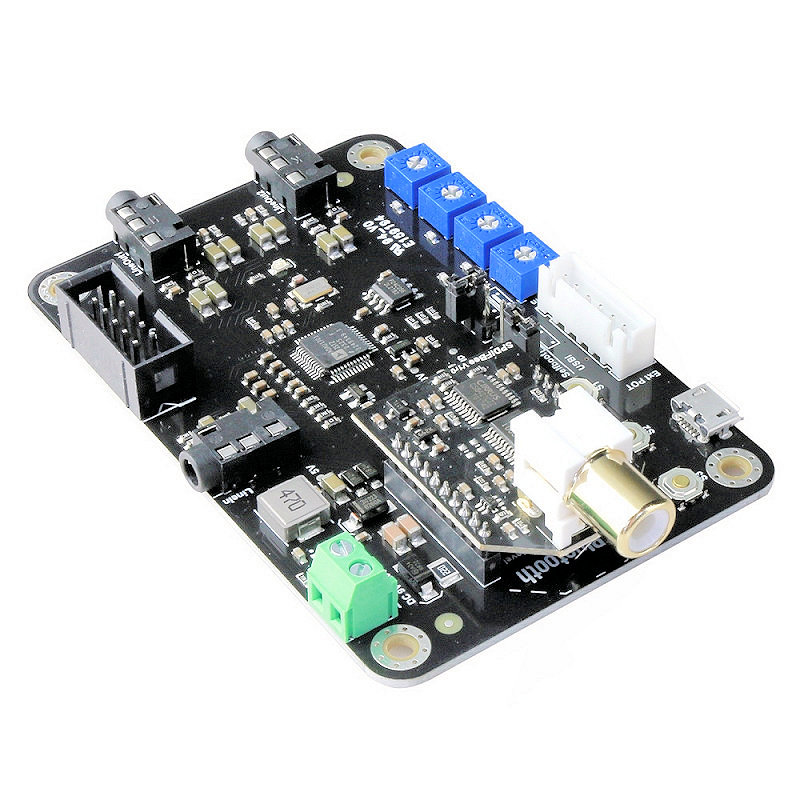

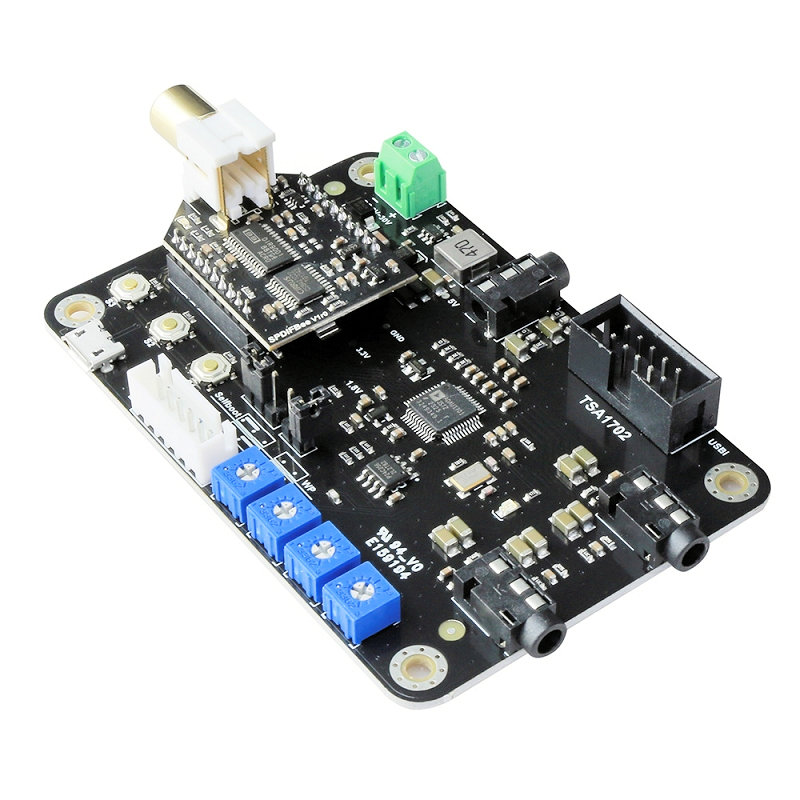

TINYSINE TSA1702C, SPDIF Coaxial + DSP Audio Receiver Board

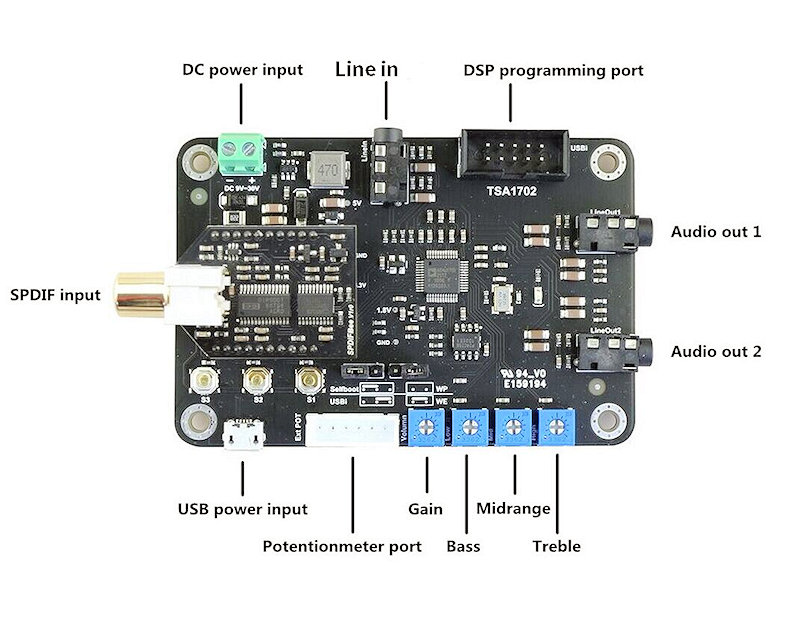

TSA1702C is a SPDIF + DSP audio receiver board with a SPDIFBee receiver module. SPDIFBee convert the SPDIF signal to I2S signal and output to the ADAU1701 DSP chip, it can accept different sampling rates digital audio source, from 16bit 44.1KHz to 24bit 96KHz. TSA1702C can be powered by a microUSB cable or any DC9V-30V power supply. The main DSP chip on this module is Analog Devices ADAU1701. The application range from active loudspeaker concepts (digital 3 way 3 unit, 2 way 2 unit crossover, bass enhancement, etc.) and realize the transformation from 2.0 to 2.1. It has four potentiometers and with default program loaded. Customers can adjust the gain, bass, midrange and treble. It also has a debug port for Sigima Studio, and users can program this module with our USBi programmer to get more functions that include equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc.
