ELTIM-40mb, monoblock power amplifier / power supply module

Aprox 200Wrms, incl. on board power supply.

ELTIM-40mb, monoblock power amplifier / power supply module
€ 459,00 *Prices include VAT € 379,34 excluding VAT €
Manufacturer:  ELTIM
Article code:  ELTIM-40mb
0 star(s) in 0 review(s) Write a review
Technical specifications:

Frequency range:
DC - >180kHz within 0,2dB
-3dB point:
> 450kHz
In-out phase shift:
<0,5º (20-16000Hz), -3º@20kHz
Distortion figure (THD):
< 0,001%   (1W/1kHz/8ohm)
< 0,002%   (80W/1kHz/8ohm)
Slew rate:
> 65V/uS  (@ +/- 30V). Limited by RF-input filter on VS-module.
Harmonics:
<< -60dB, nonspecific, see graph right below. Ignorable
Damping factor:
> 250 (depending on power Mosfets and supply capacitors used)
Input voltage:
1 Volt
Input impedance:
47kOhm
Output power:
30-200Wrms, depending on model and supplied voltages.
Supply voltage:
Dual secondary transformer, depending on required power.
Dimensions:
209x104x80/120mm, height depends on model.
We need to order it!

Ready built and tested ELTIM-40mb Monoblock power amplifier module with preselected VS/CS/CD/VR modules combination. You can select two quality levels above.

Compared to the ELTIM-40ps version is has some extra's:
  • There is always a Voltage Regulator on board, feeding the input stage with ±30Vdc, improving sound quality.
  • On the extra CD-modules extra 2x one (HE) or 2x two (REF) electrolytic capacitors are added.
  • If you like you also could mount two serious quality (large) MKP capacitors over the powerlines there (not included).

The shape of this pack exactly fits MODU Galaxy 230x280mm cabinets. HE version fits in 80mm high, the REF version in 120mm high types.
The on board power supply is capable to deliver over 200W.
ELTIM-40mb REF version


Module quality/
Parts used
High-End (HE)
Reference  (REF)
Input module:
Input capacitor:

Output Module:
Power Mosfets
None are on CD-modules
Electrolytic capacitors
4x  NICHICON LKG Audio Grade, 10.000uF/63V, 105º
4x   MUNDORF MLGO Long Life, Audio Grade, 10.000uF/63V, 125º
Idle current capacitor
Power resistors
5%, low induction
1%, induction free
Other resistors
Any MOX type 1%
DALE RN60, military grade

Monoblock add-on modules:
CD-40ps MB08   (80mm)
CD-40ps MB16    (120mm)
Mosfets:
8A / TO247, 200V
16A / TO264, 200V
Extra capacitors:
2x  NICHICON LKG Audio Grade, 4700uF/63V, 105º
4x   MUNDORF MLGO Long Life, Audio Grade, 4700uF/63V, 125º

Voltage Regulator module:
VR3-30  Regulates VS-module supply down to ±30V



PCB's:
Eurocircuits (EU) made, FR4+, 2x35um, tin plated solder isles
Solder
Any regular solder


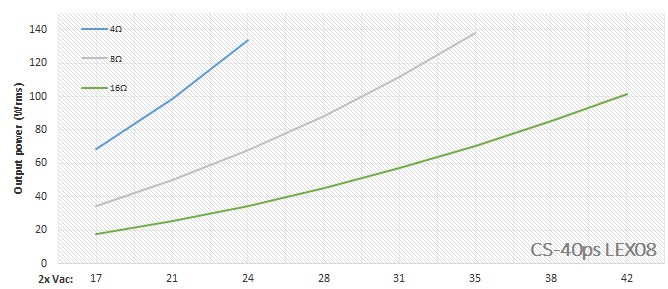

ELTIM-40ps HE version power / supply graph with 8A Exicon Mosfets

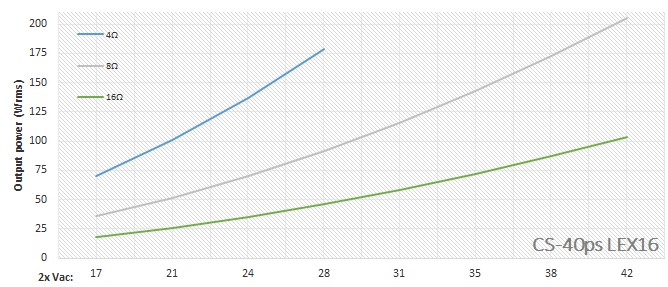

ELTIM-40ps REF version power / supply graph with 16A Exicon Mosfets

Aquire a transformer with two secondary windings, matching to the required power
as shown in the graphs horizontal bars. F.e. 2x 24Vac gives around 70Wrms in 8ohms.


Prototype picture, final versions differ a bit, but shape is the same !

Extra's:

TOROIDY TTSA0300, Audio Grade toroidal transformer, 300VA

TOROIDY TTSA0300, Audio Grade toroidal transformer, 300VA
300VA, Ø130x44mm, encapsulated in mylar tape, electric shielded.

€ 117,50 € 97,11 excluding VAT
Details
TOROIDY TTS0300, toroidal transformer, 300VA

TOROIDY TTS0300, toroidal transformer, 300VA
300VA, Ø130x44mm

€ 71,90 € 59,42 excluding VAT
Details
TOROIDY TTSAS0300 Supreme Audio Grade toroidal trafo, 300VA

TOROIDY TTSAS0300 Supreme Audio Grade toroidal trafo, 300VA
300VA, Ø150x65mm, encapsulated in stainless steel box, electric and electromagnetic shielded.

€ 221,30 € 182,89 excluding VAT
Details
MODU Galaxy 1NGX288, 10mm silver front, 230x293x82mm

MODU Galaxy 1NGX288, 10mm silver front, 230x293x82mm
Internal 210x280x80mm, front 240x90x10mm, 1mm steel top/bottom panels

€ 66,55 € 55,00 excluding VAT
MODU Galaxy 1NGXA288N-3U, 10mm black front, 230x293x124mm

MODU Galaxy 1NGXA288N-3U, 10mm black front, 230x293x124mm
Internal 210x280x120mm, front 240x130x10mm, full aluminium, 2mm top/bottom

€ 91,96 € 76,00 excluding VAT
